About the product

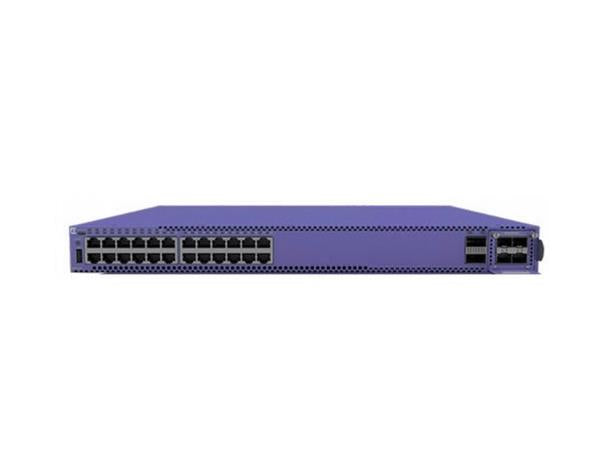

The 5520 Series is a family of high-performance, feature-rich edge and aggregation switches designed for the next-generation digital enterprise. Available in 24 and 48-port 1 Gigabit models, 1/2.5/5 Gigabit multi-rate models, as well as, a 24-port 10 Gigabit model, the 5520 Series provides end-to-end secure network segmentation and advanced policy capabilities that can be deployed across a range of edge, aggregation, and wiring closet environments. As a universal hardware platform, the 5520 offers a user-selectable choice of Extremes flagship switch operating systems for a uniquely flexible platform.
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | 5520-24T |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 31 |
| Data Link Protocol: | Gigabit Ethernet |
| Networking Compliant Standards: | IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3at |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 142 Watt |
| Features: | Hot-swappable, redundant power supplies and fans; MACsec on access and modular uplink ports for secure link encryption; Extended Edge Switching controlling bridge in support of V300/V400 edgedevices |
| Network | |
| Power Over Ethernet (PoE) Support: | None |
| PoE Power Consumption: | None |
| Remote Management Protocol: | IPv4; IPv6 |
| Encryption Algorithm: | MACsec |
| Interfaces: | 24 x 10/100/1000BASE-T ports; 2 x Stacking/QSFP28 ports (unpopulated); 1 x Serial console port (RJ-45); 1 x 10/100/1000BASE-T out-of-band management port; 2 x USB A ports for management or external USB flash; 1 x USB Micro-B console port |
| Interfaces / Ports | |
| Interfaces: | 24 x 10/100/1000BASE-T ports; 2 x Stacking/QSFP28 ports (unpopulated); 1 x Serial console port (RJ-45); 1 x 10/100/1000BASE-T out-of-band management port; 2 x USB A ports for management or external USB flash; 1 x USB Micro-B console port |
| Dimensions&Miscellaneous | |
| Width: | 17.36 Inch |
| Depth: | 17.42 Inch |
| Height: | 1.73 Inch |
| Weight: | 5.54 Kg |
| Service&Support | |
| Service & Support Type: | 1 year XIQ Pilot Cloud subscription |
| Special Feature | |
| Min Operating Temperature: | 0 CELSIUS |
| Max Operating Temperature: | 45 CELSIUS |
| Min Storage Temperature: | -40 CELSIUS |
| Max Storage Temperature: | 70 CELSIUS |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
