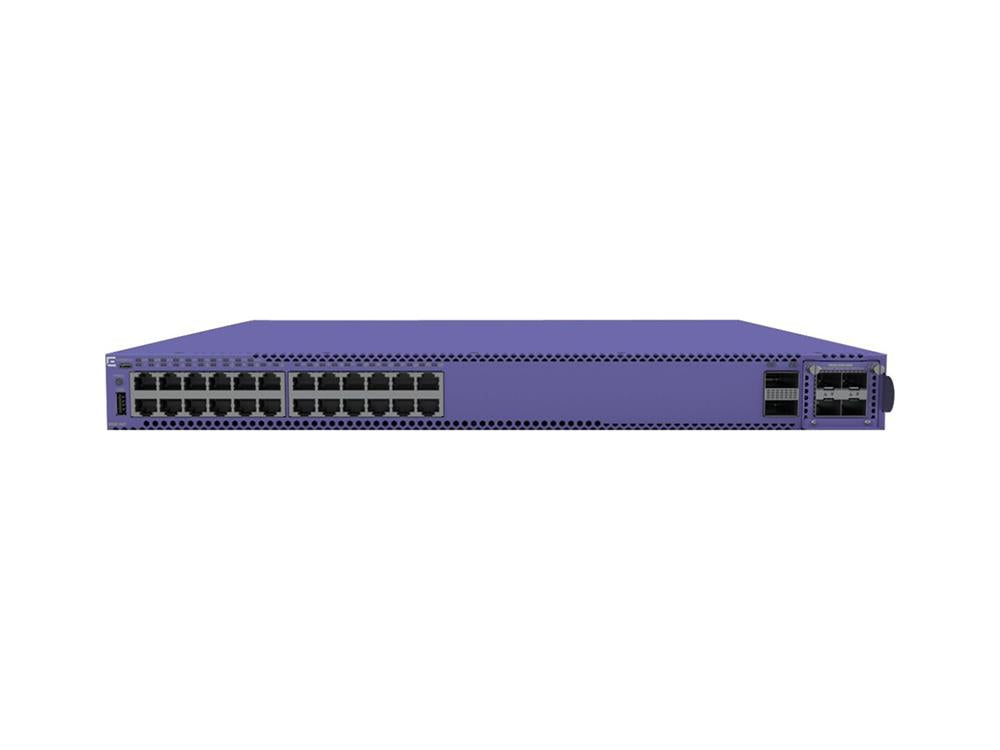

About the product
The 5520 Series is a family of high-performance, feature-rich edge and aggregation switches designed for the next-generation digital enterprise.
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | 5520-24W |
| Form Factor: | 1RU |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 31 |
| Data Link Protocol: | Gigabit Ethernet |
| Processor / Type: | None Processor |
| RAM / Total Installed Size: | None GB |
| Flash Memory / Installed Size: | None GB |
| Networking Compliant Standards: | IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3bt,IEEE 802.3ae,IEEE 802.3aq,IEEE 802.3by,IEEE 802.3ba/802.3bm,IEEE 802.3az |
| Power / Device Type: | Power Supply |
| Media Layer Supported: | Layer 3 |
| Max Power Consumption: | 2480 Watt |
| Features: | Hot-swappable, redundant power supplies and fans. MACsec on access and modular uplink ports for secure link encryption. |
| Network | |
| Power Over Ethernet (PoE) Support: | Yes |
| PoE Power Consumption: | 90W |
| MAC Address Table Size: | 114688/65536 |
| Remote Management Protocol: | IPv4; IPv6 |
| 10/100/1000BASE-T Ports: | 24 |
| Interfaces: | 24 x 10/100/1000BASE-T 802.3bt (90W) ports Full / Half-Duplex (autosensing)MACsec-capable, 2 x Stacking/QSFP28 ports (unpopulated), 1 x Serial console port (RJ-45), 1 x 10/100/1000BASE-T out-of-band management port, 2 x USB A ports for management or external USB flash, 1 x USB Micro-B console port |
| Interfaces / Ports | |
| Interfaces: | 24 x 10/100/1000BASE-T 802.3bt (90W) ports Full / Half-Duplex (autosensing)MACsec-capable, 2 x Stacking/QSFP28 ports (unpopulated), 1 x Serial console port (RJ-45), 1 x 10/100/1000BASE-T out-of-band management port, 2 x USB A ports for management or external USB flash, 1 x USB Micro-B console port |
| 10/100/1000BASE-T Ports: | 24 |
| Dimensions&Miscellaneous | |
| Width: | 17.36 Inch |
| Depth: | 17.42 Inch |
| Height: | 1.73 Inch |
| Weight: | 6.25 Kg |
| Service&Support | |
| Service & Support Type: | |
| Special Feature | |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 50 Celsius |
| Min Storage Temperature: | -40 Celsius |
| Max Storage Temperature: | 70 Celsius |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
