About the product

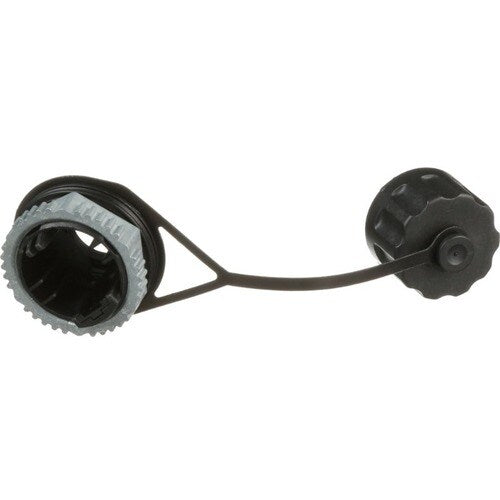

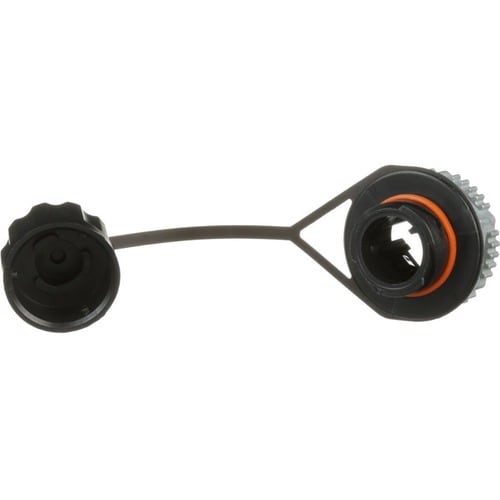

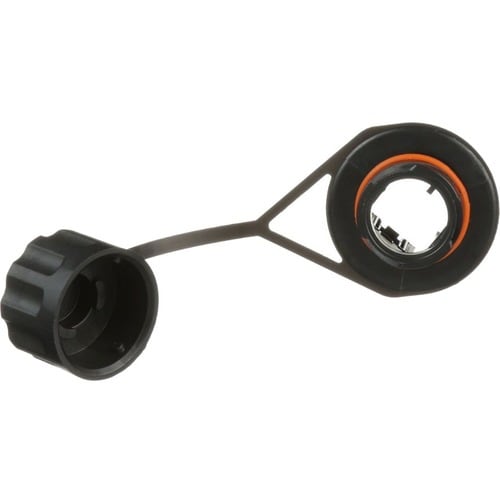

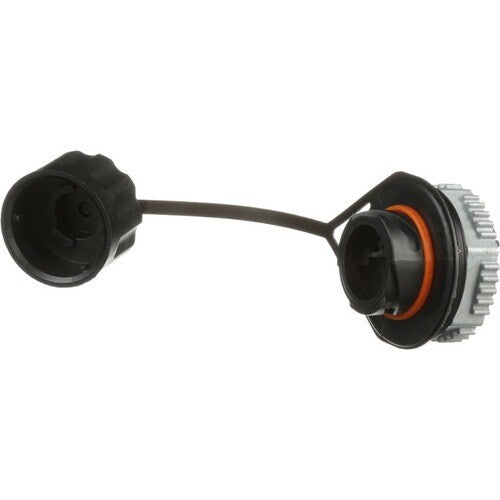

The IndustrialNet™ Cat 5e shielded bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The shielded bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool.
- Contacts are plated with Gold
- Ideal to be used with network cables
Technical Specifications
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Height | 5.34" (135.64 mm) |
| Width | 1.49" (37.85 mm) |
| Depth | 1.67" (42.42 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Network Connector |
| Manufacturer Part Number | IAEBH5ES |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | IndustrialNet TX5e Connectors |
| Product Line | IndustrialNet |
| Product Series | TX5e |
| Brand Name | Panduit |
| Technical Information | |
| Connector Details | 1 x RJ-45 Network Female |
| Shielding | Yes |
| Connector Type | RJ-45 Network - Female |
| Features | Chemical Resistant |
| Temperature Resistant | |
| Dust Protection | |
| Protective Cap | |
| Bulkhead | |
| Vibration Resistant | |
| PoE | |
| Water Resistant | |
| Bayonet Locking | |
| Anti-rotation | |
| Giga-TX Technology | |
| Contact Plating | Gold |
| Ingress Protection (IP) Rating | IP67 |
| IP68 |
