About the product
With its strong optical zoom and precise pan, tilt, and zoom features, Dahua's 4MP Enhanced Starlight Network PTZ Camera (45x) offers an all-in-one solution for long-distance outdoor video surveillance. The camera is an excellent choice for dimly lit environments because to its infrared illumination and enhanced starlight technology. The camera combines True WDR for situations with direct sunshine and glare with a mechanical IR cut filter that works both day and night to deliver high-quality photographs in varying lighting settings throughout the day.

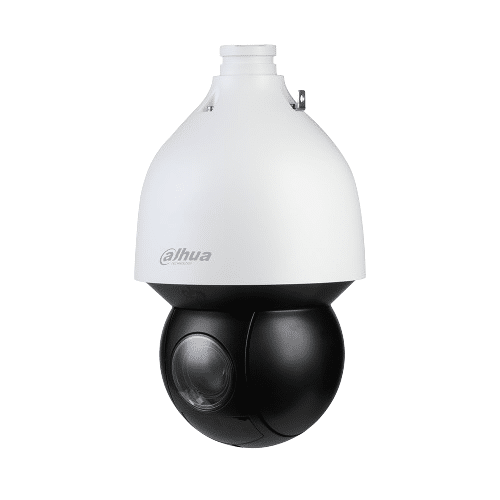

Dahua 4MP CMOS,45x optical zoom, 5 inch IR IP PTZ, Enhanced Starlight, Pro Series Features:
- 1/2.8-in. 4MP Progressive-scan STARVIS™ CMOS Sensor
- Powerful 45x Optical Zoom Lens
- AI Coding, Smart H.265+ and Smart H.264+ Dual Codecs
- 4MP at 30 fps Maximum Resolution
- Analytics+ Functions — Perimeter Protection, Upgraded Smart Motion Detection+, Face Detection, Auto-tracking
- Maximum IR Distance up to 150 m (492.13 ft)
- Enhanced Starlight Technology for Ultra-low Light Sensitivity
- IP67 Ingress Protection and IK10 Vandal Resistance
- Five-year Warranty (when sold through an authorized Dahua distributor)
Dahua 4MP CMOS,45x optical zoom, 5 inch IR IP PTZ, Enhanced Starlight, Pro Series Specifications:
- Camera
- Image Sensor 1/2.8-in. CMOS
- Effective Pixels 2560 (H) × 1440 (V)
- RAM/ROM 1 GB/4 GB
- Electronic Shutter Speed 1/1 s to 1/30,000 s
- Scanning System Progressive
- Minimum Illumination
- Color: 0.005 lux at F1.6
- B/W: 0.0005 lux at F1.6
- IR Light: 0 lux
- Illumination Distance 150 m (492.13 ft)
- Illuminator On/Off Control Zoom Priority, Smart IR, Manual, Off
- Illuminator Number Four (4) IR LEDs
- Lens
- Focal Length 3.95 mm to 177.75 mm
- Maximum Aperature F1.6 to F4.95
- Field of View
- Horizontal: 65.7° to 1.9°
- Vertical: 39.4° to 1.1°
- Diagonal: 73.1° to 2.1°
- Optical Zoom 45x
- Focus Control Automatic, Semi-automatic, Manual
- Close Focus Distance 0.1 m to 1.0 m (0.33 ft to 3.28 ft)
- Iris Control Automatic, Manual
- DORI Distance1
- Detect 2451.7 m (8043.64 ft)
- Observe 972.9 m (3191.93 ft)
- Recognize 490.3 m (1608.60 ft)
- Identify 245.2 m (804.46 ft)
- Pan/Tilt/Zoom
- Pan/Tilt Range Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180°
- Manual Control Speed Pan: 0.1°/s to 300°/s TIlt: 0.1°/s to 200°/s
- Preset Speed Pan: 400°/s Tilt: 300°/s
- Presets 300
- PTZ Mode 5 Patterns, 8 Tours (Up to 32 Presets per Tour), 5 Scans
- Power-off Memory Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset/Scan/Tour/Pattern if there is no command in the specified period
- PTZ Protocol DH-SD Pelco-P/D (Automatic Recognition)
- Video
- Video Compression AI Coding, H.264H, H.264B, Smart H.265+, H.264, H.265, MJPEG (Sub Stream), Smart H.264+
- Streaming Capability Three (3) Streams
- Resolution 4MP (2560 × 1440), 3.1MP (2048 × 1536), 3MP (2304 × 1296), 1080p (1920 × 1080), 720p (1280 × 720), D1 (704 × 576), VGA (640 × 480), CIF (352 × 288)
- Video Frame Rate Main Stream: 4MP/3MP/1080p/1.3MP/720p at 1 to 30 fps Sub Stream 1: D1/VGA/CIF at 1 to 30 fps Sub Stream 2: 1080p/1.3MP/720p at 1 to 30 fps
- Bit Rate Control CBR/VBR
- Video Bit Rate H.264: 96 kbps to 14848 kbps H.265: 38 kbps to 8960 kbps
- Day/Night Auto (ICR), Color, B/W
- Day/Night Auto (ICR), Color, B/W
- Backlight Compensation BLC, HLC, True WDR (120 dB)
- White Balance Auto, Indoor, Outdoor, Atw, Manual, Sodium Lamp, Natural Light, Street Lamp
- Gain Control Automatic, Manual
- Noise Reduction 2DNR, 3DNR
- Motion Detection Supported
- Region of Interest (RoI) Supported
- Advanced Features Electronic Image Stabilization (EIS), Electronic Defog
- Digital Zoom 16x
- Image Rotation 180°
- Privacy Masking Up to 24 Areas (Up to 8 Areas in the Same View)
- S/N ? 55 dB
- Audio
- Compression PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729, G.723, AAC
- Network
- Protocol FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP
- Interoperability CGI, SDK, ONVIF (Profile S/G/T), P2P
- Streaming Method Unicast/Multicast
- User/Host 20 (Total Bandwidth: 64 M)
- Storage MicroSD card (Up to 512 GB), FTP, NAS
- Browser Edge, Chrome 41 or Later, Firefox 50 or Later, Safari 10 or Later
- Management Software DSS, DMSS
- Mobile Client iOS, Android
- Interface
- Network One (1) RJ-45 (10/100 Base-T) Port
- Audio
- Input: One (1) Channel
- Output: One (1) Channel
- Alarm
- Input: Two (2) Channel
- Output: One (1) Channel
- Alarm Linkage Capture, Recording, Send Email, Preset, Tour, Pattern, Alarm Digital Output
- Alarm Event Motion/Tampering Detection, Audio Detection, Network Disconnection Detection, IP Conflict Detection, Memory Card State Detection, Memory Space Detection
- Electrical
- Power Supply 24 VDC, 2.5 A ± 25% PoE+ (802.3at)
- Power Consumption Basic: 10 W Maximum: 22 W (Illuminator On)
- Environment
- Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
- Operating Humidity ? 95% (RH)
- Ingress Protection IP67
- Vandal Resistance IK10
- Surge Protection TVS 6000 V
- Construction
- Product Dimensions 332 mm × 190 mm (13.07 in. × 7.48 in.)
- Net Weight 4.7 kg (10.36 lb)
- Gross Weight 8.0 kg (17.64 lb)
- Certifications CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA 22.2,No.60950-1
- Analytics+ Functions
- Perimeter Protection: Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter
- Upgraded Smart Motion Detection+
- Differentiates between and classifies human and vehicle objects
- Filters false alarms due to leaves, lights, animals, and other inconsequential objects.
- Extracts human or vehicle objects from recorded video for quick target search and retrieval.
- Face Detection Detects and captures a snapshot of a human face in a defined area within a scene
- Intelligent Video System
- Standard Features
- Tampering with the camera.
- Error writing to an onboard Micro SD card.
- Error sending or receiving data over the network.
- Unauthorized access to the camera.
- Motion An object moves through any part of the scene.
- Abandoned/Missing Object A target leaves an object is designated area, or a target removes an object from the same designated area.
- Auto-track Controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene.
- Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
- Standard Features
Technical Specifications
With its strong optical zoom and precise pan, tilt, and zoom features, Dahua's 4MP Enhanced Starlight Network PTZ Camera (45x) offers an all-in-one solution for long-distance outdoor video surveillance. The camera is an excellent choice for dimly lit environments because to its infrared illumination and enhanced starlight technology. The camera combines True WDR for situations with direct sunshine and glare with a mechanical IR cut filter that works both day and night to deliver high-quality photographs in varying lighting settings throughout the day.
Dahua 4MP CMOS,45x optical zoom, 5 inch IR IP PTZ, Enhanced Starlight, Pro Series Features:
- 1/2.8-in. 4MP Progressive-scan STARVIS™ CMOS Sensor
- Powerful 45x Optical Zoom Lens
- AI Coding, Smart H.265+ and Smart H.264+ Dual Codecs
- 4MP at 30 fps Maximum Resolution
- Analytics+ Functions — Perimeter Protection, Upgraded Smart Motion Detection+, Face Detection, Auto-tracking
- Maximum IR Distance up to 150 m (492.13 ft)
- Enhanced Starlight Technology for Ultra-low Light Sensitivity
- IP67 Ingress Protection and IK10 Vandal Resistance
- Five-year Warranty (when sold through an authorized Dahua distributor)
Dahua 4MP CMOS,45x optical zoom, 5 inch IR IP PTZ, Enhanced Starlight, Pro Series Specifications:
- Camera
- Image Sensor 1/2.8-in. CMOS
- Effective Pixels 2560 (H) × 1440 (V)
- RAM/ROM 1 GB/4 GB
- Electronic Shutter Speed 1/1 s to 1/30,000 s
- Scanning System Progressive
- Minimum Illumination
- Color: 0.005 lux at F1.6
- B/W: 0.0005 lux at F1.6
- IR Light: 0 lux
- Illumination Distance 150 m (492.13 ft)
- Illuminator On/Off Control Zoom Priority, Smart IR, Manual, Off
- Illuminator Number Four (4) IR LEDs
- Lens
- Focal Length 3.95 mm to 177.75 mm
- Maximum Aperature F1.6 to F4.95
- Field of View
- Horizontal: 65.7° to 1.9°
- Vertical: 39.4° to 1.1°
- Diagonal: 73.1° to 2.1°
- Optical Zoom 45x
- Focus Control Automatic, Semi-automatic, Manual
- Close Focus Distance 0.1 m to 1.0 m (0.33 ft to 3.28 ft)
- Iris Control Automatic, Manual
- DORI Distance1
- Detect 2451.7 m (8043.64 ft)
- Observe 972.9 m (3191.93 ft)
- Recognize 490.3 m (1608.60 ft)
- Identify 245.2 m (804.46 ft)
- Pan/Tilt/Zoom
- Pan/Tilt Range Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180°
- Manual Control Speed Pan: 0.1°/s to 300°/s TIlt: 0.1°/s to 200°/s
- Preset Speed Pan: 400°/s Tilt: 300°/s
- Presets 300
- PTZ Mode 5 Patterns, 8 Tours (Up to 32 Presets per Tour), 5 Scans
- Power-off Memory Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset/Scan/Tour/Pattern if there is no command in the specified period
- PTZ Protocol DH-SD Pelco-P/D (Automatic Recognition)
- Video
- Video Compression AI Coding, H.264H, H.264B, Smart H.265+, H.264, H.265, MJPEG (Sub Stream), Smart H.264+
- Streaming Capability Three (3) Streams
- Resolution 4MP (2560 × 1440), 3.1MP (2048 × 1536), 3MP (2304 × 1296), 1080p (1920 × 1080), 720p (1280 × 720), D1 (704 × 576), VGA (640 × 480), CIF (352 × 288)
- Video Frame Rate Main Stream: 4MP/3MP/1080p/1.3MP/720p at 1 to 30 fps Sub Stream 1: D1/VGA/CIF at 1 to 30 fps Sub Stream 2: 1080p/1.3MP/720p at 1 to 30 fps
- Bit Rate Control CBR/VBR
- Video Bit Rate H.264: 96 kbps to 14848 kbps H.265: 38 kbps to 8960 kbps
- Day/Night Auto (ICR), Color, B/W
- Day/Night Auto (ICR), Color, B/W
- Backlight Compensation BLC, HLC, True WDR (120 dB)
- White Balance Auto, Indoor, Outdoor, Atw, Manual, Sodium Lamp, Natural Light, Street Lamp
- Gain Control Automatic, Manual
- Noise Reduction 2DNR, 3DNR
- Motion Detection Supported
- Region of Interest (RoI) Supported
- Advanced Features Electronic Image Stabilization (EIS), Electronic Defog
- Digital Zoom 16x
- Image Rotation 180°
- Privacy Masking Up to 24 Areas (Up to 8 Areas in the Same View)
- S/N ? 55 dB
- Audio
- Compression PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729, G.723, AAC
- Network
- Protocol FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP
- Interoperability CGI, SDK, ONVIF (Profile S/G/T), P2P
- Streaming Method Unicast/Multicast
- User/Host 20 (Total Bandwidth: 64 M)
- Storage MicroSD card (Up to 512 GB), FTP, NAS
- Browser Edge, Chrome 41 or Later, Firefox 50 or Later, Safari 10 or Later
- Management Software DSS, DMSS
- Mobile Client iOS, Android
- Interface
- Network One (1) RJ-45 (10/100 Base-T) Port
- Audio
- Input: One (1) Channel
- Output: One (1) Channel
- Alarm
- Input: Two (2) Channel
- Output: One (1) Channel
- Alarm Linkage Capture, Recording, Send Email, Preset, Tour, Pattern, Alarm Digital Output
- Alarm Event Motion/Tampering Detection, Audio Detection, Network Disconnection Detection, IP Conflict Detection, Memory Card State Detection, Memory Space Detection
- Electrical
- Power Supply 24 VDC, 2.5 A ± 25% PoE+ (802.3at)
- Power Consumption Basic: 10 W Maximum: 22 W (Illuminator On)
- Environment
- Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
- Operating Humidity ? 95% (RH)
- Ingress Protection IP67
- Vandal Resistance IK10
- Surge Protection TVS 6000 V
- Construction
- Product Dimensions 332 mm × 190 mm (13.07 in. × 7.48 in.)
- Net Weight 4.7 kg (10.36 lb)
- Gross Weight 8.0 kg (17.64 lb)
- Certifications CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA 22.2,No.60950-1
- Analytics+ Functions
- Perimeter Protection: Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter
- Upgraded Smart Motion Detection+
- Differentiates between and classifies human and vehicle objects
- Filters false alarms due to leaves, lights, animals, and other inconsequential objects.
- Extracts human or vehicle objects from recorded video for quick target search and retrieval.
- Face Detection Detects and captures a snapshot of a human face in a defined area within a scene
- Intelligent Video System
- Standard Features
- Tampering with the camera.
- Error writing to an onboard Micro SD card.
- Error sending or receiving data over the network.
- Unauthorized access to the camera.
- Motion An object moves through any part of the scene.
- Abandoned/Missing Object A target leaves an object is designated area, or a target removes an object from the same designated area.
- Auto-track Controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene.
- Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
- Standard Features
