About the product

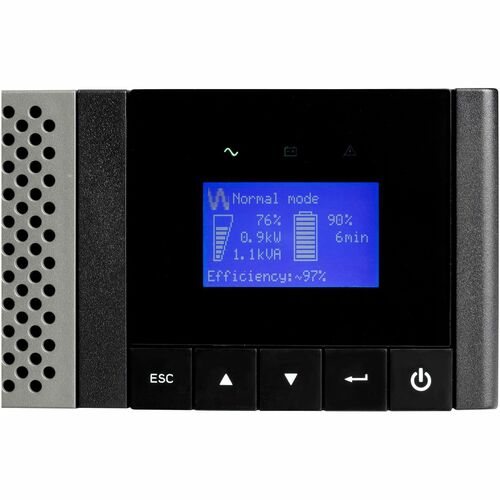

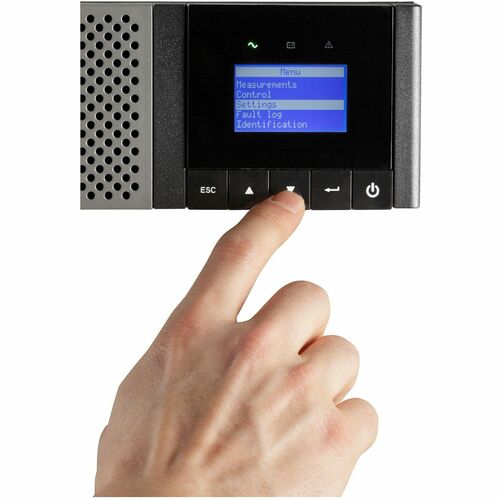

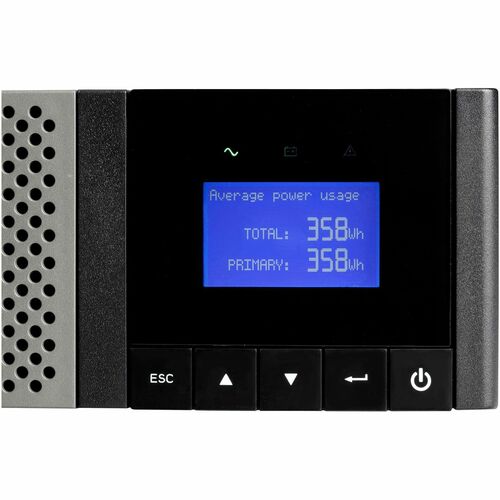

The Eaton 5PX UPS is an integrated power management solution. Paired seamlessly with Intelligent Power Software Suite, the 5PX provides the tools you need to manage your equipment, even in virtualized environments. Designed with managed outlet segments, you can monitor energy consumption on the intuitive LCD screen. It also delivers more power than comparable UPSs and has an efficiency rating of up to 99%.
- 1.50 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 1.35 kW load capacity
- Up to 3 minute runtime on full load to preserve critical data from power shortage interruptions
Technical Specifications
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Total Number of Expansion Slots | 1 |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Eaton Intelligent Power Software Suite |
| Certifications & Standards |
|
| Country of Origin | Philippines |
| Power Description | |
| Input Voltage | 220 V AC |
| Output Voltage | 265 V AC |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Transfer Time | 4 ms |

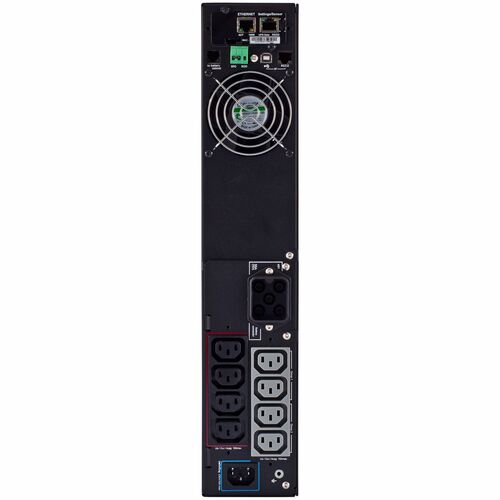

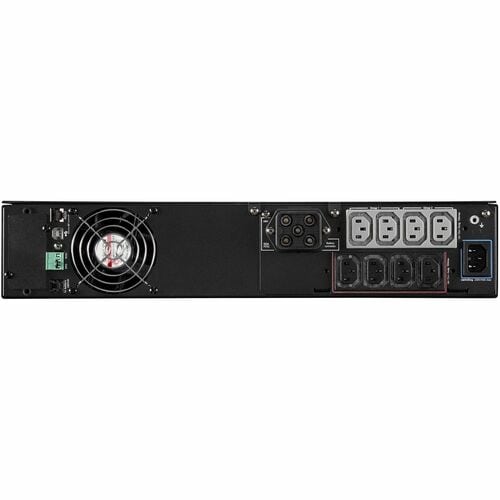

| Receptacle Detail | 8 x IEC 60320 C13 |
| Battery Information | |
| Battery Chemistry | Lead Acid |

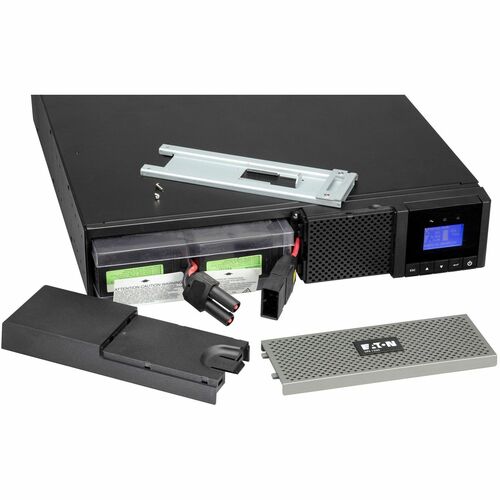

| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 12 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Maintenance-free, Sealed |
| Physical Characteristics | |
| Weight (Approximate) | 61 lb (27669.13 g) |

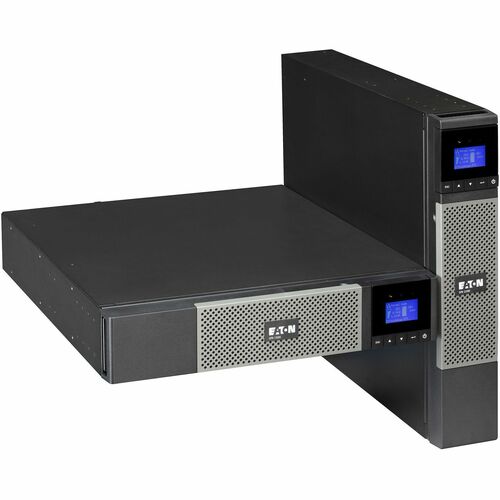

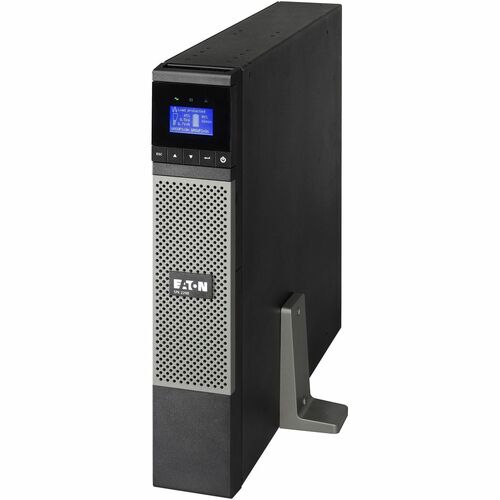

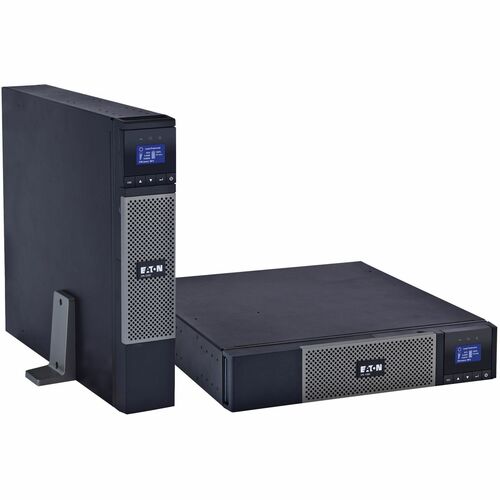

| Form Factor | Rack/Tower |

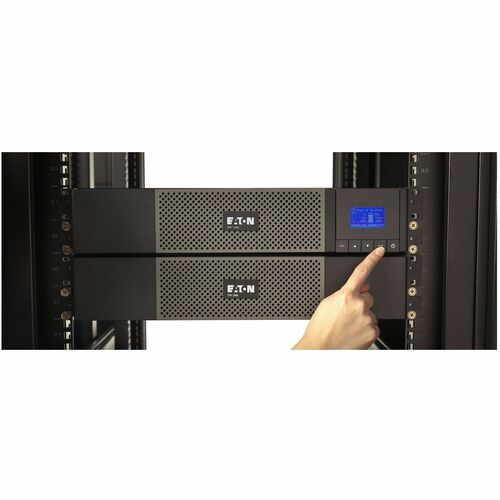

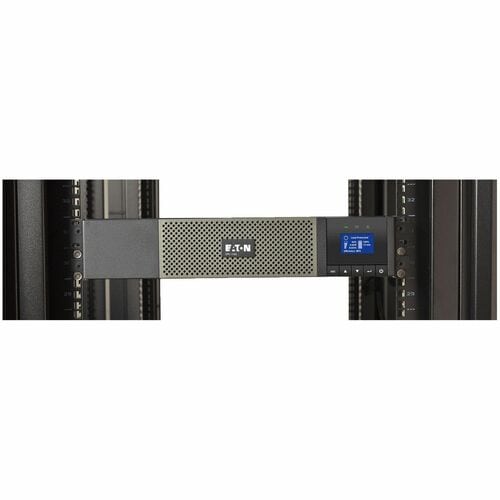

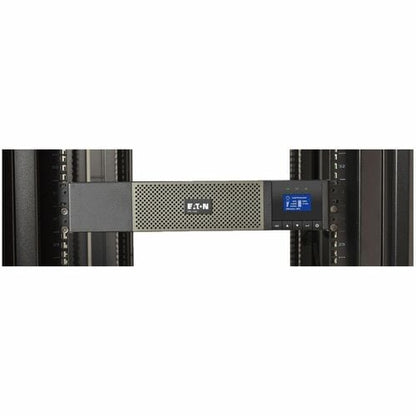

| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.40" (441.96 mm) |
| Depth | 20.60" (523.24 mm) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | 5PX1500IRT |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | 5PX1500IRT |
| Product Name | 5PX 1500 VA Tower/Rack Mountable UPS |
| Product Series | 5PX |
| Brand Name | Eaton |
