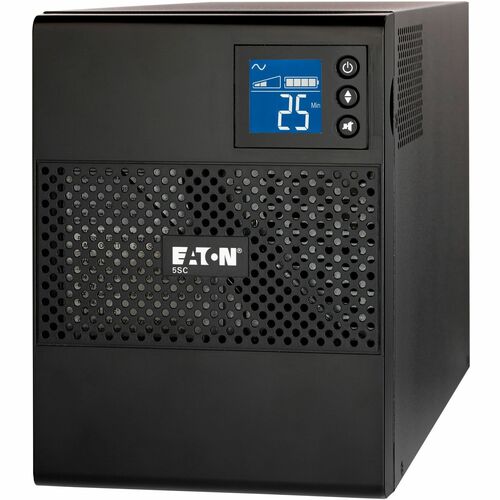

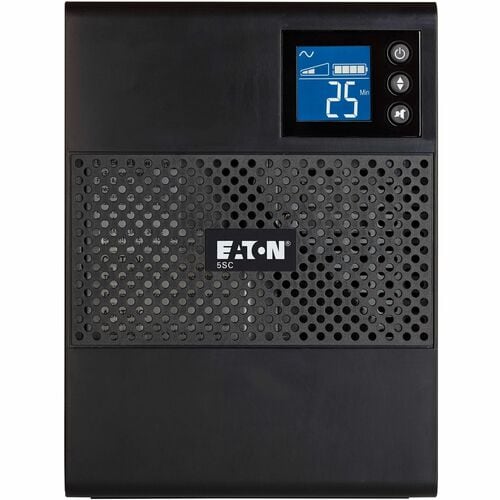

About the product
The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton's Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.
- Works adequately in situations where the supply is prone to sags and surges
- 750 VA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 525 W load capacity
Technical Specifications
| Management | |
| Battery Management | ABM Technology |
| Environmental Conditions | |
| Sound Emission | 55 dB |
| Maximum Operating Temperature | 95°F (35°C) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | No |
| Battery Characteristics | Maintenance-free, Sealed |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 525 W |
| Technical Information | |
| Protection Type | Surge |

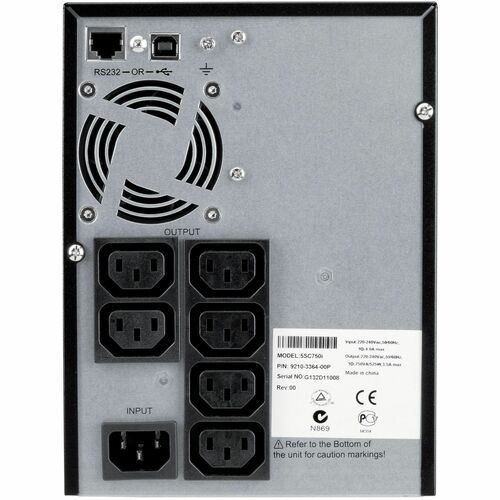

| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Eaton Intelligent Power Software |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | 5SC750G |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | 5SC UPS |
| Product Series | 5SC |
| Brand Name | Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 23.15 lb (10500 g) |
| Form Factor | Tower |
| Height | 8.23" (209 mm) |
| Width | 5.91" (150 mm) |
| Depth | 13.39" (340 mm) |
| Product Color | Black |
| Color Family | Black |
