About the product
The EXTREME Category 6 jack is designed to be used with all QUICKPORT-compatible products. The jack includes patented Retention Force Technology™ which promotes consistent performance over the life of the system. It features unique pair separation towers allowing for quicker and easier terminations. The jack is built on a 180-degree configuration with the punch field in the back, allowing for rear termination.

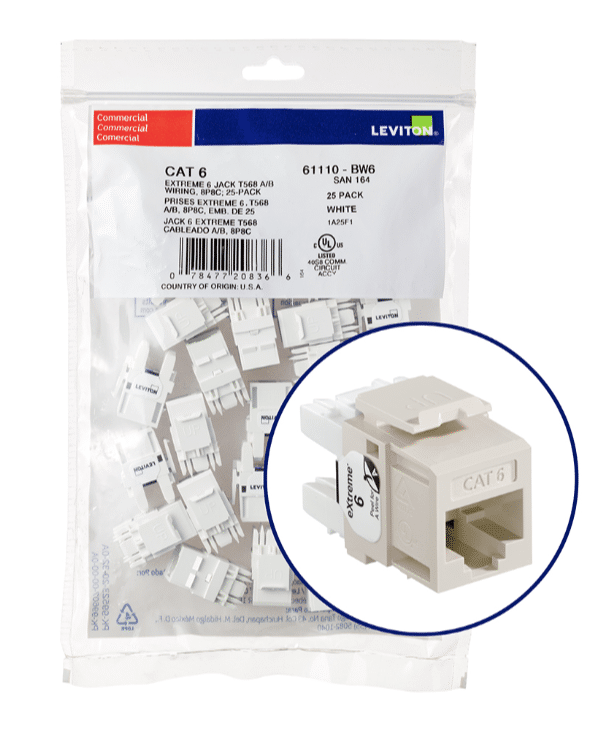

Leviton 61110-BT6 Quickport CAT6 Light Almond 25 PACK:
Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
Terminates 26 AWG stranded conductors up to 5 times
Capable of multiple re-terminations
Gas-tight IDC jacks prevent corrosion
Dual-layer T568B/T568A wiring label simplifies punch-down
Patented Retention Force Technology protects tines from damage and increases system longevity
Pair Separation Tower design facilitates the separation of conductors and minimizes untwisting
180-degree configuration allows for rear termination
Available in 13 ANSI/TIA-606-C compatible colors for color coding or organization
Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid™ Punchdown Tool
Select colors available in 200 pack Sustainably Smart Packaging that uses no single-use plastic and is fully recyclable
Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
Technical Specifications
The EXTREME Category 6 jack is designed to be used with all QUICKPORT-compatible products. The jack includes patented Retention Force Technology™ which promotes consistent performance over the life of the system. It features unique pair separation towers allowing for quicker and easier terminations. The jack is built on a 180-degree configuration with the punch field in the back, allowing for rear termination.
Leviton 61110-BT6 Quickport CAT6 Light Almond 25 PACK:
Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
Terminates 26 AWG stranded conductors up to 5 times
Capable of multiple re-terminations
Gas-tight IDC jacks prevent corrosion
Dual-layer T568B/T568A wiring label simplifies punch-down
Patented Retention Force Technology protects tines from damage and increases system longevity
Pair Separation Tower design facilitates the separation of conductors and minimizes untwisting
180-degree configuration allows for rear termination
Available in 13 ANSI/TIA-606-C compatible colors for color coding or organization
Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid™ Punchdown Tool
Select colors available in 200 pack Sustainably Smart Packaging that uses no single-use plastic and is fully recyclable
Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
