About the product

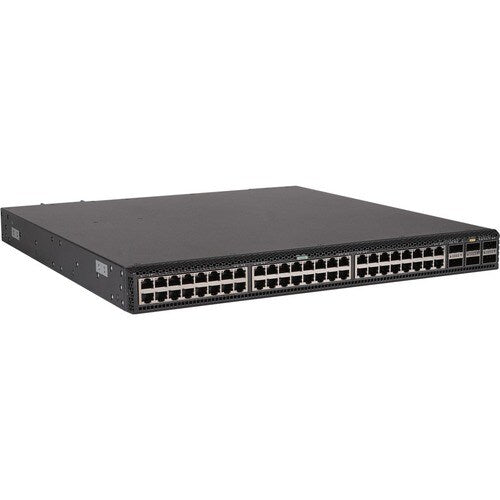

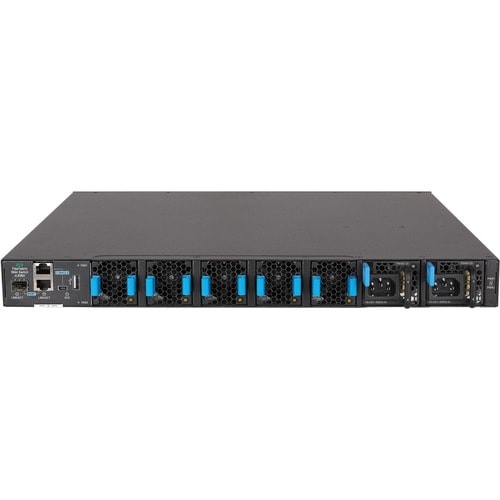

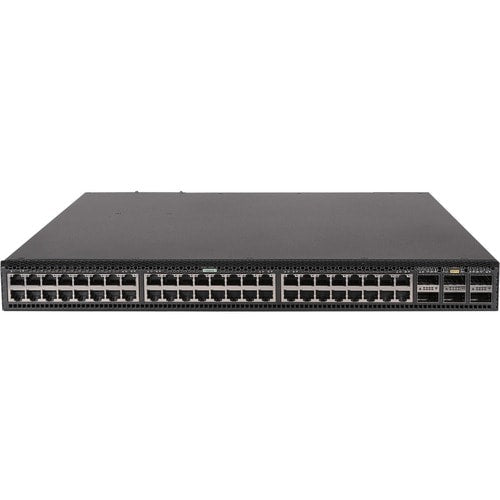

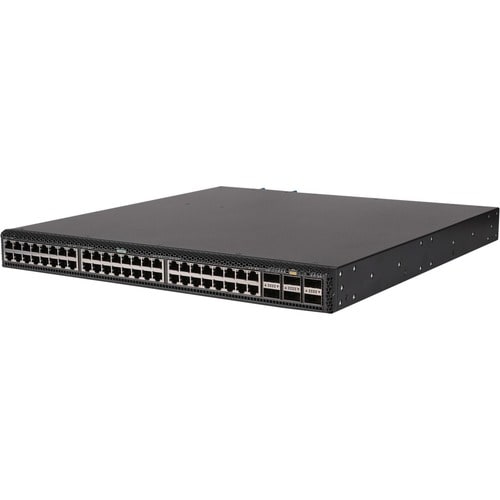

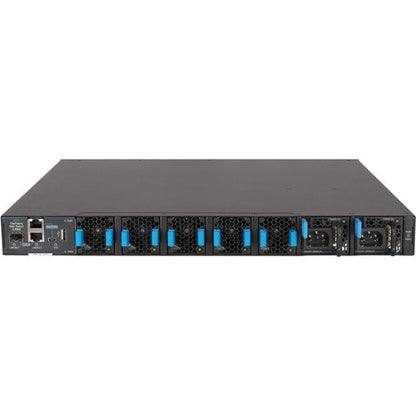

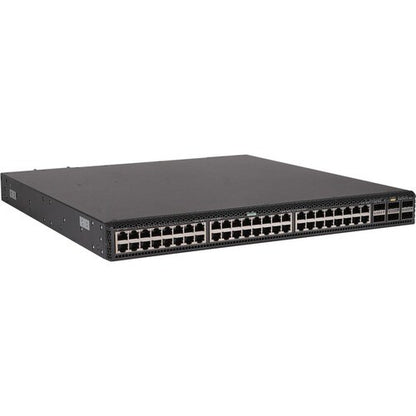

HPE FlexFabric 5944 Switch Series
HPE FlexFabric 5944 Switch Series is a family of high-density, ultra-low-latency ToR switches Ideally suited for deployment at the aggregation and server access or leaf layer of large enterprise data centers and cloud service provider environments, the HPE FlexFabric 5944 Switch Series is also powerful enough for deployment at the core layer of medium-sized enterprises.
Delivering high performance switching capacity with the latest generation of ASICs,10G-BaseT connectivity, Virtual Extensible LAN (VXLAN) , Multiprotocol Lable Switching (MPLS) and Multicast, the 5944 Switch series offers a choice that fits your budget and delivers low TCO. The 5944 Switch series includes HPE FlexFabric Network Analytics that enhances visibility and network manageability with real-time telemetry collection and analysis.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Quickly and easily set up a wired network with 48 networking ports
- Cascade to other network devices through the uplink port to expand your local area network
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | QSFP28 |
| Total Number of Expansion Slots | 6.0 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 18.11" (460 mm) |
| Depth | 17.32" (440 mm) |
| Compatible Rack Unit | 1U |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 6 x 100 Gigabit Ethernet Expansion Slot |
| 48 x 10 Gigabit Ethernet Network | |
| Media & Performance | |
| Network Technology | 100GBase-X |
| 10GBase-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| 100 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Power Description | |
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 102 W |
| Number of Power Supplies Supported | 2 |
| Redundant Power Supply Supported | Yes |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | JL836A |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 5944 48XGT 6QS28 |
| Product Name | FlexFabric 5944 48XGT 6QSFP28 Switch |
| Product Line | FlexFabric |
| Product Series | 5944 |
| Brand Name | HPE |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1AX |
| IEEE 802.1Q | |
| IEEE 802.1Qaz | |
| IEEE 802.1Qbb | |
| IEEE 802.1ag | |
| IEEE 802.1ad | |
| IEEE 802.1ab | |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.1s | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3ad | |
| IEEE 802.3ae | |
| IEEE 802.3ah | |
| IEEE 802.3x |
