About the product

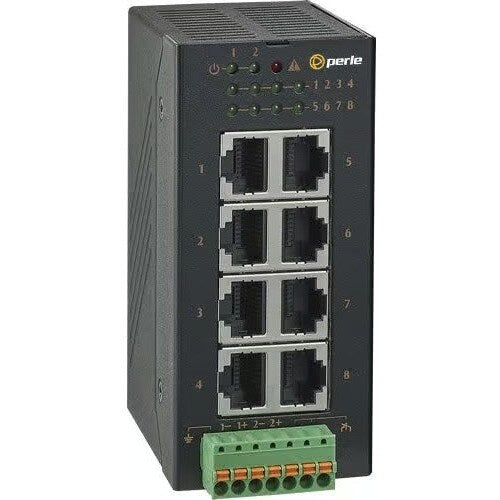

Perle IDS-108FE Industrial Ethernet Switches are designed for easy deployment in industrial environments with harsh operating conditions and limited space. Designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, infrastructure, transportation, security, oil and gas, and mining the IDS-108FE Switches are economical easy-to-use devices, that provide essential industrial Ethernet networking functionality.
These unmanaged switches support 9 to 55VDC redundant power input and provide a relay alarm for power failure. The full/half-duplex auto-negotiation and auto MDI/MDIX operation simplifies installation and setup for convenient connection of a variety of network devices. And, QoS support allows for traffic prioritization and effective management of resources.
For automation and industrial control systems using EtherNet/IP, these rugged, DIN rail mountable switches with metal housing provides security and easy installation (mounting kit is included).
- 8 x RJ45 ports with 10/100 Mbps on all ports
- Redundant dual power input 12/24/48 VDC
- Reverse polarity protection
- Fan-less design with no moving parts
- -40 to 75C industrial operating temperature support
- QoS (Quality of Service) prioritized messages
Technical Specifications
| Management & Protocols | |
| Manageable | No |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Fast Ethernet Network |
| Media & Performance | |
| Network Technology | 10/100Base-TX |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Compact | |
| Product Material | Metal |
| Power Description | |
| Input Voltage | 55 V DC |
| 9 V DC | |
| Power Consumption | 3.40 W |
| Plug/Connector Type | Terminal Block |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3u |
| IEEE 802.3az | |
| IEEE 802.3 | |
| IEEE 802.1p | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 07017490 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | IDS-108FE-XT |
| Product Name | IDS-108FE-XT Ethernet Switch |
| Brand Name | Perle |
| Miscellaneous | |
| Application/Usage | Security |
| Transportation | |
| Industrial | |
| Infrastructure | |
| Automation Industry | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
