About the product
Technical Specifications
| Battery Information | |
| Number of Cells | 6-cell |
| Chipset | |
| Chipset Manufacturer | Intel |
| Warranty | |
| Additional Warranty Information | 1Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS |
| Technical Information | |
| Release Year | 2024 |
| AI-powered | Yes |
| Input Devices | |

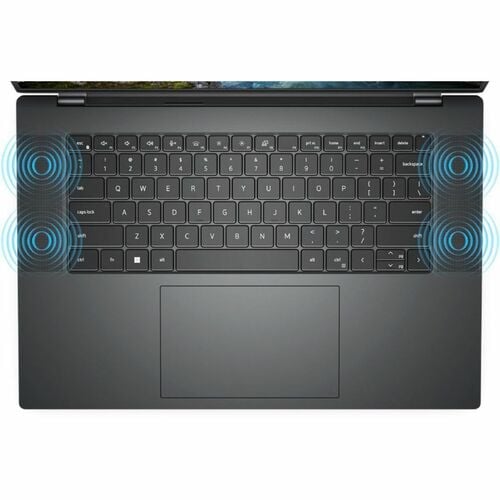

| Keyboard Backlight | Yes |
| Keyboard Localization | English (US) |
| Copilot Key | Yes |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| Operating System | |
| Operating System | Windows 11 Pro |
| Operating System Platform | Windows |
| Operating System Language | English/Spanish/French/Brazilian Portuguese |
| Power Description | |
| Maximum Power Supply Wattage | 165 W |
| Power Plug Type | Type C |
| USB Power Delivery Support | Yes |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| SSD Form Factor | M.2 |
| Built-in Devices | |
| Finger Print Reader | Yes |
| Front Camera/Webcam | Yes |
| Infrared Camera | Yes |
| Camera Privacy Shutter | No |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 1 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Memory | |
| On-board Memory | 32 GB |
| On-board Memory Technology | LPDDR5X |
| Total Installed System Memory | 32 GB |
| System Memory Form Factor | On-board |
| Physical Characteristics | |
| Weight (Approximate) | 4.43 lb (2010 g) |
| Height | 0.87" (22.17 mm) |
| Width | 13.92" (353.68 mm) |
| Depth | 9.46" (240.33 mm) |
| Cover Material | Aluminum/Resin |
| Product Color | Anodized Titan Gray |
| Color Family | Gray |
| Processor | |
| Processor Type | Core Ultra 7 |
| Processor Model | 165H |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Manufacturer | Intel |
| vPro Technology | Yes |
| Maximum Turbo Speed | 5 GHz |
| Processor Threads | 22 |
| Intel Evo Platform | Yes |
| NPU Name | AI Boost |
| General Information | |
| Product Type | Mobile Workstation |
| Manufacturer Part Number | 728PF |
| Manufacturer Website Address | http://www1.ca.dell.com |
| Packaged Quantity | 1 |
| Manufacturer | Dell Technologies |
| Product Model | 5690 |

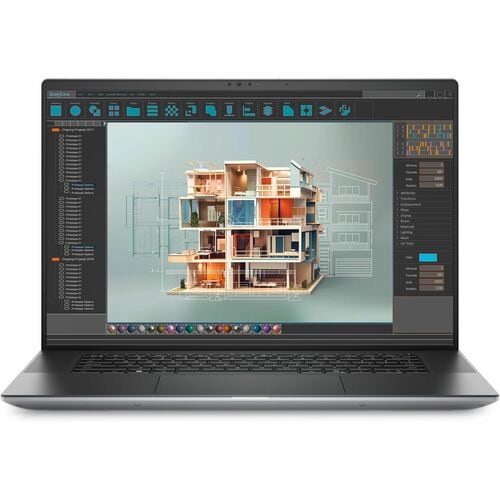

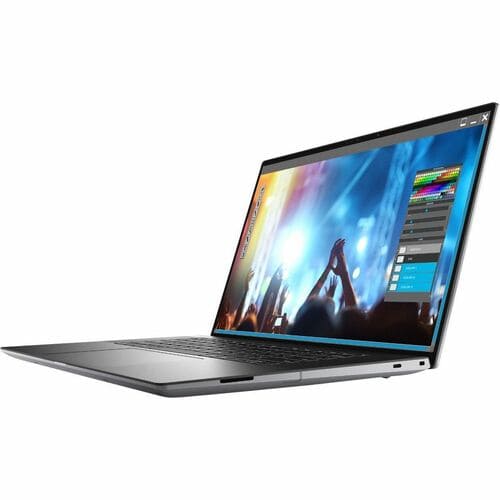

| Product Name | Mobile Precision 5690 |
| Product Line | Precision |
| Product Series | 5000 |
| Brand Name | Dell |
| Miscellaneous | |
| Package Contents |
|
| Features | Anti-glare Screen |
| ExpressCharge Boost | |
| Low Blue Light | |
| Country of Origin | China |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
| TCO Certified 9.0 | |
| Charger Included | Yes |
| Energy Star | Yes |
| TCO Certified | Yes |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Windows Hello Compatible | Yes |
| Display & Graphics | |
| Screen Resolution | 1920 x 1200 |
| Brightness | 500 cd/m² |
| Screen Size | 16" |
| Screen Mode | Full HD Plus |
| Touchscreen | No |
| Standard Refresh Rate | 60 Hz |
| Graphics Controller Manufacturer | NVIDIA |
| Graphics Controller Model | RTX 2000 Ada |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Technology | GDDR6 |
| Graphics Memory Accessibility | Dedicated |
| Display Screen Technology | In-plane Switching (IPS) Technology |
| VR Ready | Yes |
| Color Gamut | 100% DCI-P3 |
