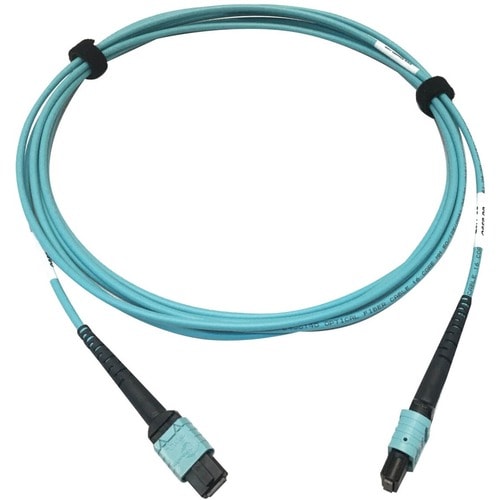

Tripp Lite by Eaton N846D-03M-24AAQ 400G Multimode 50/125 OM4 Fiber Optic Cable,
Tripp Lite by Eaton N846D-03M-24AAQ 400G Multimode 50/125 OM4 Fiber Optic Cable,
VPN:N846D-03M-24AAQ SKU:CB262422 CPU:37332258380
- Features Stranded
- Features Fiber Optic cable type
- This Network Cable provides splendid performance and clear connectivity
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details

Recently Viewed
Tripp Lite by Eaton N846D-03M-24AAQ 400G Multimode 50/125 OM4 Fiber Optic Cable,
Product information summary
About the product
400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data and Voice Networking
As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards.

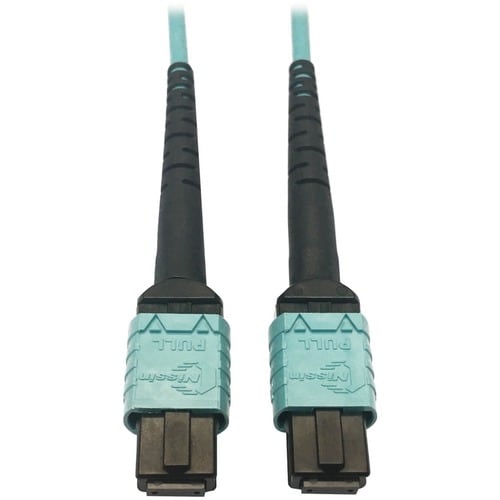

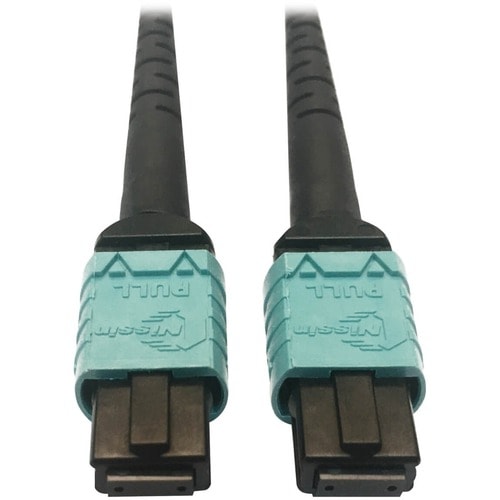

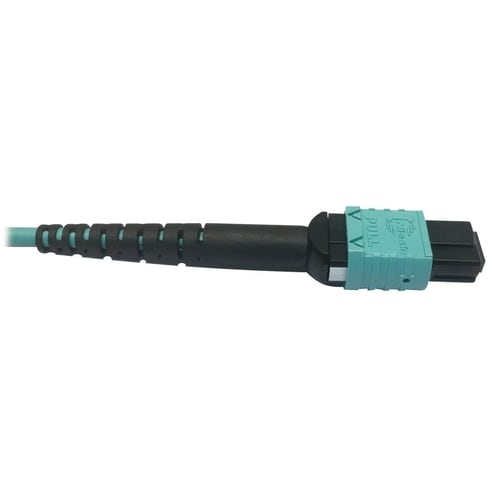

24-Fiber MTP/MPO Connectors Designed for the Latest QSFP-DD Transceivers
The 24F MPO connectors have a wide parallel optical interface for use with the latest 400G QSFP-DD transceivers, making this cable an excellent solution for your high-density network application. The connectors are the same size as standard SC connectors, but much denser, allowing vertical stacking in switches or patch panels where space is at a premium. Pull tabs make the cable easy to install or remove with one hand.
Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has an aqua jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The three-millimeter ruggedized plenum-rated jacket has low smoke and flame characteristics, making it suitable for premise applications in ceilings, walls and ducts.
- Features Stranded
- Features Fiber Optic cable type
- This Network Cable provides splendid performance and clear connectivity
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Color Family | Black |
| Jacket Color | Aqua |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N846D-03M-24AAQ |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | N846D-03M-24AAQ |
| Product Name | N846D-03M-24AAQ 400G Multimode 50/125 OM4 Fiber Optic Cable, Aqua, 3 m |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 9.8 ft (3 m) |
| Data Transfer Rate | 400 Gbit/s |
| Device Supported | Transceiver |
| Patch Panel | |
| Network Switch | |
| Network Device | |
| Jacket Type | OFNP |
| Plenum | |
| Features | Stranded |
| Push-Pull Tab | |
| Rugged | |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | MTP/MPO Network - Female |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector on Second End Details | 1 x MTP/MPO Network - Female |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
