About the product

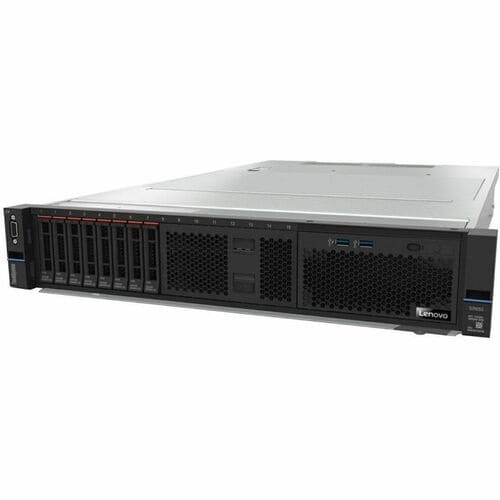

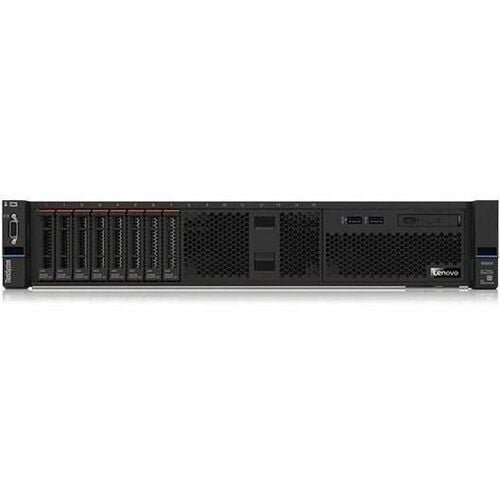

The Lenovo ThinkSystem SR665 7D2V1009NA is a 2-socket 2U server that features the AMD EPYC 7002 "Rome" and AMD EPYC 7003 "Milan" families of processors. With 32 cores per processor and support for the new PCIe 4.0 standard for I/O, the 7D2V1009NA offers the ultimate in two-socket server performance in a 2U form factor.
- Gigabit Ethernet port for ultra-fast network speeds
- 1.10 kW power supply unit (PSU) fulfills your system's power requirements
- RAID provides data reliability, fault tolerance and improves overall performance
- With 32 GB memory, you can multitask between applications smoothly
- 1.92 TB SSD provides performance and superior data storage for storing a variety of files including media, documents and more
Technical Specifications
| Chipset | |
| Chipset Manufacturer | AMD |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Display & Graphics | |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| Storage | |
| Solid State Drive Interface | Serial ATA/600 |
| Solid State Drive Configuration | 1 x 1.92TB |
| Total Solid State Drive Capacity | 1.92 TB |
| Number of Solid State Drives | 1 |
| Controllers | |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| Serial ATA | |
| RAID Supported | Yes |
| Controller Model | 930-16i |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 85.54 lb (38800 g) |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 30.10" (764.54 mm) |
| I/O Expansions | |
| "Number of Internal 2.5"" Bays" | 16 |
| Number of Total Expansion Bays | 16 |
| Total Number of Expansion Slots | 3 |
| Hot Swappable Bays | Yes |
| PCI Express x16 (Gen 3.x) Slots | 1 |
| PCI Express x8 (Gen 3.x) Slots | 2 |
| Number of SFF Bays | 16 |
| PCI Express Details | 3 (x16, x8, x8) Gen4 |
| Interfaces/Ports | |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 2 |
| Number of USB 3.1 Type-A Ports | 5 |
| Remote Management Controller | XCC Enterprise |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 8 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 32 |
| Processor | |
| Cache | 128 MB |
| Processor Speed | 2.60 GHz |
| Processor Type | EPYC |
| Processor Model | 7513 |
| Processor Core | Dotriaconta-core (32 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 3rd Gen |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7D2V1009NA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D2V1009NA |
| Product Name | ThinkSystem SR665 7D2V1009NA Server |
| Product Line | ThinkSystem |
| Product Series | SR665 |
| Brand Name | Lenovo |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 1.10 kW |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8.3 |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 8.7 | |
| Red Hat Enterprise Linux 8.8 | |
| Red Hat Enterprise Linux 9.0 | |
| Red Hat Enterprise Linux 9.1 | |
| Red Hat Enterprise Linux 9.2 | |
| Windows Server 2022 | |
| Windows Server 2019 | |
| Windows Server 2016 | |
| Ubuntu 22.04 LTS x64 | |
| SUSE Linux Enterprise Server 15 SP5 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP3 |
