About the product

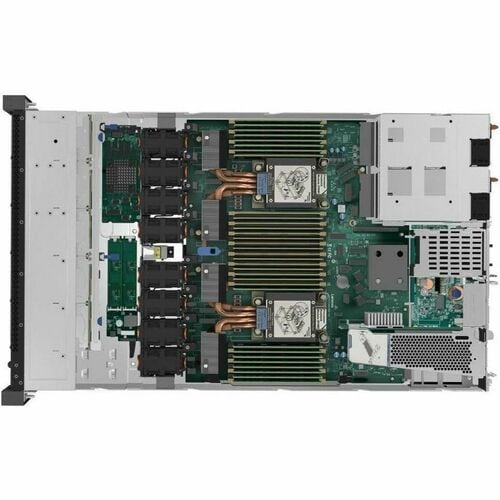

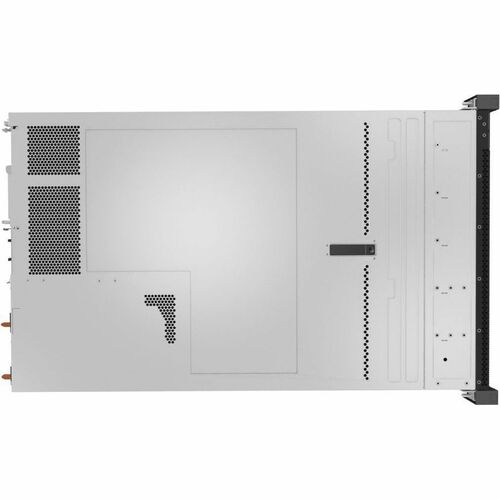

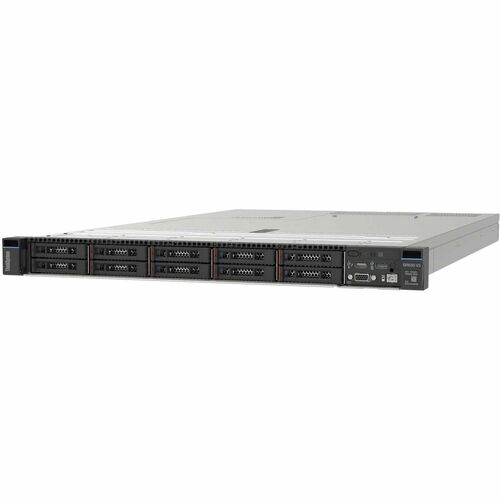

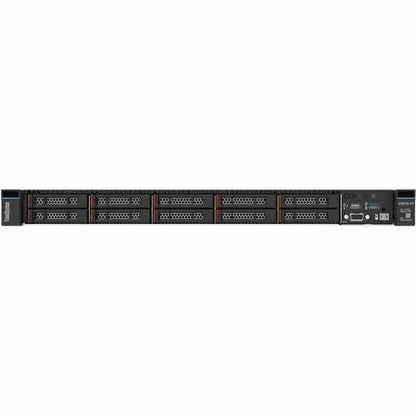

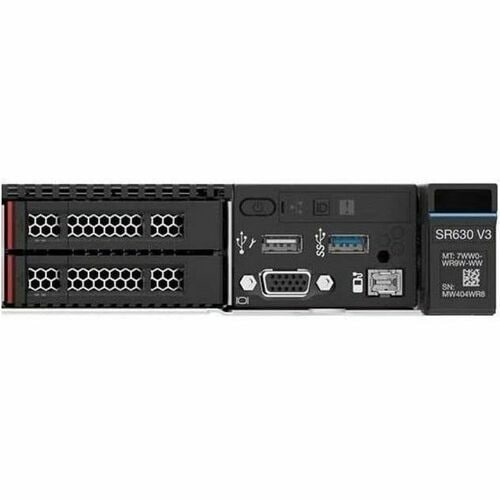

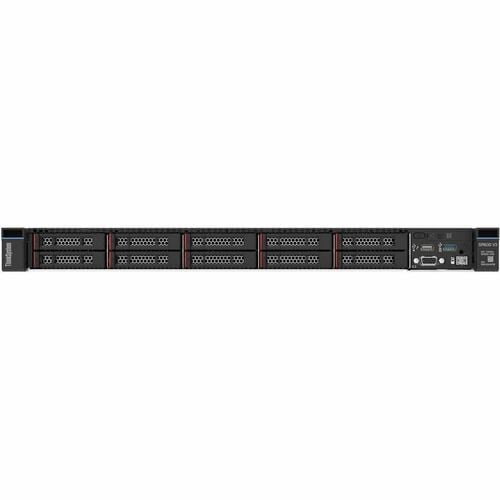

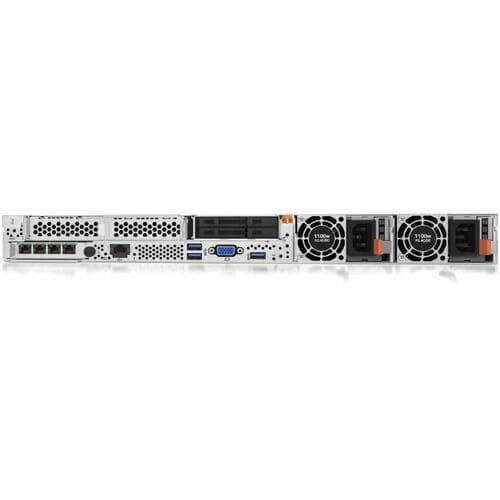

The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- 1 x 750 W power supply unit (PSU) for your system's power requirements
- RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 5, 10, JBOD)
- With 32 GB memory, improve system performance to execute complex applications
Technical Specifications
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Warranty | |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Controllers | |
| RAID Levels | 0, 1, 5, 10, JBOD |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| I/O Expansions | |
| "Number of Internal 2.5"" Bays" | 10 |
| Number of Total Expansion Bays | 10 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 10 |
| Physical Characteristics | |
| Weight (Approximate) | 45.86 lb (20800 g) |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 30.40" (772.16 mm) |
| Interfaces/Ports | |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller (XCC) Standard |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
| Processor | |
| Cache | 30 MB |
| Processor Speed | 2.40 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4510 |
| Processor Core | Dodeca-core (12 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 5th Gen |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7D73A05MNA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D73A05MNA |
| Product Name | ThinkSystem SR630 V3 7D73A05MNA Server |
| Product Line | ThinkSystem |
| Product Series | SR630 V3 |
| Brand Name | Lenovo |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 8 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | No |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 32 |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| China Environmental Labeling Program (CELP) | |
| Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) | |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| China Energy Conservation Program (CECP) | |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8.10 |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 8.7 | |
| Red Hat Enterprise Linux 8.8 | |
| Red Hat Enterprise Linux 8.9 | |
| Red Hat Enterprise Linux 9.0 | |
| Red Hat Enterprise Linux 9.1 | |
| Red Hat Enterprise Linux 9.2 | |
| Red Hat Enterprise Linux 9.3 | |
| Red Hat Enterprise Linux 9.4 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| SUSE Linux Enterprise Server 15 SP5 | |
| Ubuntu 22.04 LTS x64 | |
| Windows Server 2019 | |
| Red Hat Enterprise Linux 8.6 |
