About the product

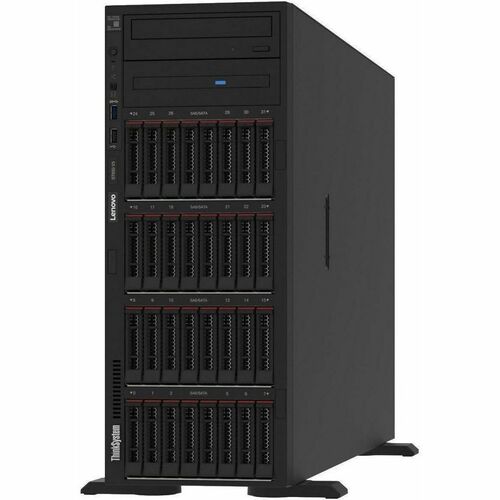

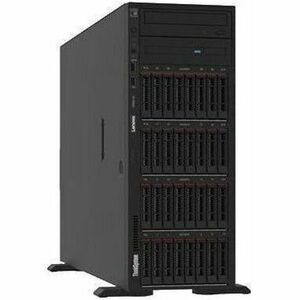

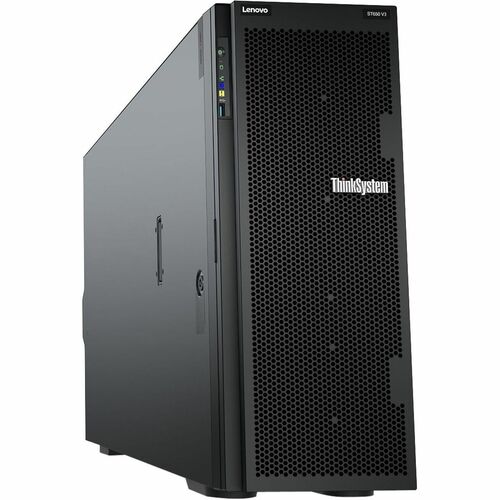

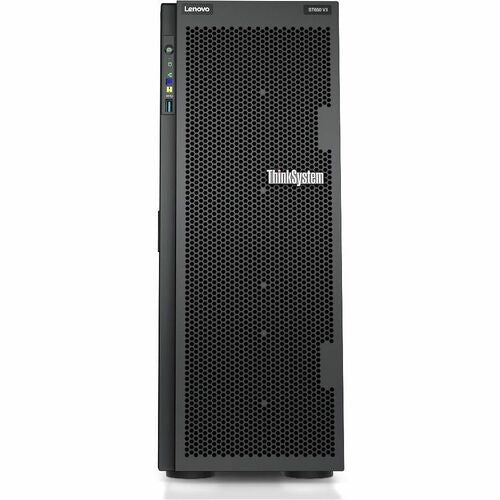

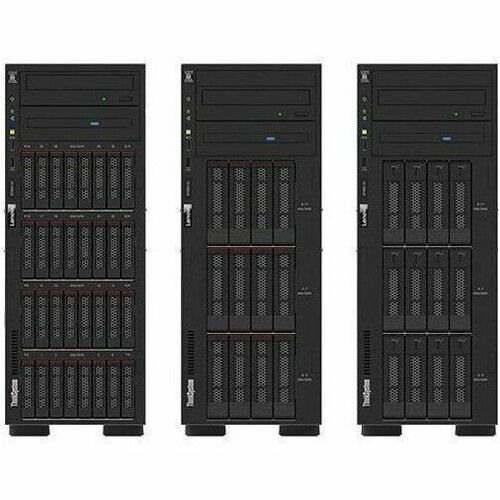

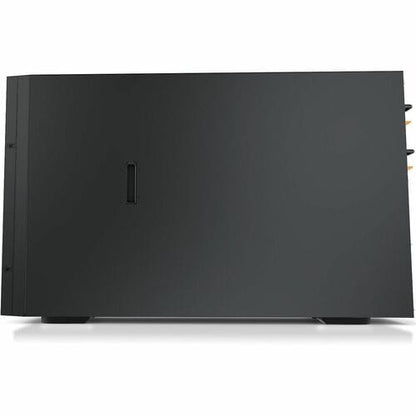

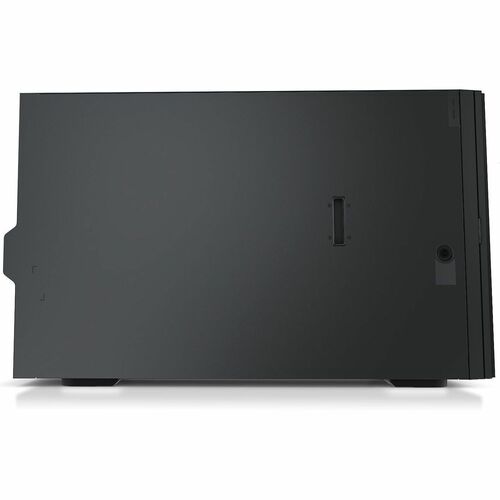

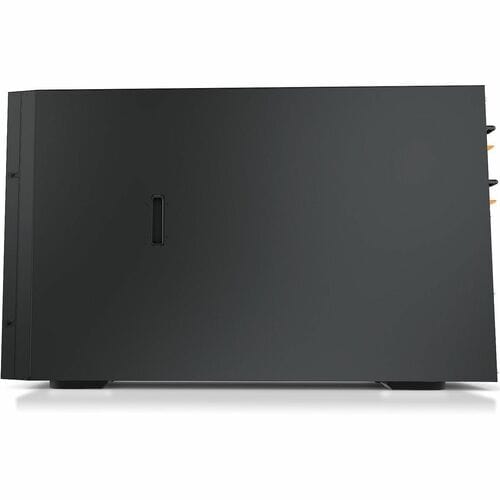

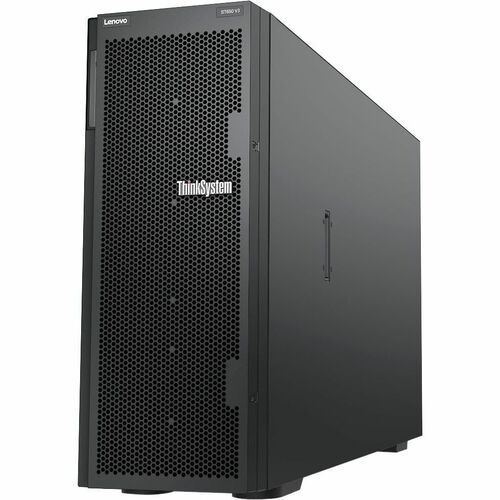

The Lenovo ThinkSystem ST650 V3 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V3 is based on the new 4th generation Intel Xeon Scalable processor family.
The ST650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- 750 W power supply unit (PSU) included
- RAID provides data reliability, fault tolerance and improves overall performance
- With 32 GB memory, improve system performance to execute complex applications
Technical Specifications
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Controllers | |
| Controller Type | Serial ATA |
| 12Gb/s SAS | |
| RAID Supported | Yes |
| Controller Model | 9350-8i |
| Physical Characteristics | |
| Weight (Approximate) | 86.20 lb (39100 g) |
| Form Factor | Tower |

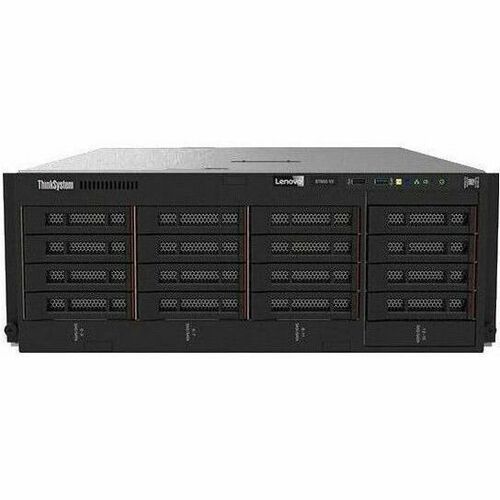

| Rack Height | 4U |
| Height | 18.19" (462 mm) |
| Width | 6.89" (175 mm) |
| Depth | 28.90" (734 mm) |
| I/O Expansions | |
| "Number of External 5.25"" Bays" | 2 |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 10 |
| Total Number of Expansion Slots | 9 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | 9x PCIe slots: 5x PCIe 5.0 and 4x PCIe 4.0 slots. All nine slots are mounted on the system board. Slots 1-8 are full height, full length (FHFL); slot 9 is full height, half length (FHHL). Slots 4-8 require CPU 2 installed. |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 4 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 4.80 GHz |

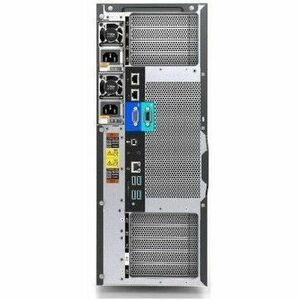

| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XCC Platinum |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
| Processor | |
| Cache | 37.50 MB |
| Processor Speed | 2.50 GHz |
| Processor Type | Xeon Gold |
| Processor Model | 6426Y |
| Processor Core | Hexadeca-core (16 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 4th Gen |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7D7A100ANA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D7A100ANA |
| Product Name | ThinkSystem ST650 V3 7D7A100ANA Server |
| Product Line | ThinkSystem |
| Product Series | ST650 V3 |
| Brand Name | Lenovo |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| GREENGUARD | |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| ENERGY STAR 4.0 | |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8.6 |
| Red Hat Enterprise Linux 8.7 | |
| Red Hat Enterprise Linux 8.8 | |
| Red Hat Enterprise Linux 8.9 | |
| Red Hat Enterprise Linux 9.0 | |
| Red Hat Enterprise Linux 9.1 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 9.3 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| SUSE Linux Enterprise Server 15 SP5 | |
| Ubuntu 22.04 LTS x64 | |
| Windows Server 2019 | |
| Red Hat Enterprise Linux 9.2 |
