About the product

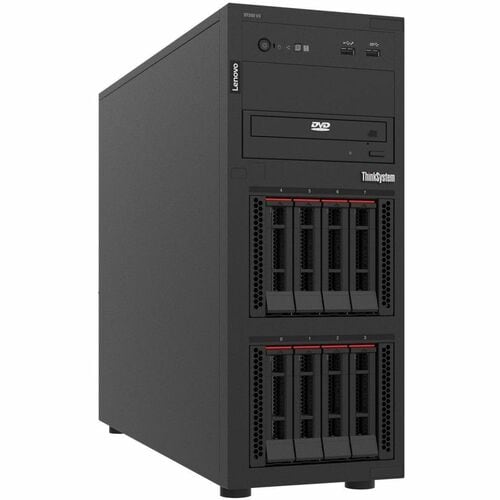

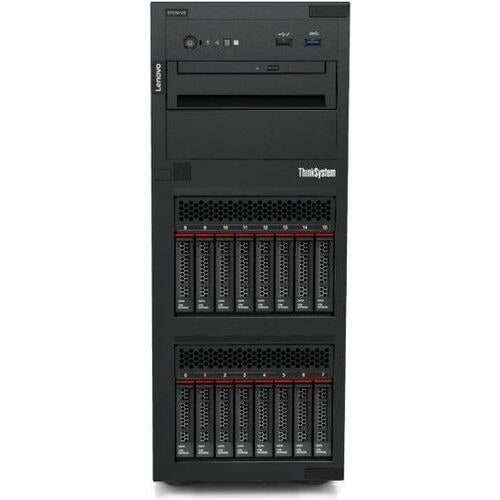

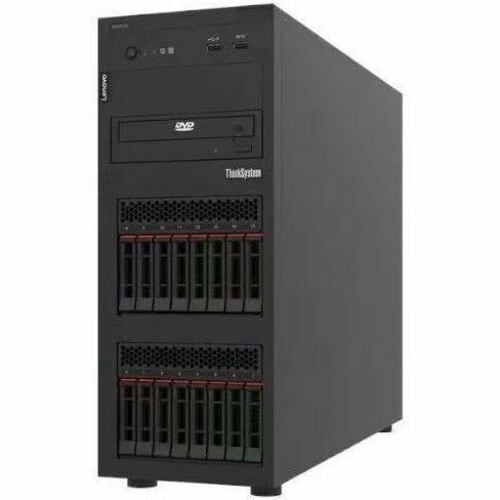

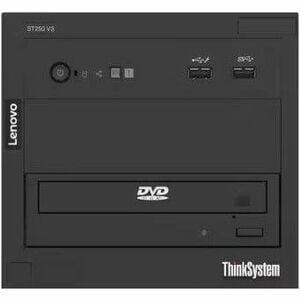

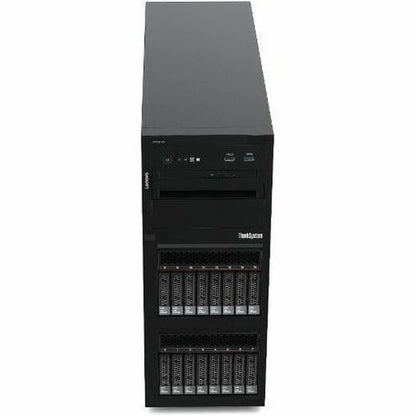

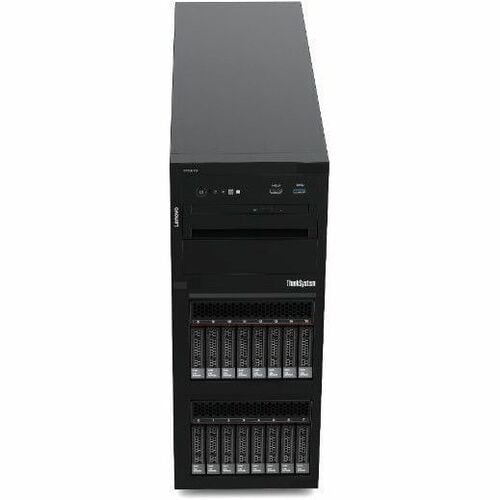

The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".
- Gigabit Ethernet port for ultra-fast network speeds
- 800 W power supply unit (PSU) included
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.20 GHz processor
- RAID provides data reliability, fault tolerance and improves overall performance
- 16 GB memory offers effective multitasking
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C266 |
| Display & Graphics | |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| Controllers | |
| RAID Levels | 0, 1, 5, 10, JBOD |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | 5350-8i |
| Physical Characteristics | |
| Weight (Approximate) | 34.86 lb (15810 g) |
| Form Factor | Tower |
| Height | 17.50" (444.50 mm) |
| Width | 6.90" (175.26 mm) |
| Depth | 22.80" (579.12 mm) |
| I/O Expansions | |
| "Number of External 5.25"" Bays" | 2 |
| Number of Total Expansion Bays | 6 |
| "Number of 3.5"" Bays" | 4 |
| Total Number of Expansion Slots | 4 |
| Hot Swappable Bays | Yes |
| Number of LFF Bays | 4 |
| PCI Express Details | 4x PCIe slots (x4, x16, x4, x4) |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 128 GB |
| Signal Processing | Unregistered (Unbuffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 4.80 GHz |
| Processor | |
| Cache | 16 MB |
| Processor Speed | 3.20 GHz |
| Processor Type | Xeon |
| Processor Model | E-2488 |
| Processor Core | Octa-core (8 Core) |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |

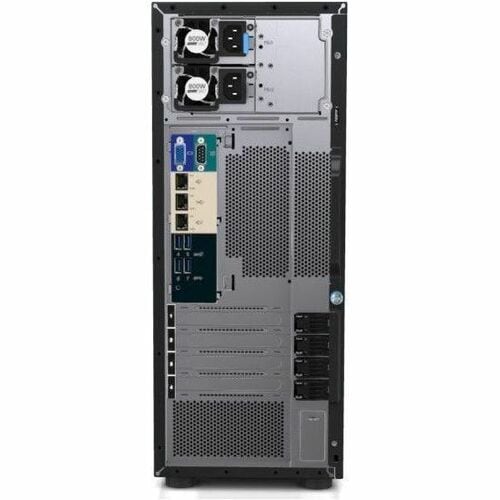

| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 800 W |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7DCEA01UNA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7DCEA01UNA |
| Product Name | ThinkSystem ST250 V3 7DCEA01UNA Server |
| Product Line | ThinkSystem |
| Product Series | ST250 V3 |
| Brand Name | Lenovo |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) | |
| China Environmental Labeling Program (CELP) | |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| ENERGY STAR 4.0 | |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 9.4 |
| SUSE Linux Enterprise Server 15 SP5 | |
| SUSE Linux Enterprise Server 15 SP6 | |
| Ubuntu 22.04 LTS x64 | |
| Ubuntu 24.04 LTS x64 | |
| Red Hat Enterprise Linux 9.3 | |
| Red Hat Enterprise Linux 8.10 | |
| Red Hat Enterprise Linux 8.8 | |
| Red Hat Enterprise Linux 8.9 | |
| Red Hat Enterprise Linux 9.2 | |
| Windows Server 2022 |
