About the product

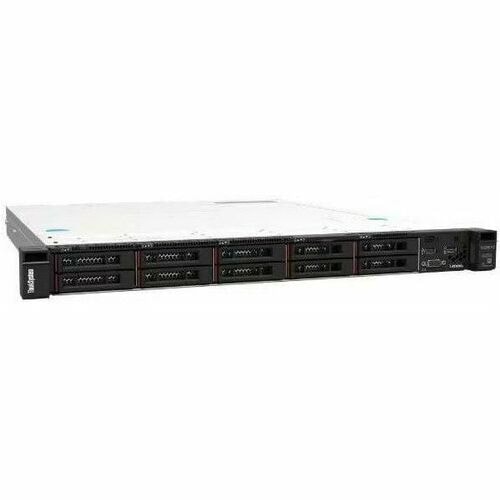

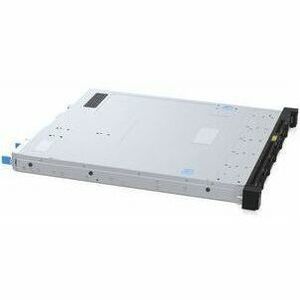

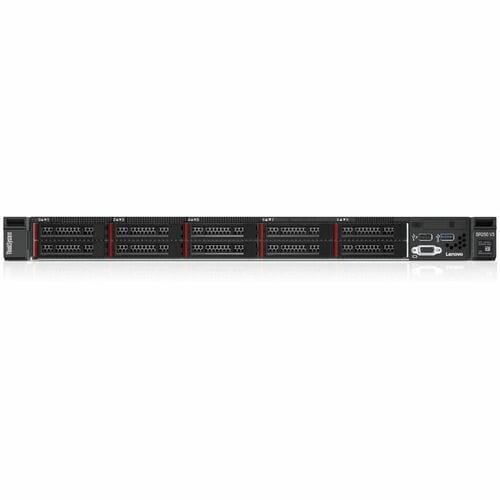

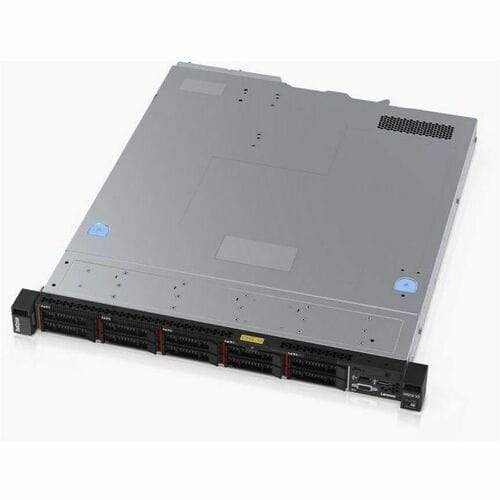

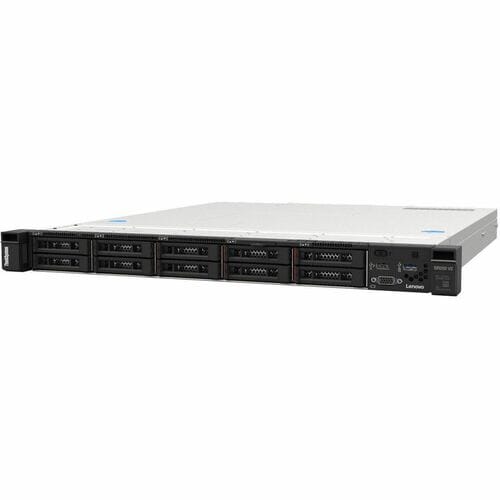

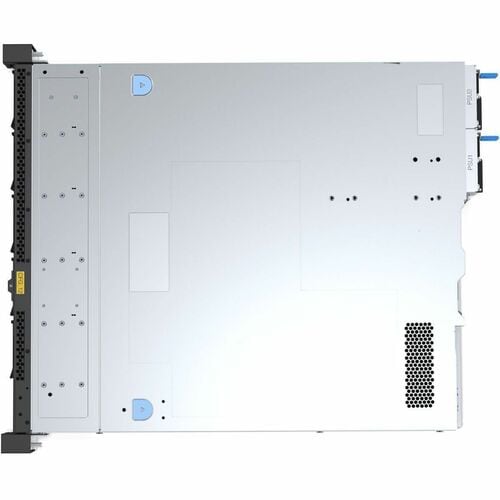

The Lenovo ThinkSystem SR250 V3 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake-E".
This product guide provides essential presales information to understand the ThinkSystem SR250 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR250 V3 and consider its use in IT solutions.
- Gigabit Ethernet port for ultra-fast network speeds
- 2 x 800 W power supply unit (PSU) for your system's power requirements
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 2.80 GHz processor
- 32 GB powerful memory for any computational task
- 6.72 TB SSD provides performance and superior data storage for storing a variety of files including media, documents and more
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C266 |
| Controllers | |
| Controller Type | Serial ATA |
| Controller Model | 5350-8i |
| Display & Graphics | |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| I/O Expansions | |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 3 |
| Number of SFF Bays | 8 |
| PCI Express Details | x8 LP, x8 LP, x8 Int |
| Storage | |
| Solid State Drive Interface | Serial ATA |
| Solid State Drive Configuration | 3 x 1.92TB |
| 2 x 480GB | |
| Total Solid State Drive Capacity | 6.72 TB |
| Number of Solid State Drives | 5 |
| Physical Characteristics | |
| Weight (Approximate) | 25.22 lb (11440 g) |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.69" (43 mm) |
| Width | 17.10" (434.40 mm) |
| Depth | 22.09" (561 mm) |
| Processor | |
| Cache | 16 MB |
| Processor Speed | 2.80 GHz |
| Processor Type | Xeon |
| Processor Model | E-2478 |
| Processor Core | Octa-core (8 Core) |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |

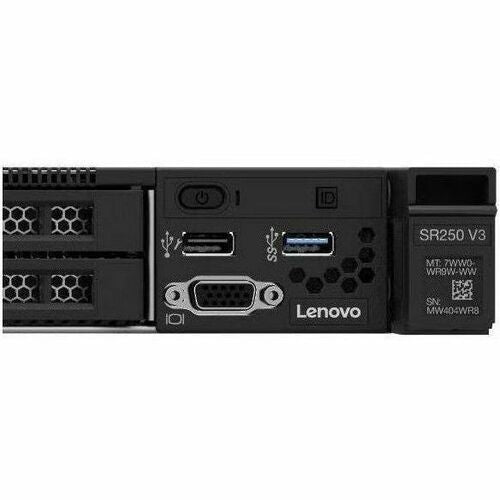

| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller (XCC2) Platinum |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 128 GB |
| Signal Processing | Unregistered (Unbuffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 4 |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7DCL1001NA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7DCL1001NA |
| Product Name | ThinkSystem SR250 V3 7DCL1001NA Server |
| Product Line | ThinkSystem |
| Product Series | SR250 V3 |
| Brand Name | Lenovo |

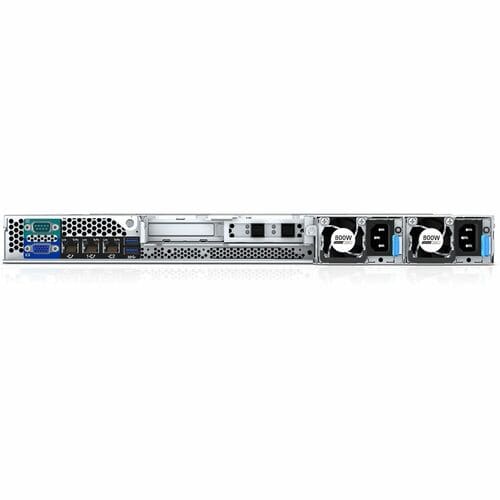

| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 800 W |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| China Environmental Labeling Program (CELP) | |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| China Energy Conservation Program (CECP) | |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8.10 |
| Red Hat Enterprise Linux 8.8 | |
| Red Hat Enterprise Linux 8.9 | |
| Red Hat Enterprise Linux 9.2 | |
| Red Hat Enterprise Linux 9.3 | |
| Windows Server 2022 | |
| SUSE Linux Enterprise Server 15 SP5 | |
| SUSE Linux Enterprise Server 15 SP6 | |
| Ubuntu 22.04 LTS x64 | |
| Ubuntu 24.04 LTS x64 | |
| Red Hat Enterprise Linux 9.4 |
