About the product

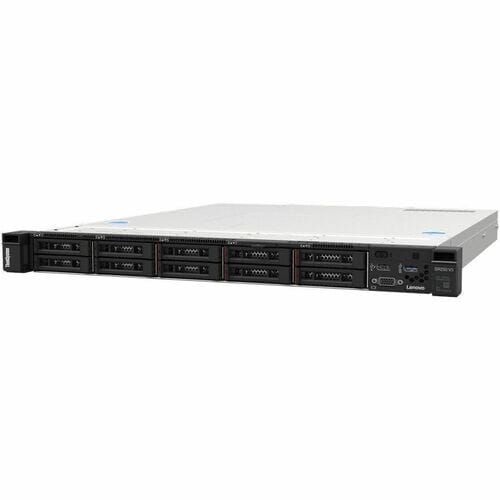

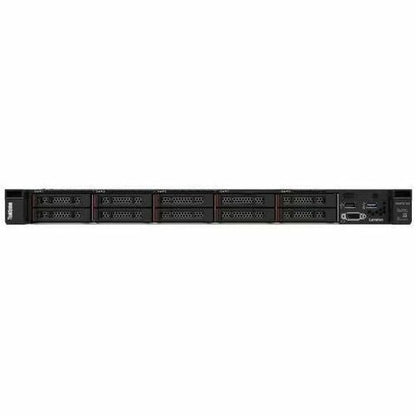

The Lenovo ThinkSystem SR250 V3 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake-E".
This product guide provides essential presales information to understand the ThinkSystem SR250 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR250 V3 and consider its use in IT solutions.
- Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
- 1 x 300 W power supply unit (PSU) included
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.40 GHz processor
- With 16 GB memory, you can multitask between applications smoothly
Technical Specifications
| Controllers | |
| Controller Type | Serial ATA |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C266 |
| Display & Graphics | |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| I/O Expansions | |
| Riser Card | slot1: PCIe Gen4 x8 in x8 (LP); slot2: PCIe Gen4 x8 in x16 slot (LP) |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 3 |
| Number of SFF Bays | 8 |
| PCI Express Details | x8 LP, x8 LP, x8 Int |
| Physical Characteristics | |
| Weight (Approximate) | 25.22 lb (11440 g) |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.69" (43 mm) |
| Width | 17.10" (434.40 mm) |
| Depth | 22.09" (561 mm) |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 300 W |
| Processor | |
| Cache | 8 MB |
| Processor Speed | 3.40 GHz |
| Processor Type | Xeon |
| Processor Model | E-2434 |
| Processor Core | Quad-core (4 Core) |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Interfaces/Ports | |

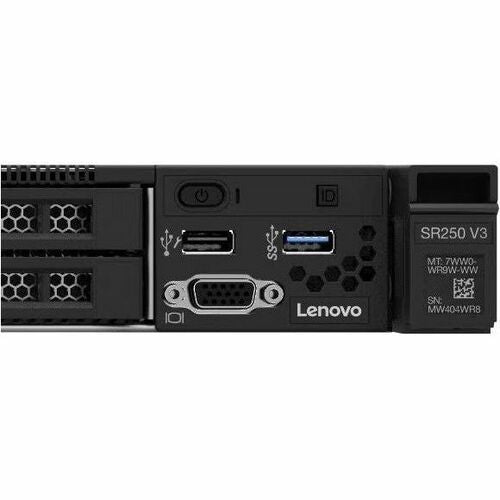

| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller (XCC2) Platinum |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 128 GB |
| Signal Processing | Unregistered (Unbuffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 4 |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7DCLA01WNA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7DCLA01WNA |
| Product Name | ThinkSystem SR250 V3 7DCLA01WNA Server |
| Product Line | ThinkSystem |
| Product Series | SR250 V3 |
| Brand Name | Lenovo |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8.8 |
| Red Hat Enterprise Linux 8.10 | |
| Windows Server 2022 | |
| Ubuntu 22.04 LTS x64 | |
| SUSE Linux Enterprise Server 15 SP5 | |
| Red Hat Enterprise Linux 9.4 | |
| Red Hat Enterprise Linux 9.3 | |
| Red Hat Enterprise Linux 9.2 | |
| Red Hat Enterprise Linux 8.9 | |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| China Environmental Labeling Program (CELP) | |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| China Energy Conservation Program (CECP) | |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
