About the product

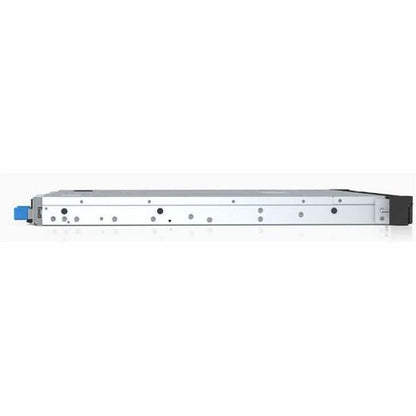

The Lenovo ThinkSystem SR250 V3 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports one Intel Xeon E-2400 Series processor (formerly codenamed "Raptor Lake-E (RPL-E)") or Intel Pentium ("Alder Lake (ADL)") and up to 128 GB of 4800 MHz TruDDR5 ECC memory.
Flexible and scalable internal storage configurations include up to ten 2.5-inch or four 3.5-inch drives with affordable software RAID or advanced hardware RAID protection and a wide selection of drive sizes and types, including NVMe PCIe SSDs, SATA SSDs, and SAS/SATA HDDs. Also, it features integrated dual-port 1 Gb Ethernet NIC and additional PCIe expansion slots for hardware RAID protection, network scalability, and external storage connectivity.
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- 800 W power supply unit (PSU) included
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.30 GHz processor
- With 16 GB memory, improve system performance to execute complex applications
Technical Specifications
| Controllers | |
| Controller Type | Serial ATA |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Three-year customer-replaceable unit (CRU) and onsite limited warranty with next business day response. |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C266 |
| Display & Graphics | |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| I/O Expansions | |
| Riser Card | slot1: PCIe Gen4 x8 in x8 (LP); slot2: PCIe Gen4 x8 in x16 slot (LP) |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 3 |
| Number of SFF Bays | 8 |
| PCI Express Details | x8 LP, x8 LP, x8 Int |
| Physical Characteristics | |
| Weight (Approximate) | 25.22 lb (11440 g) |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.69" (43 mm) |
| Width | 17.10" (434.40 mm) |
| Depth | 22.09" (561 mm) |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 128 GB |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 4 |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 800 W |
| Processor | |
| Cache | 12 MB |
| Processor Speed | 3.30 GHz |
| Processor Type | Xeon |
| Processor Model | E-2456 |
| Processor Core | Hexa-core (6 Core) |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller (XCC2) Standard |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7DCLA01XNA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7DCLA01XNA |
| Product Name | ThinkSystem SR250 V3 7DCLA01XNA Server |
| Product Line | ThinkSystem |
| Product Series | SR250 V3 |
| Brand Name | Lenovo |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| China Energy Conservation Program (CECP) | |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8.10 |
| Red Hat Enterprise Linux 8.8 | |
| Red Hat Enterprise Linux 8.9 | |
| Red Hat Enterprise Linux 9.2 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 9.4 | |
| SUSE Linux Enterprise Server 15 SP5 | |
| Ubuntu 22.04 LTS x64 | |
| Red Hat Enterprise Linux 9.3 |
