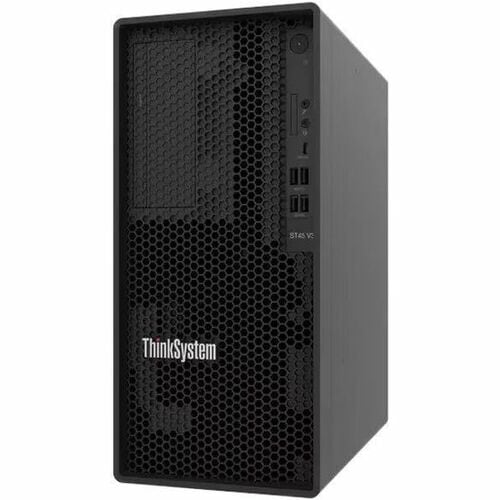

About the product
The Lenovo ThinkSystem ST45 V3 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the AMD EPYC 4004 Series processor (formerly codenamed "Raphael").
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- 300 W power supply unit (PSU) included
- 300 W power supply unit (PSU) fulfills your system's power requirements
- With 16 GB memory, you can multitask between applications smoothly
- With 16 GB memory, improve system performance to execute complex applications
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | PRO-665 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | No |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 9.4 |
| Windows Server 2022 | |
| Ubuntu 24.04 LTS x64 | |
| SUSE Linux Enterprise Server 15 SP6 | |
| Physical Characteristics | |
| Weight (Approximate) | 18.87 lb (8560 g) |
| Form Factor | Tower |
| Height | 14.80" (376 mm) |
| Width | 6.69" (170 mm) |
| Depth | 12.44" (316 mm) |

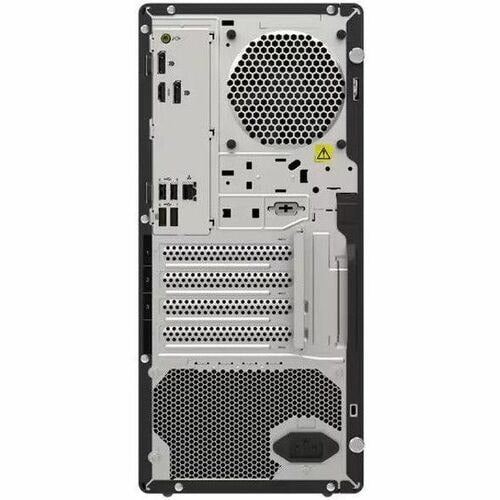

| Interfaces/Ports | |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 4 |
| Number of DisplayPorts | 2 |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 64 GB |
| Signal Processing | Unregistered (Unbuffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 5.60 GHz |
| Total Number of Memory Slots | 2 |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| ENERGY STAR 4.0 | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | No |
| Maximum Power Supply Wattage | 300 W |
| Processor | |
| Cache | 32 MB |
| Processor Speed | 3.80 GHz |
| Processor Type | EPYC |
| Processor Model | 4344P |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | AMD |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7DH51001NA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7DH51001NA |
| Product Name | ThinkSystem ST45 V3 7DH51001NA Server |
| Product Line | ThinkSystem |
| Product Series | ST45 V3 |
| Brand Name | Lenovo |
| I/O Expansions | |
| "Number of External 5.25"" Bays" | 1 |
| "Number of Internal 2.5"" Bays" | 1 |
| Number of Total Expansion Bays | 5 |
| "Number of 3.5"" Bays" | 3 |
| Total Number of Expansion Slots | 2 |
| Hot Swappable Bays | No |
| PCI Express x1 (Gen 3.x) Slots | 1 |
| PCI Express x16 (Gen 3.x) Slots | 1 |
| Number of SFF Bays | 1 |
| Number of LFF Bays | 3 |
| PCI Express Details | Slot 1: PCIe 3.0 x16 full-height half-length (FHHL) (75W) |
| Slot 3: PCIe 3.0 x1 full-height half-length (FHHL) (25W) |
