About the product

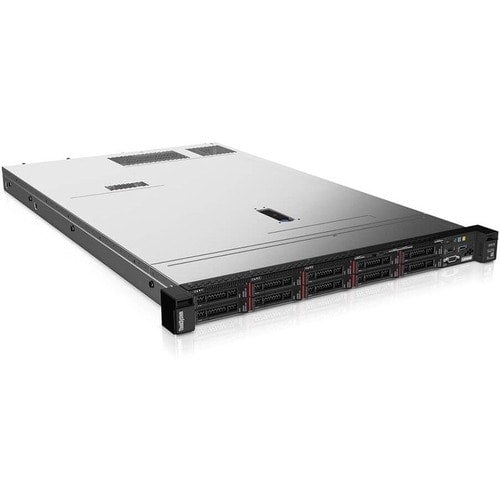

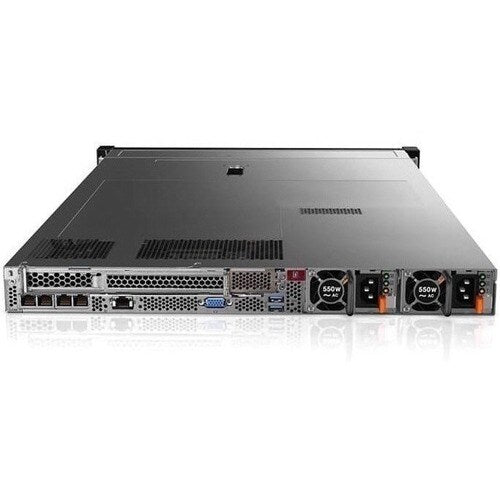

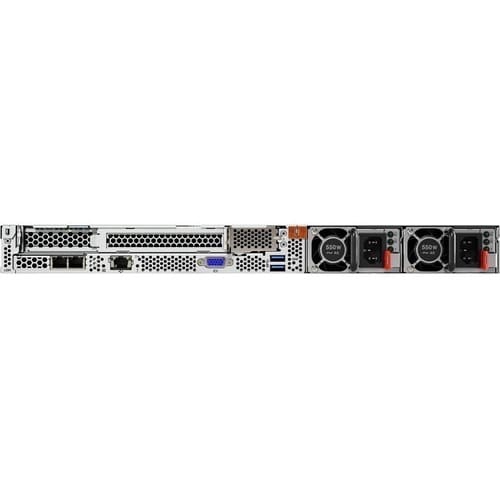

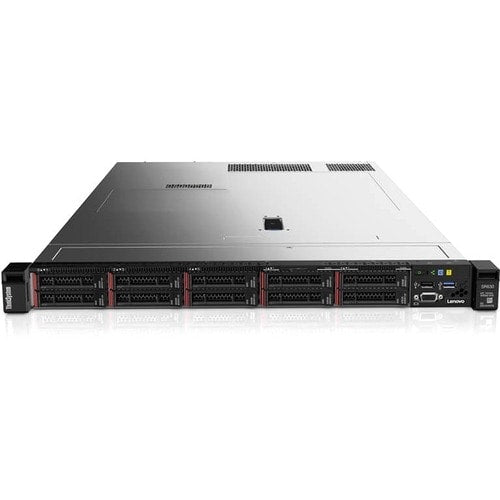

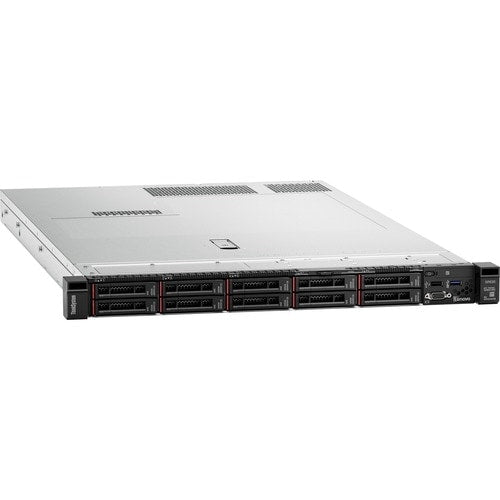

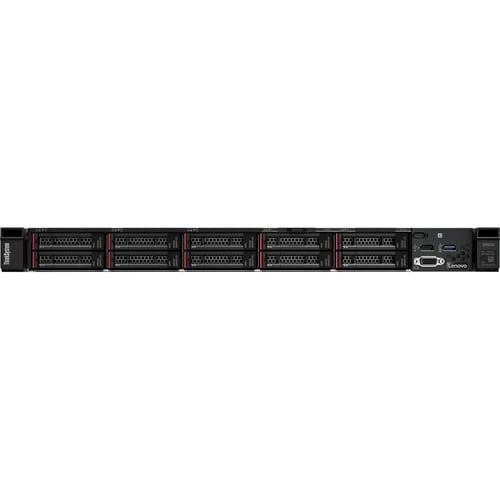

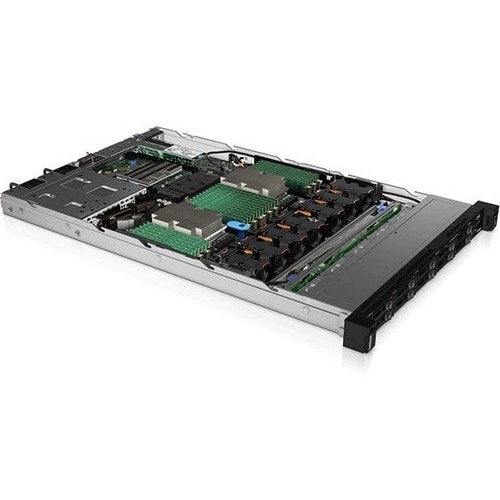

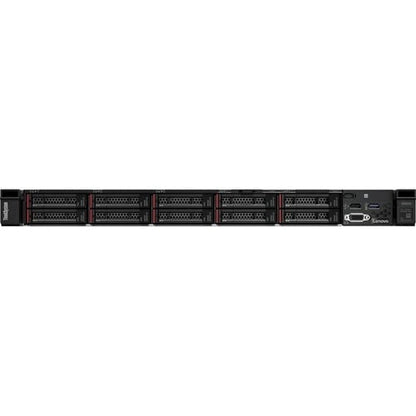

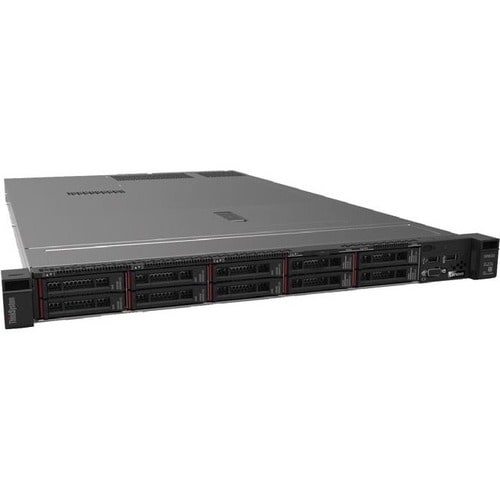

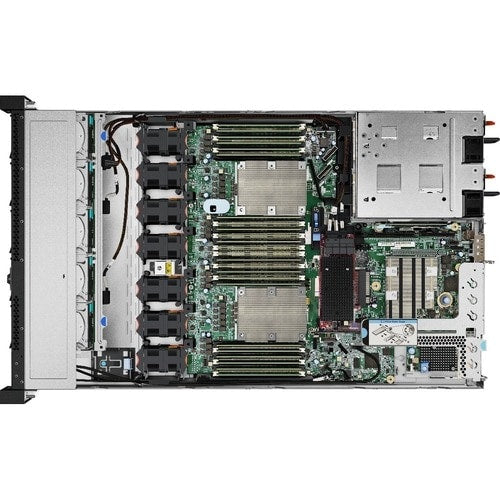

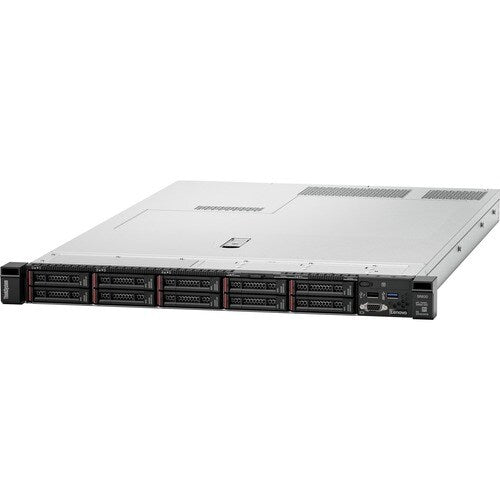

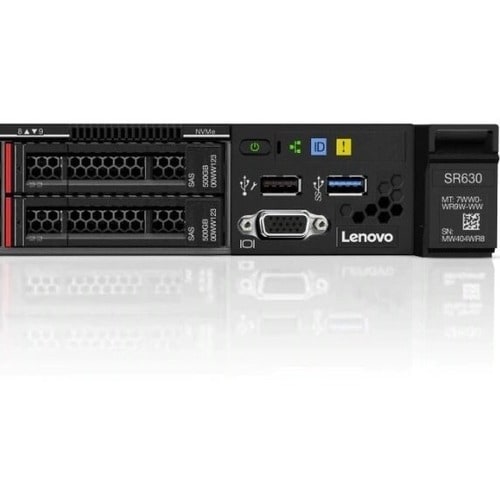

Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- 16 GB powerful memory for any computational task
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Generation | 2nd Gen |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Serial ATA | |
| RAID Supported | Yes |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Number of Power Supplies Supported | 2 |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 41.45 lb (18800 g) |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.10" (434.34 mm) |
| Depth | 29.50" (749.30 mm) |
| Memory | |
| Maximum Memory Supported | 7.50 TB |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 2.93 GHz |
| Total Number of Memory Slots | 24 |
| Interfaces/Ports | |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7X02A0GVNA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X02A0GVNA |
| Product Name | ThinkSystem SR630 7X02A0GVNA Server |
| Product Line | ThinkSystem |
| Product Series | SR630 |
| Brand Name | Lenovo |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 7.6 |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 7.8 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SuSE Linux Enterprise Server 15 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Windows Server 2016 | |
| Windows Server 2019 |
