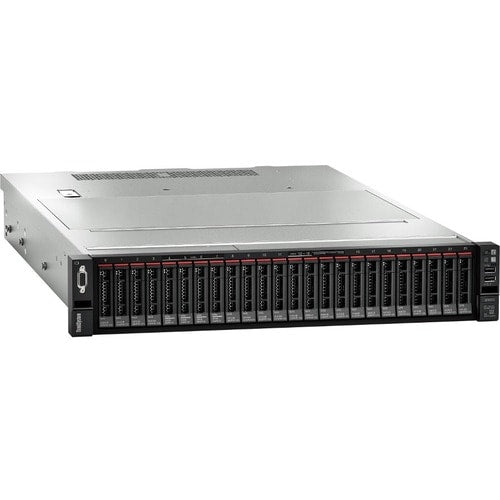

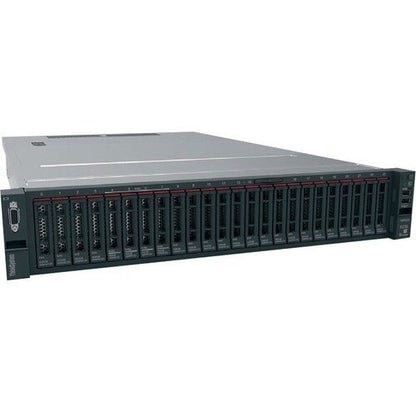

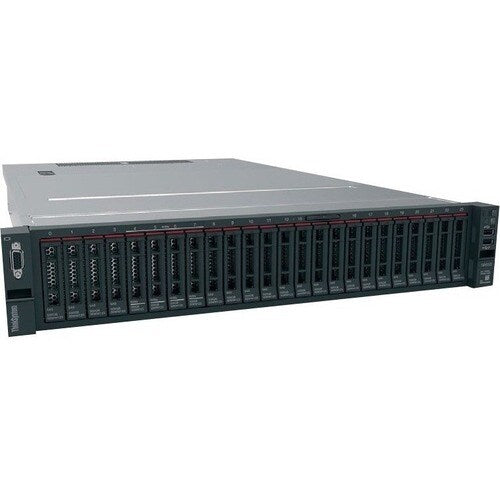

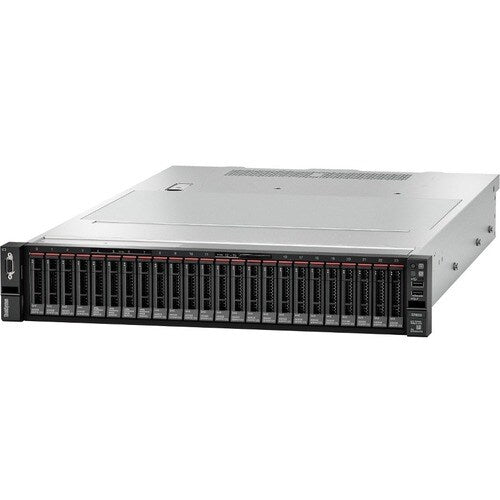

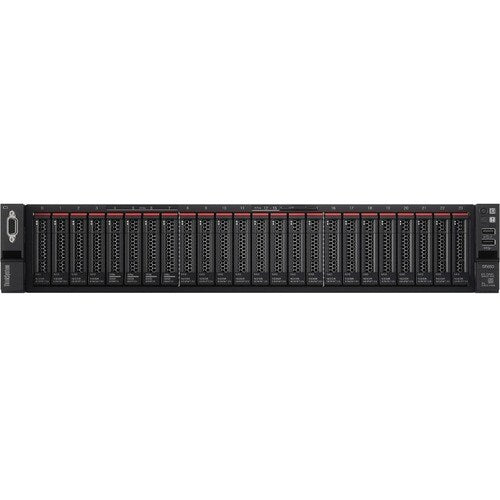

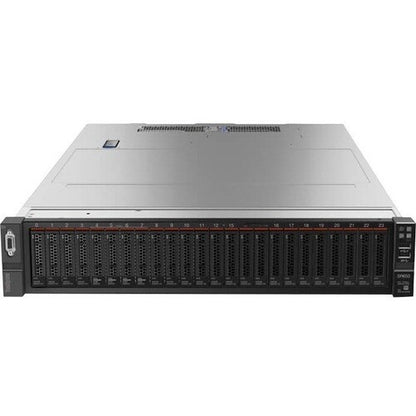

About the product

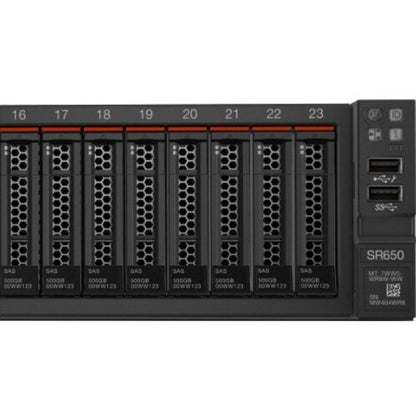

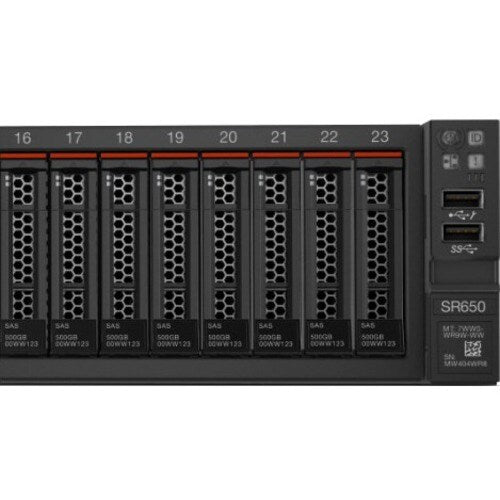

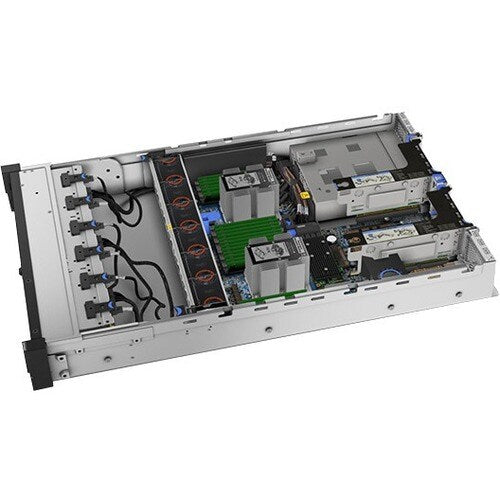

Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.
- Gigabit Ethernet port for ultra-fast network speeds
- 1 x 750 W power supply unit (PSU) for your system's power requirements
- 32 GB powerful memory for any computational task
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
| Storage | |
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
| Controllers | |
| Controller Type | Serial ATA/600 |
| 12Gb/s SAS | |
| RAID Supported | No |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| PCI Express x8 (Gen 3.x) Slots | 2 |
| PCI Express Details | 2x PCIe x8 |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 70.55 lb (32000 g) |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 30.10" (764.54 mm) |
| Memory | |
| Error Checking | ECC |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 2.93 GHz |
| Total Number of Memory Slots | 24 |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
| Processor | |
| Cache | 22 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4216 |
| Processor Core | Hexadeca-core (16 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 2nd Gen |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7X06A0FKNA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X06A0FKNA |
| Product Name | ThinkSystem SR650 7X06A0FKNA Server |
| Product Line | ThinkSystem |
| Product Series | SR650 |
| Brand Name | Lenovo |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Number of VGA Ports | 2 |
| Remote Management Controller | XClarity Controller (XCC) |
| Operating System | |
| Operating System | No |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP4 |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 7.8 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.4 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SuSE Linux Enterprise Server 15 |
