About the product

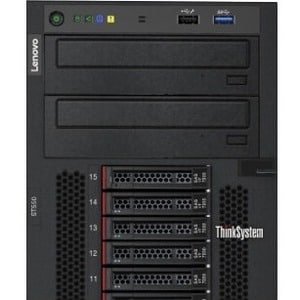

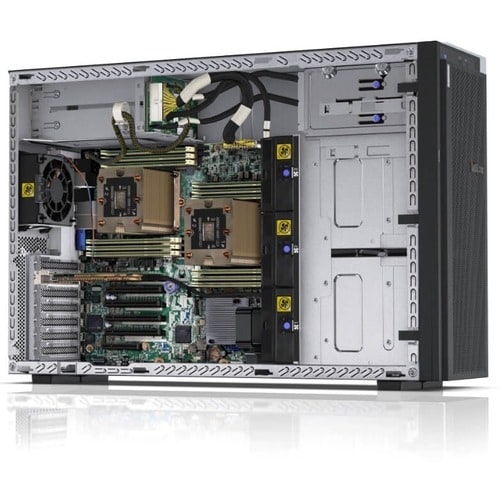

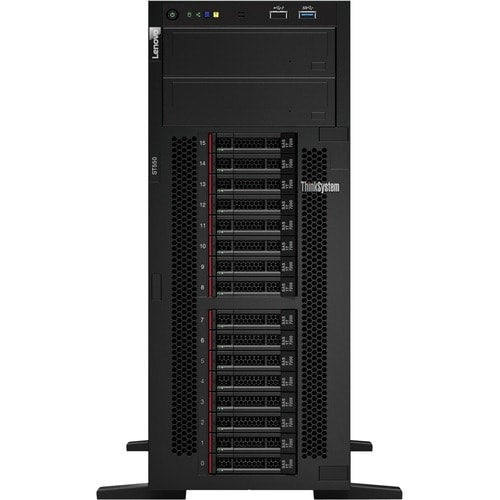

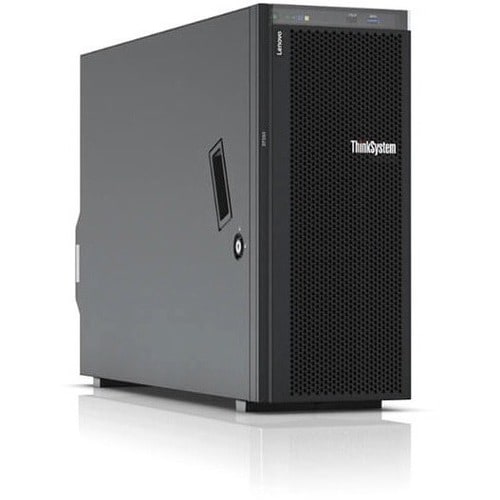

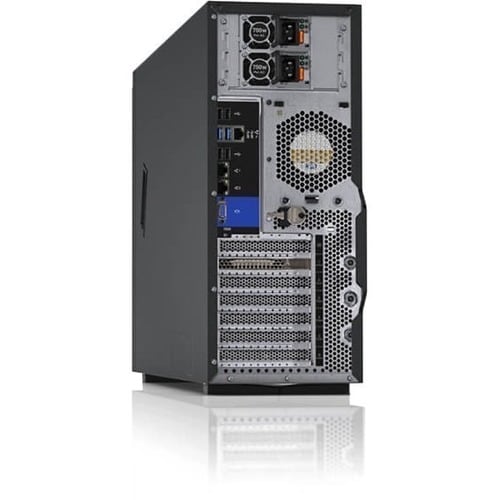

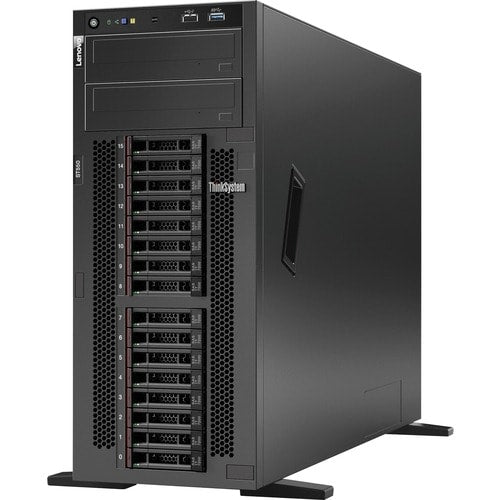

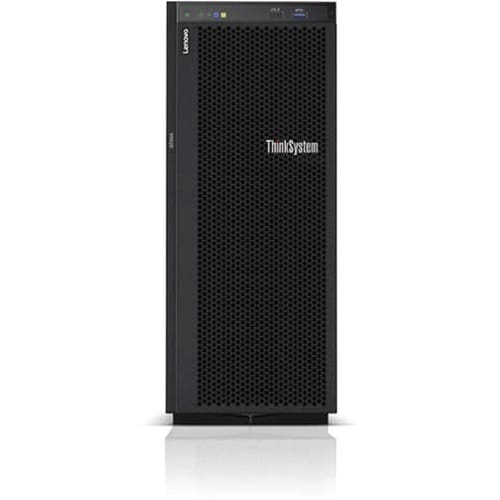

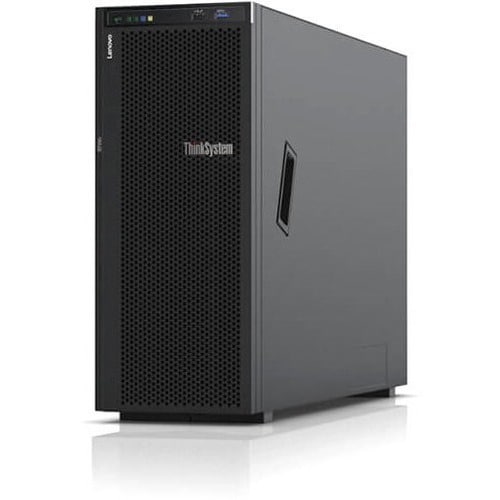

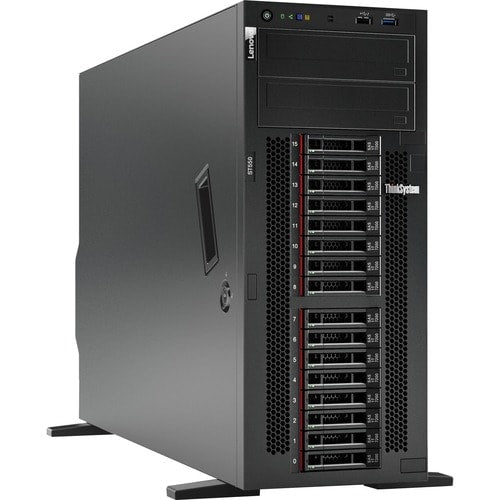

The Lenovo ThinkSystem ST550 2-socket 4U rack-mountable tower server provides outstanding performance and industry-leading reliability. Now available with second-generation Intel Xeon Scalable processors, the ST550 is ideal for small-to-medium businesses, distributed enterprises, retail, educational institutions and branch offices.
- Gigabit Ethernet port for ultra-fast network speeds
- 750 W power supply unit (PSU) included
- RAID provides data reliability, fault tolerance and improves overall performance
- With 32 GB memory, improve system performance to execute complex applications
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Storage | |
| Total Hard Drive Capacity | No |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
| Display & Graphics | |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| Controllers | |
| Controller Type | Serial ATA/600 |
| 12Gb/s SAS | |
| RAID Supported | Yes |
| Controller Model | 5350-8i |
| Physical Characteristics | |
| Weight (Approximate) | 79.37 lb (36000 g) |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 17.20" (436.88 mm) |
| Width | 6.90" (175.26 mm) |
| Depth | 26" (660.40 mm) |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.1 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| "Number of 3.5"" Bays" | 4 |
| Total Number of Expansion Slots | 6 |
| Hot Swappable Bays | Yes |
| PCI Express x16 (Gen 3.x) Slots | 4 |
| PCI Express x8 (Gen 3.x) Slots | 2 |
| Number of LFF Bays | 4 |
| PCI Express Details | Slot 1: PCIe 3.0 x8 (25W), Slot 2: PCIe 3.0 x16 (75W), Slot 3: PCIe 3.0 x16 (75W), Slot 4: PCIe 3.0 x16 (x8 wired) (25W), Slot 5: PCIe 3.0 x16 (75W), Slot 6: PCIe 3.0 x8 (x4 wired) (25W) |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 768 GB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 2.93 GHz |
| Total Number of Memory Slots | 12 |
| Processor | |
| Cache | 8.25 MB |
| Processor Speed | 1.90 GHz |
| Processor Type | Xeon Bronze |
| Processor Model | 3204 |
| Processor Core | Hexa-core (6 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 2nd Gen |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7X10A0EJNA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X10A0EJNA |
| Product Name | ThinkSystem ST550 7X10A0EJNA Server |
| Product Line | ThinkSystem |
| Product Series | ST550 |
| Brand Name | Lenovo |

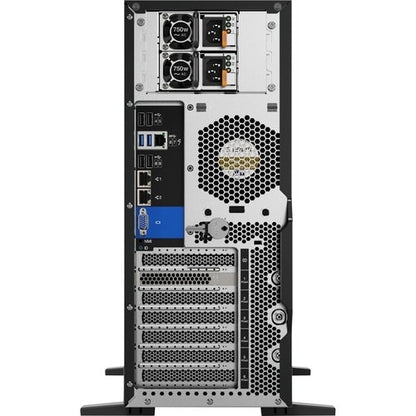

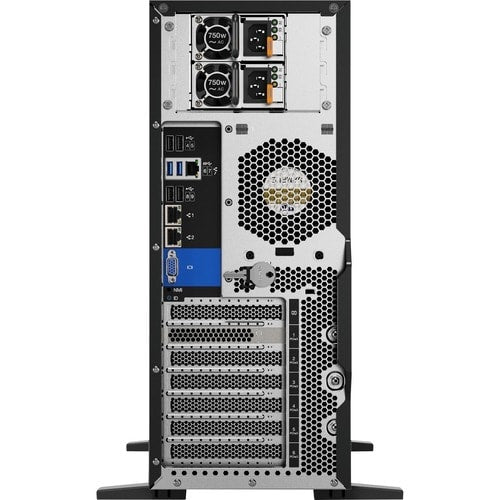

| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 5 |
| Number of USB 3.0 Ports | 4 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
| Operating System | |
| Operating System | No |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP3 |
| SUSE Linux Enterprise Server 15 SP1 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 7.8 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 9.0 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SuSE Linux Enterprise Server 15 |
