About the product
Lenovo ThinkSystem DE4000F is a scalable, all flash entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000F is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, and other storage I/O-intensive applications.

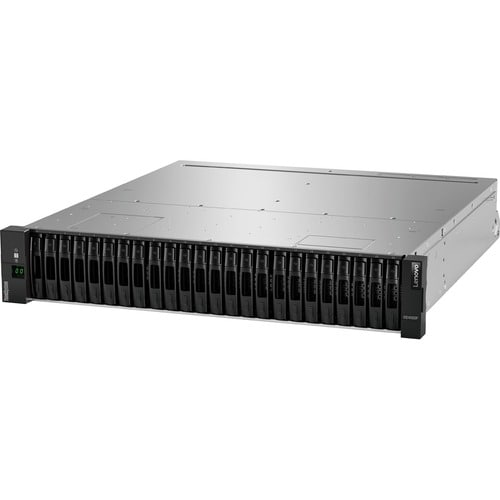

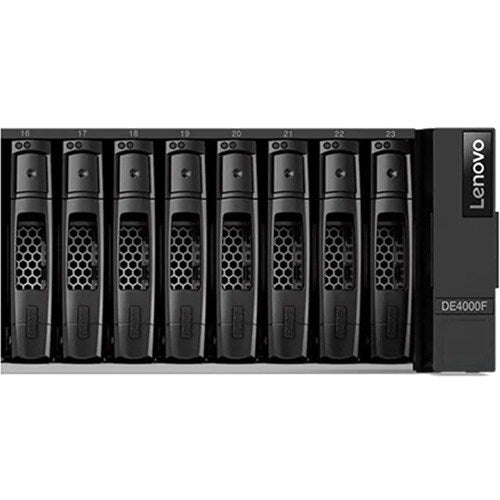

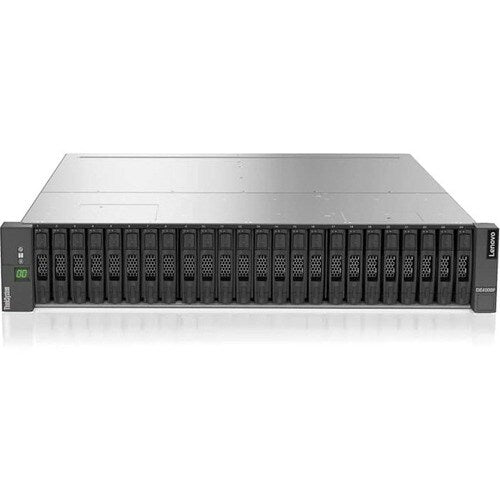

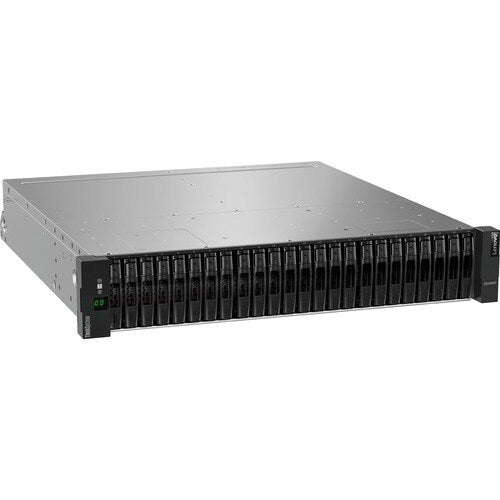

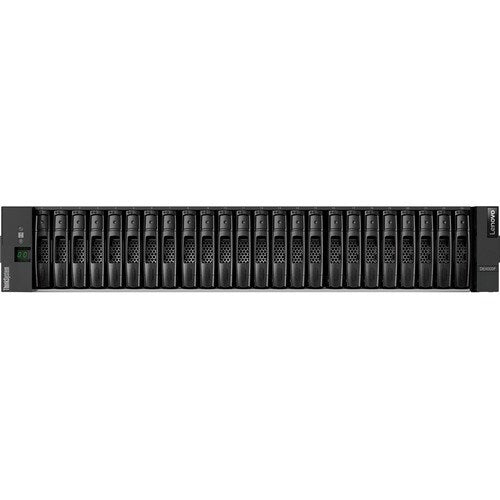

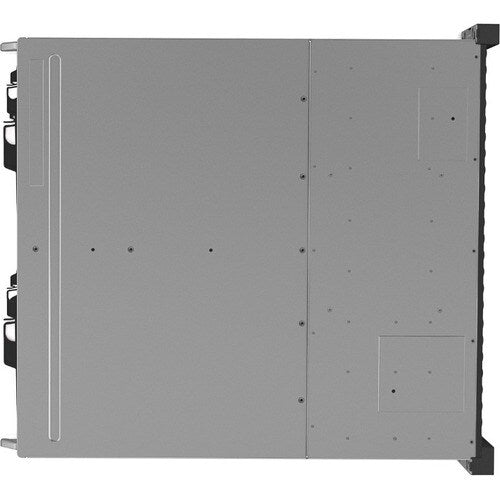

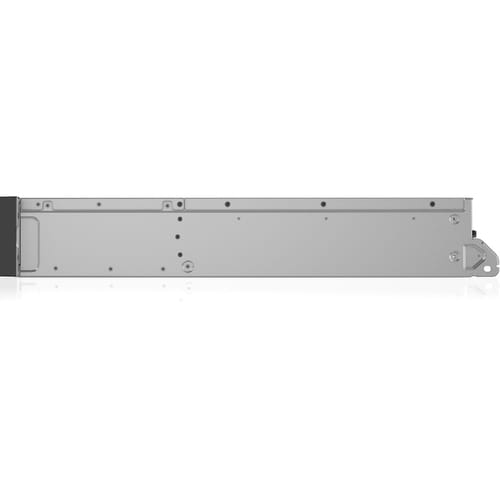

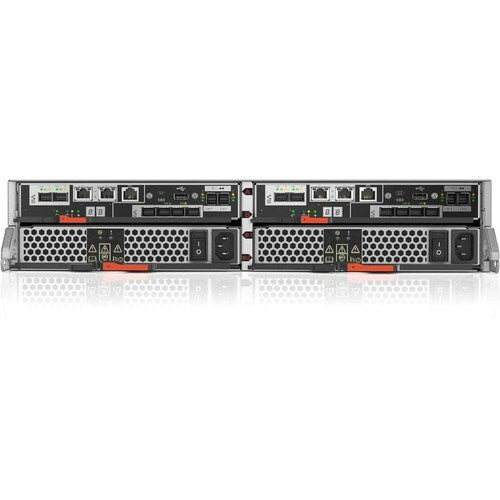

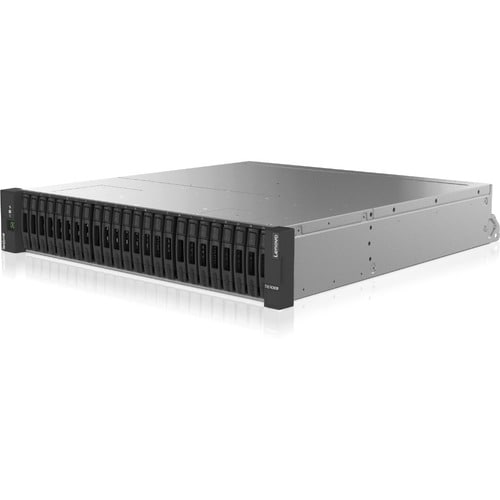

ThinkSystem DE4000F models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) and include two controllers, each with 32 GB memory for a system total of 64 GB. Host interface cards provide 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000F Storage Array scales up to 96 solid-state drives (SSDs) with the attachment of 3 Lenovo ThinkSystem DE240S 2U24 SFF Expansion Enclosures.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Through RAID levels (0, 1, 3, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
Technical Specifications
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| "Number of 2.5"" Bays" | 24 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| 25 Gigabit Ethernet | |
| Gigabit Ethernet | |
| Storage | |
| Number of Hard Drives Supported | No |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 0 |
| Controllers | |
| RAID Levels | 0, 1, 3, 5, 6, 10 |
| Controller Type | 12Gb/s SAS |
| Number of Controllers | 2 |
| RAID Supported | Yes |

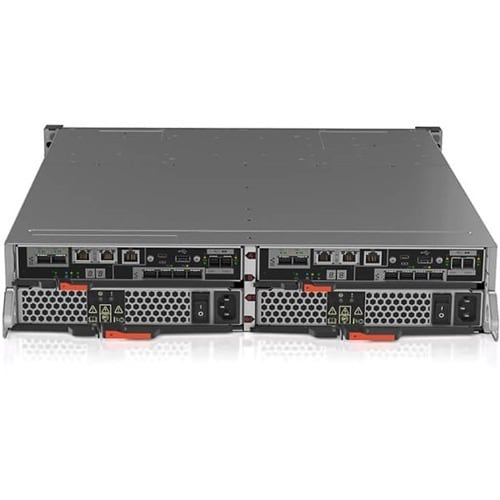

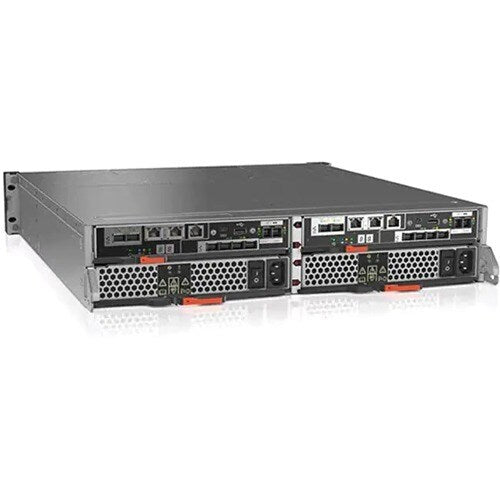

| Power Description | |
| Plug/Connector Type | C13 to IEC 320-C14 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 913 W |
| Management & Protocols | |
| Protocols | SNMP |
| SMI-S | |
| SSL | |
| SSH | |
| iSCSI | |
| LDAP | |
| Physical Characteristics | |
| Weight (Approximate) | 54.21 lb (24590 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.35" (85 mm) |
| Width | 17.68" (449 mm) |
| Depth | 21.77" (553 mm) |
| Interfaces/Ports | |
| Host Interface | iSCSI |
| 12Gb/s SAS | |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Number of SAS Ports (External) | 4 |
| Number of iSCSI Ports | 12 |
| General Information | |
| Product Type | SAN Storage System |
| Manufacturer Part Number | 7Y76A00GWW |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | DE4000F |
| Product Name | ThinkSystem DE4000F SAN Storage System |
| Product Line | ThinkSystem |
| Product Series | DE |
| Brand Name | Lenovo |
