About the product

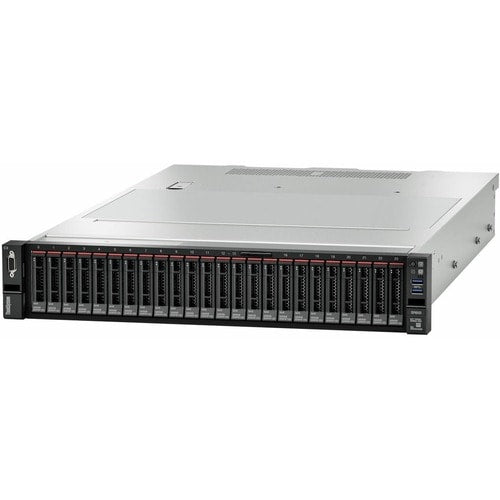

The Lenovo ThinkSystem SR655 is a 1-socket 2U server that features the AMD EPYC 7002 "Rome" and AMD EPYC 7003 "Milan" families of processors. With up to 64 cores per processor and support for the PCIe 4.0 standard for I/O, the SR655 offers the ultimate in single-socket server performance.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- 750 W power supply unit (PSU) included
- With 32 GB memory, improve system performance to execute complex applications
Technical Specifications
| Chipset | |
| Chipset Manufacturer | AMD |
| Controllers | |
| Controller Type | Serial ATA |
| I/O Expansions | |
| Hot Swappable Bays | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Graphics Memory Capacity | 512 MB |
| Storage | |
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Physical Characteristics | |
| Weight (Approximate) | 78 lb (35380.20 g) |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 30.10" (764.54 mm) |
| Interfaces/Ports | |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of VGA Ports | 2 |
| Number of USB 3.1 Type-A Ports | 4 |
| Remote Management Controller | Lenovo XClarity |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 2 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 16 |
| Processor | |
| Cache | 128 MB |
| Processor Speed | 2.50 GHz |
| Processor Type | EPYC |
| Processor Model | 7502P |
| Processor Core | Dotriaconta-core (32 Core) |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Generation | 2nd Gen |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7Z01A03JNA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7Z01A03JNA |
| Product Name | ThinkSystem SR655 7Z01A03JNA Server |
| Product Line | ThinkSystem |
| Product Series | SR655 |
| Brand Name | Lenovo |
| Operating System | |
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 8.1 |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 7.8 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 |
Product compare
Product warranty
Standard manufacturer warranty as applicable
Return policy
15 days return in original condition.
Price guarantee
!00% we are always lower than market price.
