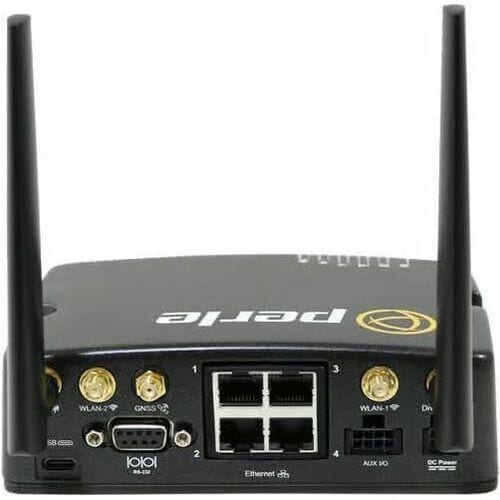

IRG5541+ LTE-A PRO 600M ROUTER 4X ETHERNET SERIAL GPIO ANT

IRG5541+ LTE Router with integrated: LTE-A PRO (CAT12 600M / 150M), GPS/GNSS, Wireless LAN (2.4/5 GHz), 4 x 10/100/1000 RJ45 Ethernet, USB-C Port, RS232, 3 x GPIO, IGN (ignition sense pin), Relay output, RS485 half-duplex, IP54 enclosure. GPIO Cable w/4 pin plug and LTE antennas included.

Perle IRG5541+ LTE Routers and Gateways have the most comprehensive set of features, functionality, and performance to provide primary or failover back-up connectivity to remote infrastructure and assets. These ultra-low-power, rugged, high-performance Cellular Routers, with dual-SIM slots, are easily deployed with no need for training because of the intuitive web GUI. For advanced admin scrips, CLI commands are also available.

• TE Router for Primary or Failover Connectivity
• Support for 24x LTE Bands and 9x UMTS/WCDMA Bands
• LTE-A PRO CAT12. 600Mbps downlink and 150Mbps uplink speeds.
• 4-port 10/100/1000 Ethernet
• Network connectivity via LTE, 10/100/1000 Ethernet, USB 3.2, and RS232/RS485 Serial
• One GPIO configurable as high side pull-up / dry contact, analog input, digital input, low side current sink output, digital output/open drain, or Pulse Counter.
• One GPIO configurable as Vehicle ignition sense or analog input
• Two Digital Inputs configurable as high side pull-up / dry contact, digital input, or Pulse Counter
• One normally open (NO) relay contact
• Ultra-Low-Power consuming less than 1 Watt in idle mode and 53mW in standby mode
• Rugged die-cast aluminum IP54 enclosure for dust & water ingress
• Shock and vibration resistance certified to MIL-STD-810G, SAE J1455 & EN 61373
• Hazloc per IECEx/IECx, ATEX, & ANSI/ISA Class 1 Div 2
• -40F to 158F ( -40C to 70C ) operating temperature
• GPS / Global Navigation Satellite System (GNSS) Included
• E-Mark Certification, ISO 7637-2, and ISO 16750-2 Compliance
• Built-in battery charge protection, with no requirement for external power conditioning, to safeguard vehicle operation
• Vehicle awareness applications can be used to remotely monitor vehicle speed, acceleration, position, and more.
• Ignition Power Management can schedule a delayed shutdown or startup of the IRG5541+ based on the vehicle ignition status
• European Railway Certifications EN50155 & EN50121
• International Railway Certifications IEC60571 & IEC62236
• Cellular tower connectivity can be established and maintained at up to 360kph (224mph)

With extensive protocol routing support (RIP, OSPF, BGP-4, IPv4, IPv6, OpenVPN, IPSec VPN, and DHCP), integrated zone-based policy firewall, 2 Factor Authentication, and remote authentication (RADIUS, TACACS+) management, the IRG5541+ LTE Router will integrate seamlessly with enterprise-grade systems in hierarchical or large mesh network structures to control access to devices in the field and protect inside networks from unauthorized access.

• Gigabit Ethernet port for ultra-fast wired network speeds
• Maximize the throughput for smoother and faster HD video streaming and file transfer by utilizing the ISM Band
• Access USB-compatible peripherals accross the wireless network via built-in USB port
