About the product
The 8000 series is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install. Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8"" throw.

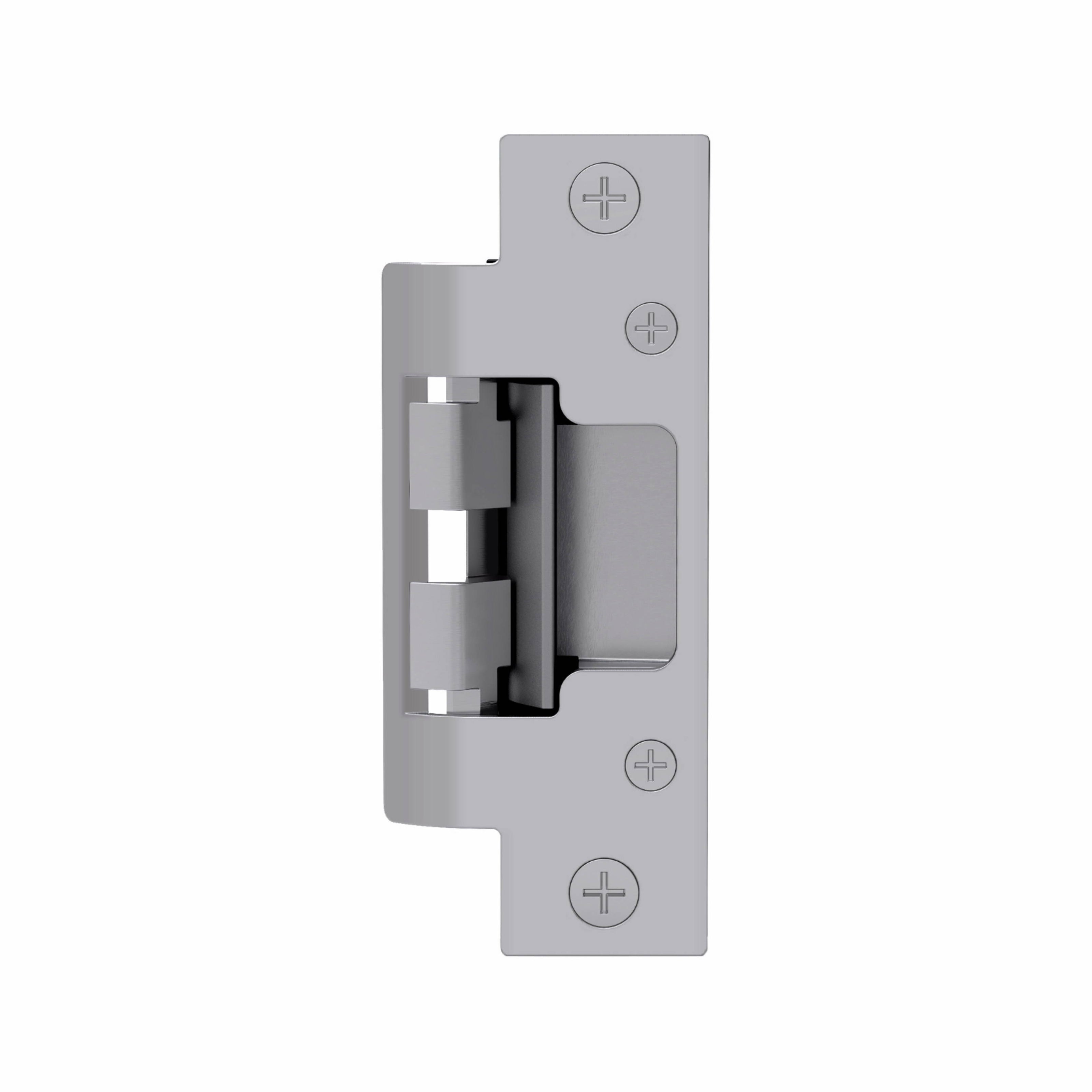

HES 8000C-12/24D-630 Universal Electric Strike - Complete includes 801 and 801A faceplates:
- No cutting on frame required
- Vertical adjustability to accommodate door sag and misalignment
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
- Non-handed
- Internally mounted solenoid
- Accommodates 1/2"" – 5/8"" cylindrical latchbolt (5/8"" with 1/8"" door gap)
- Strike body depth 1-1/16
- Strike body width decreased to 1-7/16"" to increase frame compatibility
- Dual voltage 12 or 24 VDC/VAC
Technical Specifications
The 8000 series is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install. Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8"" throw.
HES 8000C-12/24D-630 Universal Electric Strike - Complete includes 801 and 801A faceplates:
- No cutting on frame required
- Vertical adjustability to accommodate door sag and misalignment
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
- Non-handed
- Internally mounted solenoid
- Accommodates 1/2"" – 5/8"" cylindrical latchbolt (5/8"" with 1/8"" door gap)
- Strike body depth 1-1/16
- Strike body width decreased to 1-7/16"" to increase frame compatibility
- Dual voltage 12 or 24 VDC/VAC
