About the product

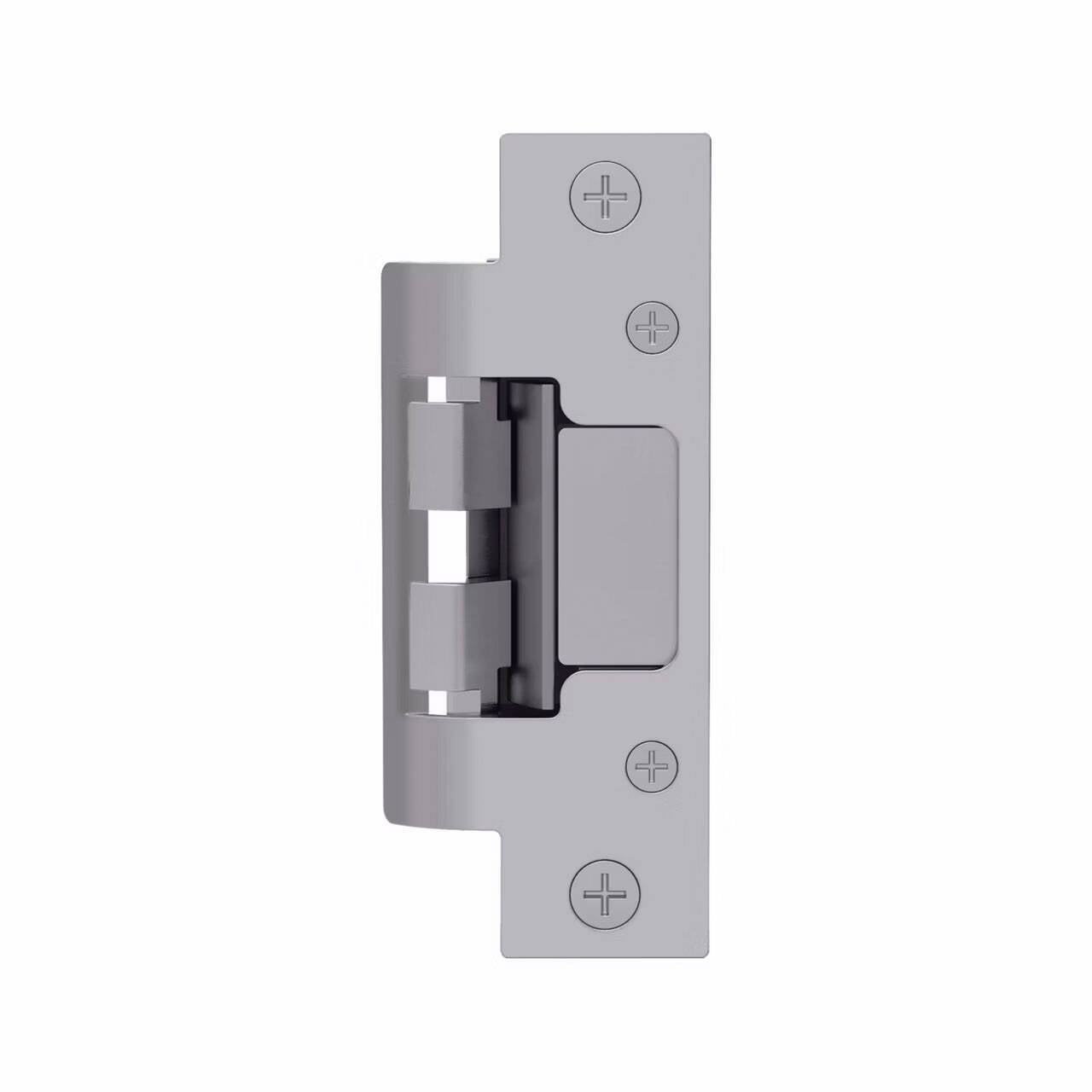

The HES 8300C Series Electric Strike kit is a compact, high-performance, fire-rated electric strike for cylindrical locksets with 5/8’’ throw latchbolts. Installation is simple with no cutting on the frame required for 4-7/8’’ ANSI prep. The strength of the unique keeper pin lock ensures high-performance latching for high-traffic doors with up to 1 million cycles, 1500 lbs of static strength, and 70 ft-lbs of dynamic strength backed by a tamper-resistant, burglary-rated, stainless steel design. Ensures a robust, permanent access control solution for commercial and industrial installations.
Includes 801 and 801A faceplates for versatile installation. Complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. Non-handed design for right or left side installation.
8300C-630 Specs and Features
- Compatible with metal, aluminum and wood frames
- Dual voltage 12/24VAC/VDC input @ 240mA, PoE friendly
- Stainless steel construction
- Vertical adjustable for alignment of sagging or misaligned doors
- Field-selectable fail safe/secure
- Includes 801 and 801A faceplates
- Certifications:
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- RoHS compliant
- UL 10C fire rated, 3-hour single door (fail secure only)
- CAN/ULC-S104 fire door conformant
- NFPA-252 fire door compliant
- ASTM-E152 fire door compliant
- NFPA 80-07 compliant
- 5 Year Limited Manufacturer’s Warranty
Technical Specifications
The HES 8300C Series Electric Strike kit is a compact, high-performance, fire-rated electric strike for cylindrical locksets with 5/8’’ throw latchbolts. Installation is simple with no cutting on the frame required for 4-7/8’’ ANSI prep. The strength of the unique keeper pin lock ensures high-performance latching for high-traffic doors with up to 1 million cycles, 1500 lbs of static strength, and 70 ft-lbs of dynamic strength backed by a tamper-resistant, burglary-rated, stainless steel design. Ensures a robust, permanent access control solution for commercial and industrial installations.
Includes 801 and 801A faceplates for versatile installation. Complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. Non-handed design for right or left side installation.
8300C-630 Specs and Features
- Compatible with metal, aluminum and wood frames
- Dual voltage 12/24VAC/VDC input @ 240mA, PoE friendly
- Stainless steel construction
- Vertical adjustable for alignment of sagging or misaligned doors
- Field-selectable fail safe/secure
- Includes 801 and 801A faceplates
- Certifications:
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- RoHS compliant
- UL 10C fire rated, 3-hour single door (fail secure only)
- CAN/ULC-S104 fire door conformant
- NFPA-252 fire door compliant
- ASTM-E152 fire door compliant
- NFPA 80-07 compliant
- 5 Year Limited Manufacturer’s Warranty
