Netgear

24 PORT GIGABIT ETHERNET SWITCH

24 PORT GIGABIT ETHERNET SWITCH

Regular price $172.44 CAD
Regular price $193.13 CAD Sale price $172.44 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.

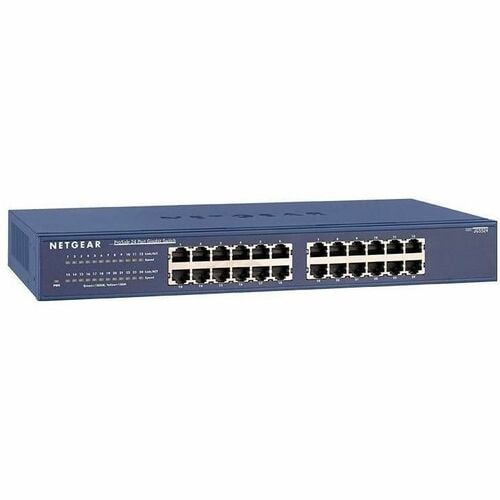

Netgear ProSafe JGS524 24-Port Gigabit Ethernet Switch - 24 x 10/100/1000Base-T



VPN: JGS524NA      SKU: 425513NDS     UPC: 606449036459



  • Gigabit Ethernet port for ultra-fast network speeds
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed

Volume discount available - Ask for quote..

View full details

Recently Viewed

24 PORT GIGABIT ETHERNET SWITCH

Product information summary

24 PORT GIGABIT ETHERNET SWITCH

About the product

NETGEAR's JGS524 Gigabit Switch gives your office network a mega boost of speed and capacity that is within your budget. With up to 48 Gbps of bandwidth, this 24-port switch can blast 2000 Mbps per port while their affordable prices enable you to put them everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10, 100, and 1000 Mbps devices, this unmanaged, rack-mountable switch feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink on every port. Users can take advantage of the its ability to deliver large amounts of multimedia, image, and video information in no time at all. Ideal for workgroups, labs, departments, or growing offices looking for oustanding performance at a low price.

  • Gigabit Ethernet port for ultra-fast network speeds
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports

Technical Specifications

Management & Protocols
ManageableNo
Network & Communication
Layer Supported2
Reliability
MTBF87600 Hour
Power Description
Frequency60 Hz
Power Consumption40 W
Interfaces/Ports
Number of Network (RJ-45) Ports24
Total Number of Network Ports24
Port/Expansion Slot Details24 x Gigabit Ethernet Network
Media & Performance
Network Technology10/100/1000Base-T
Twisted Pair Cable StandardCategory 5
Ethernet TechnologyGigabit Ethernet
Media Type SupportedTwisted Pair
Miscellaneous
Additional Information
  • Latency (1000 to 1000 Mbps): 20 µs max
Package Contents
  • 24-port Gigabit Ethernet Switch JGS524
  • Power adapter
  • Installation guide
  • Rack-mount kit
  • Warranty/Support information card
Compatibility
  • PC
  • Macintosh
  • Linux
  • Unix operating system
Certifications & Standards
  • IEEE 802.3i: 10BASE-T Ethernet
  • IEEE 802.3u: 100BASE-TX Fast Ethernet
  • IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
  • IEEE 802.3x: Flow Control

Electromagnetic Compliance:

  • CE mark, commercial
  • FCC Part 15 Class A
  • VCCI Class A
  • EN 55022 (CISPR 22), Class A, EN 50082-1
  • EN 55024
  • C-Tick

Safety Agency Approvals:

  • UL listed (UL 1950)/cUL
  • IEC950/EN60950
System Requirements
  • UTP Category 5 cables or better
  • Network card for each PC or server
Physical Characteristics
Weight (Approximate)5.30 lb (2404.04 g)
Form FactorRack-mountable
Height1.70" (43.18 mm)
Width13" (330.20 mm)
Depth8.20" (208.28 mm)
General Information
Product TypeEthernet Switch
Manufacturer Part NumberJGS524NA
Manufacturer Website Addresshttp://www.netgear.com
ManufacturerNetgear, Inc
Product ModelJGS524
Product NameProSafe JGS524 24-Port Gigabit Ethernet Switch
Product LineProSafe
Product SeriesJGS500
Brand NameNetgear
