About the product

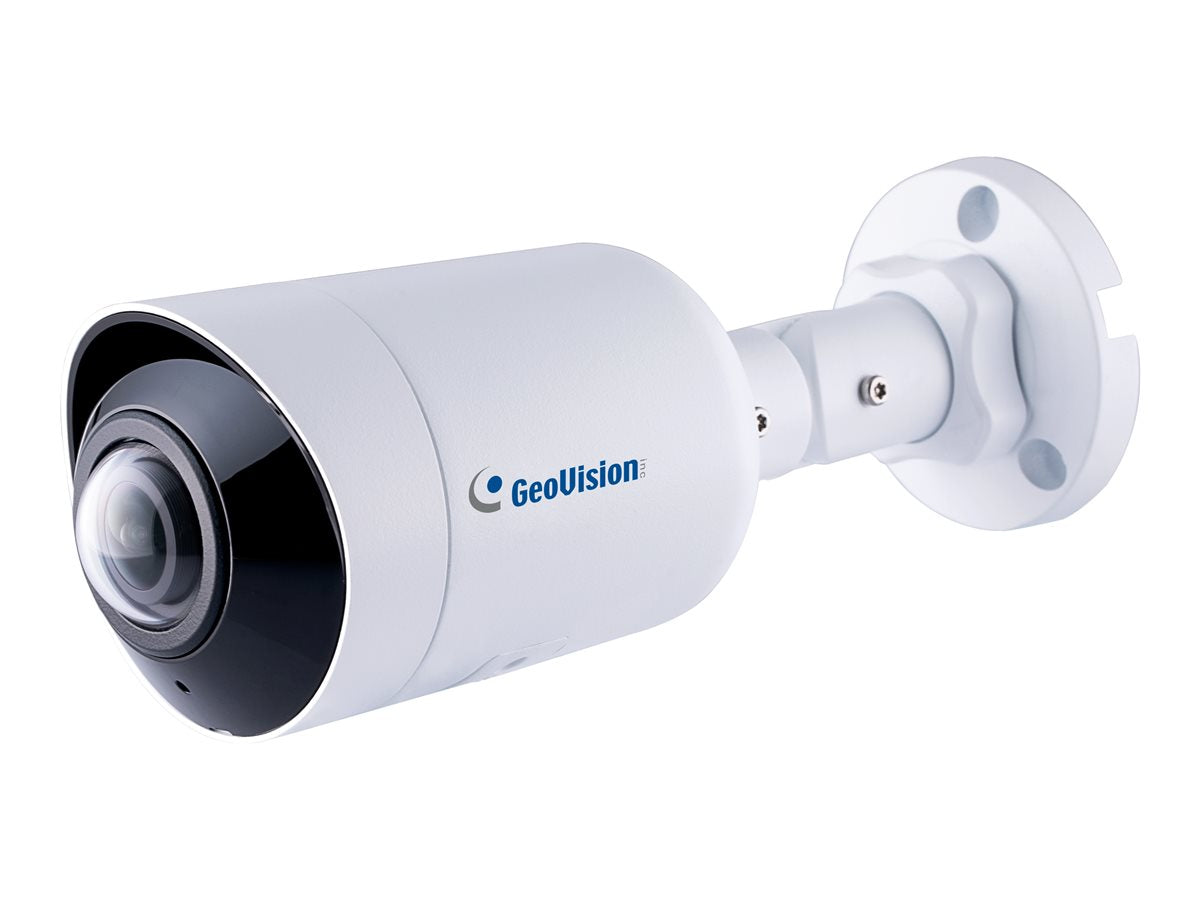

GeoVision's GV-TBLP5800 network panoramic camera redefines outdoor surveillance with its exceptional durability and advanced imaging capabilities. Designed to operate in extreme weather conditions, this camera ensures consistent performance with its wide operating temperature range and high humidity resistance. The GV-TBLP5800 boasts a 180° angular field of view through a fixed focal lens, coupled with a 1/2.7" PS CMOS sensor, delivering expansive coverage with superior image clarity. Night or day, the camera's Intelligent IR Technology and infrared LEDs provide clear, detailed images up to 20 m away, ensuring no detail goes unnoticed.
Beyond its robust build and optical excellence, the GV-TBLP5800 offers versatile connectivity and storage options, supporting a variety of network protocols and memory cards. Its comprehensive suite of features, including 3D Noise Reduction, Wide Dynamic Range (WDR) Pro, and advanced detection capabilities, make it an ideal choice for securing premises. Whether it's for monitoring wide outdoor spaces or detailed surveillance in challenging conditions, the GV-TBLP5800 stands ready to meet the demands of any security task.
Technical Specifications
| Primary Information | |
| Product Description: | GeoVision GV-TBLP5800 - network panoramic camera - bullet |
| Device Type: | Network panoramic camera - fixed - bullet - outdoor - ingress protection |
| Audio: | Yes: one-way audio capability, built-in microphone |
| Dimensions (WxDxH): | 2.8 in x 7.8 in x 2.8 in |
| Weight: | 14.81 oz |
| Connectivity Technology: | Wired |
| Camera: | Color - Day&Night |
| Max Resolution: | 2880 x 1620 |
| Frame Rate (max): | 30 frames per second |
| Motion Detection: | Yes |
| Optical Sensor Type: | PS CMOS - 1/2.7 - 5 MP |
| Minimum Illumination: | 0.01 lux - color - F2.0 - AGC on ¦ 0 lux - IR |
| Focal Length Control: | Fixed focal |
| Focal Length: | 1.68 mm |
| Lens Mounting: | M12 mount |
| Focus Adjustment: | Fixed focus |
| Lens Iris: | F/2.0 - fixed iris |
| Panning Range (degree): | 0 to 360 |
| Tilting Range (degree): | 0 to 90 |
| Interfaces: | Ethernet 10Base-T/100Base-TX |
| Voltage: | DC 12 V / PoE |
| Features: | Auto white balance, manual white balance, auto gain control, manual gain control, Wide Dynamic Range (WDR) Pro, infrared-cut filter, 37.8m detect distance, 15.1m observe distance, 7.6m recognize distance, 3.8m identify distance, 3 video streams, audio alarm, tamper-detection, flickerless, 3D Noise Reduction Technology, image flip, image mirror, 180° image rotation, intrusion detection, cross line detection, object enter area detection, object leave area detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, Super Low Lux, Intelligent IR Technology, Defog, text overlay, Privacy Mask Function |
| Manufacturer Warranty: | 2-year warranty |
| Environmental Parameters (operating): | -22 °F - 140 °F; 0 - 95% (non-condensing) relative humidity |
| General | |
| Device Type: | Network panoramic camera |
| Audio Support: | Yes: one-way audio capability, built-in microphone |
| Audio Formats: | G.711 |
| Form Factor: | Bullet |
| Connectivity Technology: | Wired |
| Width: | 2.8 in |
| Depth: | 7.8 in |
| Height: | 2.8 in |
| Weight: | 14.81 oz |
| Camera | |
| Type: | Color - Day&Night - fixed - outdoor - ingress protection |
| Digital Video Format: | H.264, H.265, MJPEG |
| Max Digital Video Resolution: | 2880 x 1620 |
| Motion Detection: | Yes |
| Exposure Range: | 1 sec - 1/100000 sec |
| Minimum Illumination: | 0.01 lux - color - F2.0 - AGC on ¦ 0 lux - IR |
| Infrared LEDs: | 2 |
| Infrared Distance: | 66 ft |
| Digital Video Capture Resolution: | 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 720 x 576, 640 x 480, 640 x 360, 704 x 288, 352 x 288 |
| Frame Rate (max): | 30 frames per second |
| Features: | Auto white balance, manual white balance, auto gain control, manual gain control, Wide Dynamic Range (WDR) Pro, infrared-cut filter, 37.8m detect distance, 15.1m observe distance, 7.6m recognize distance, 3.8m identify distance, 3 video streams, audio alarm, tamper-detection, flickerless, 3D Noise Reduction Technology, image flip, image mirror, 180° image rotation, intrusion detection, cross line detection, object enter area detection, object leave area detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, Super Low Lux, Intelligent IR Technology, Defog, text overlay, Privacy Mask Function |
| Image Sensor | |
| Type: | 5 MP PS CMOS 1/2.7 |
| Lens Construction | |
| Type: | M12 mount - fixed focal |
| Focal Length: | 1.68 mm |
| Lens Iris: | F/2.0 fixed iris |
| Focus Adjustment: | Fixed focus |
| Horizontal Field of View (degree): | 180 |
| Panning | |
| Range (degree): | 0 to 360 |
| Tilting | |
| Range (degree): | 0 to 90 |
