Leviton 4-in-1 Surge Protective Quadruplex Receptacle Outlet, 20 Amp, 125V White Overview

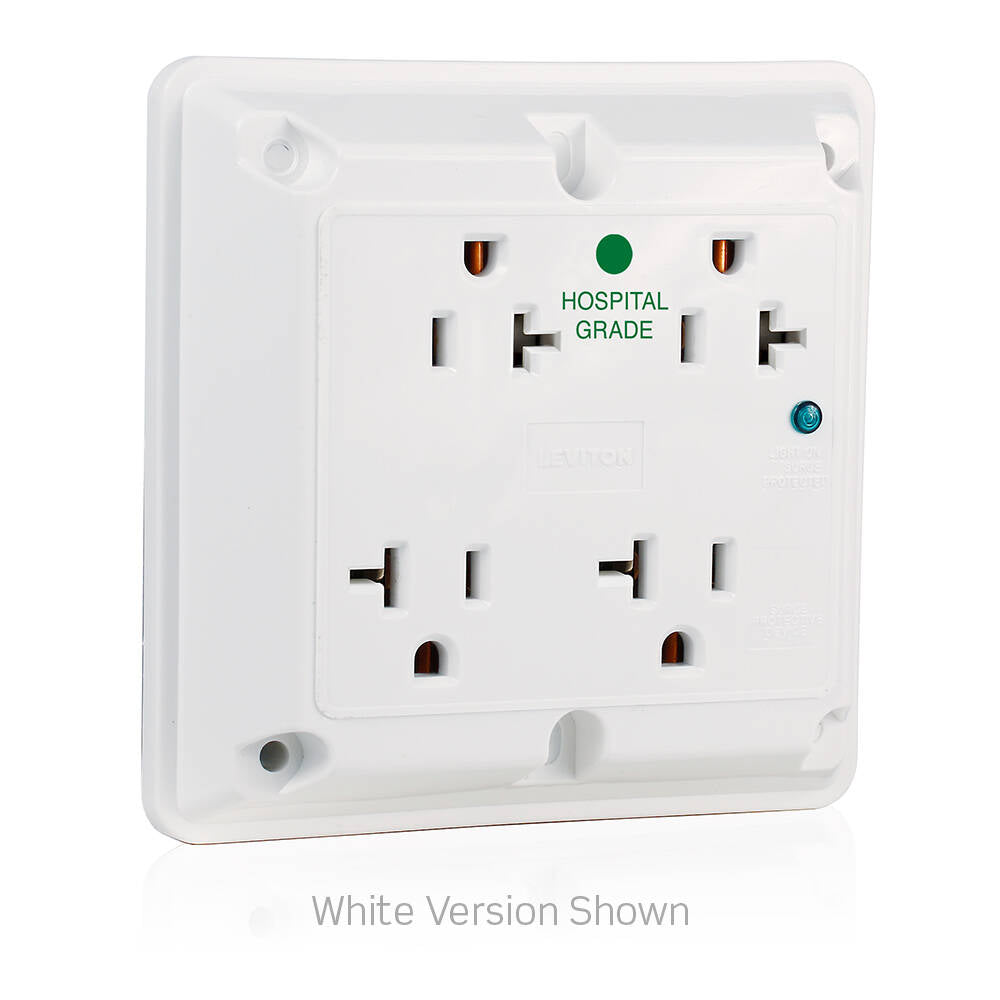

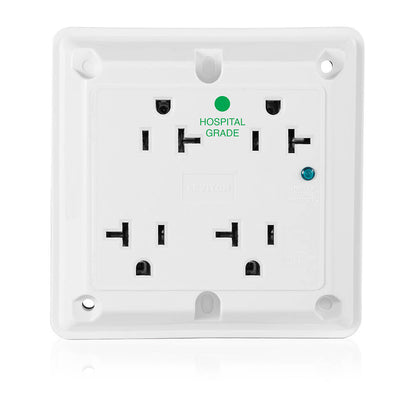

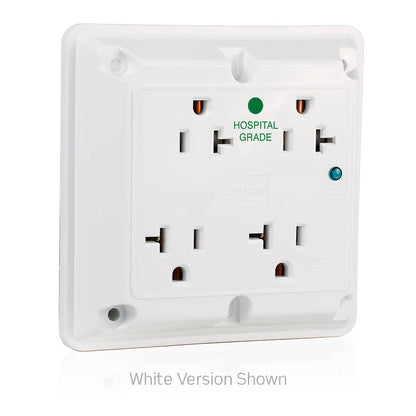

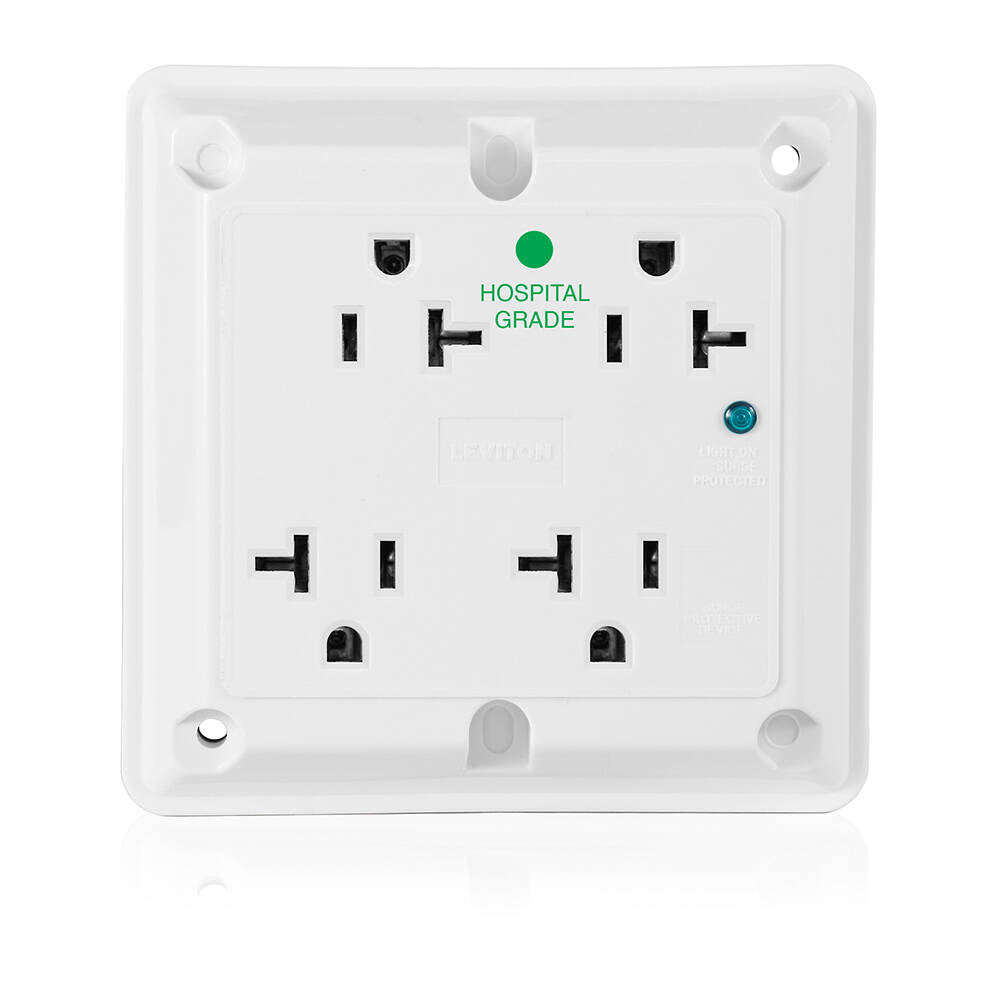

4-in-1 Surge Protective Quadruplex Receptacle Outlet, Heavy-Duty Hospital Grade, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire - White
Leviton 4-in-1 Surge Protective Quadruplex Specifications
- AC Horsepower Ratings
- At Rated Voltage: 1 HP
- Electrical Specifications
- Amperage: 20 A
- Current Limiting: Full Rated Current
- Dielectric Voltage: Withstands 2000V per UL498
- Pole: 2
- Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
- Voltage: 125 VAC
- Wire: 3
- Environmental Specifications
- Operating Temperature: -40°C to 60°C
- Material Specifications
- Body Material: Nylon
- Face Material: Nylon
- Grounding Screw: Steel 8-32 w/ 12AWG Green 8 Inch Pigtail
- Line Contacts: Phosphor Bronze
- Mounting Screws: Zinc-Plated Steel 8-32
- Terminal Screws: Brass 8-32
- Yoke: Zinc-Plated Steel
- Mechanical Specifications
- Product ID: Ratings are permanently marked on device
- Screw Terminal Torque: 14-18 in-lbs
- Terminal Accom.: 14-12 AWG
- Terminal ID: Brass-Hot, Green-Ground, White-Neutral
- Termination: Back or Side Wire
- Performance Data
- Diagnostics: Indicator Light
- Joules Rating: 720
- MCOV: 150V rms
- Max Surge Current L-N: 24kA
- Noise Rejection: -30dB at 500kHz-30MHz
- Nominal Discharge Current Rating: 3kA
- Short Circuit Current Rating: 5kA
- UL1449 Impulse 6kV/500A L-N: 330V
- VPR: L-N:500V, L-G:600V, N-G:500V
- Product Features
- Amperage: 20 A
- Body Material: Nylon
- Brand: 4-in-1
- Color: White
- Device Type: Quadruplex Receptacle
- Diagnostics: Indicator Light
- Face Material: Nylon
- Feature: Surge
- Function: Surge Protective
- Grade: Heavy-Duty Hospital Grade
- Grounding: Grounding
- Joules Rating: 720
- Max Surge Current L-N: 24kA
- NEMA: 5-20R
- Noise Rejection: -30dB at 500kHz-30MHz
- Pole: 2
- Standards and Certifications: UL/CSA
- Strap Material: Steel
- Termination: Back or Side Wire
- UL1449 Impulse 6kV/500A L-N: 330V
- Voltage: 125 VAC
- Warranty: 5-Year Limited
- Wire: 3
- Standards and Certifications
- ANSI: C-73
- CSA C22.2 No. 42: File 152105
- NEMA: WD-1 WD-6
- NOM: 057
- UL Fed Spec WC-596: File E13399
- UL498HG: File E13399
