About the product

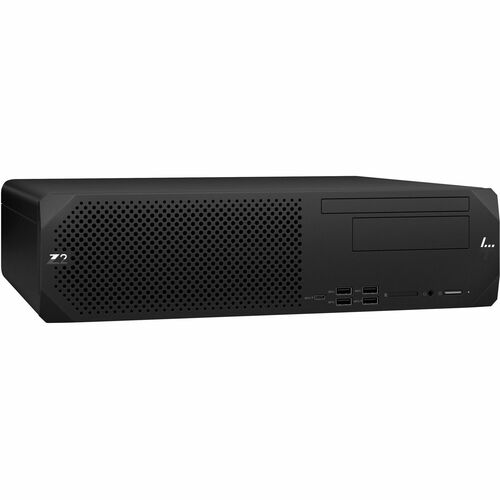

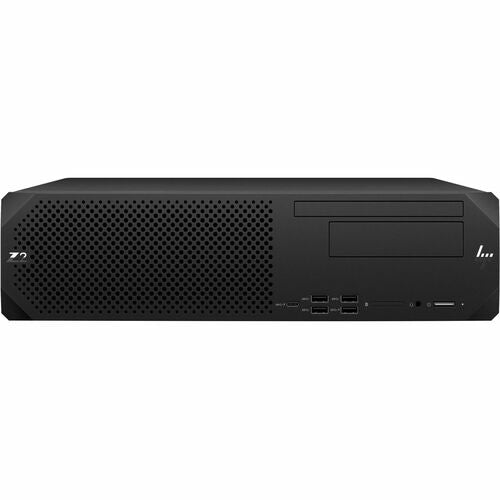

Overview | Full size Z tower power at half the size

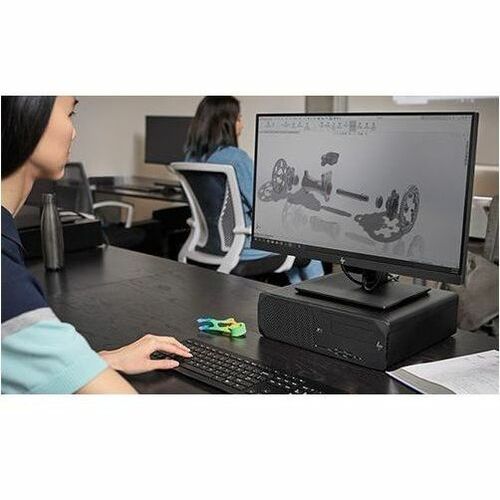

Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow-from 3D design to real time ray tracing-now and in the future.
Full height, full length performance

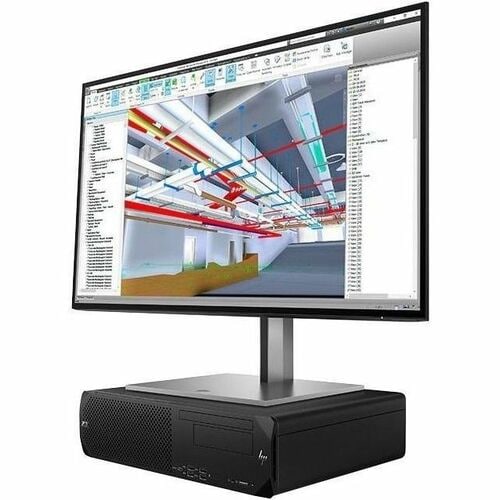

Design, simulate and real time ray trace on a Z SFF -- FHFL pro graphics and Intel® Core™ processors.
ISV Certified
Work with confidence knowing your PC is certified with leading software applications to ensure peak performance.
Configurable for today. Expandable for tomorrow.
Accelerate your current workflow with a multitude of options across processor, graphics, memory, storage, and I/O ports.
Features | Windows 11
Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.
Intel® Core™ i7 processor
Run several CPU-heavy programs simultaneously without sacrificing performance with an Intel® Core™ i7 processor.
Security is your top priority
The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.
Smaller, Functional Design
The stunning new design features front and rear ledges, so you can easily move your system from location to location.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- 450 W power supply unit (PSU) fulfills your system's power requirements
- Intel Core i7 2.10 GHz processor offers lightning fast speed and peak performance even for the toughest tasks and processing intensive games
- 16 GB of gigantic memory enables you to do multitasking and run intensive games lag-free
Technical Specifications
| I/O Expansions | |
| "Number of Internal 3.5"" Bays" | 1 |
| Input Devices | |
| Keyboard Localization | English |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Technical Information | |
| Release Year | 2023 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Display & Graphics | |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Accessibility | Shared |
| Controllers | |
| RAID Levels | 0, 1 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Operating System | |
| Operating System | Windows 11 Pro |
| Operating System Platform | Windows |
| Operating System Language | English |
| Storage | |
| Optical Media Supported | DVD-ROM |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Total Solid State Drive Capacity | 512 GB |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Frequency | 50 Hz |
| 60 Hz | |
| Maximum Power Supply Wattage | 450 W |
| Interfaces/Ports | |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Total Number of USB Ports | 10 |
| Mini DisplayPort | Yes |
| Number Of Ethernet Ports | 1 |
| Number of Mini DisplayPort | 3 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | Workstation |
| Manufacturer Part Number | 87C25UT#ABA |
| Manufacturer Website Address | http://www.hp.com |
| Manufacturer | HP Inc. |

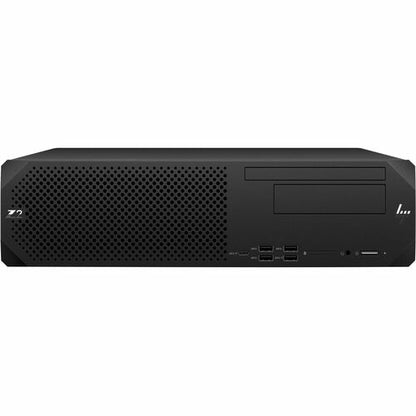

| Product Name | Z2 Small Form Factor G9 Workstation |
| Product Series | Z2 G9 |
| Brand Name | HP |
| Physical Characteristics | |
| Weight (Approximate) | 11.02 lb (5000 g) |
| Form Factor | Small Form Factor |
| Height | 3.94" (100 mm) |
| Width | 15.12" (384 mm) |
| Depth | 12.13" (308 mm) |
| Product Color | Black |
| Color Family | Black |
| Memory | |
| Error Checking | Non-ECC |
| Maximum Memory Supported | 128 GB |
| Signal Processing | Unbuffered |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Intel Optane Memory Ready | No |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 1 x 16GB |
| Total Number of Memory Slots | 4 |
| Processor | |
| Processor Speed | 2.10 GHz |
| Processor Type | Core i7 |
| Processor Socket | Socket LGA-1700 |
| Processor Model | i7-13700 |
| Processor Core | Hexadeca-core (16 Core) |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| vPro Technology | Yes |
| Processor Generation | 13th Gen |
