About the product

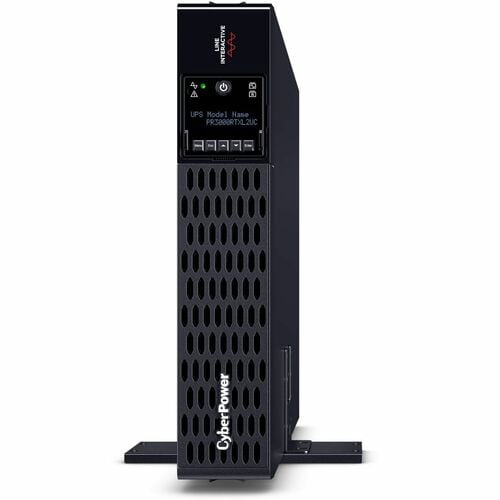

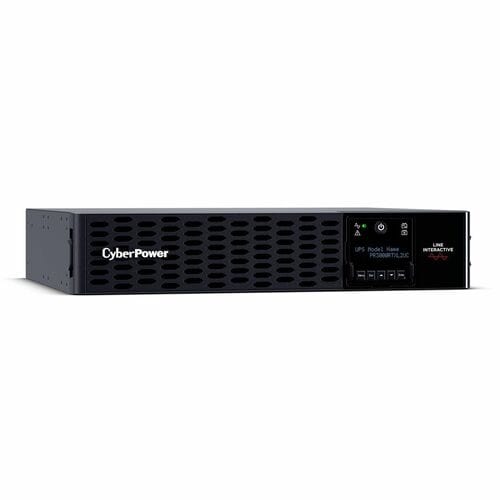

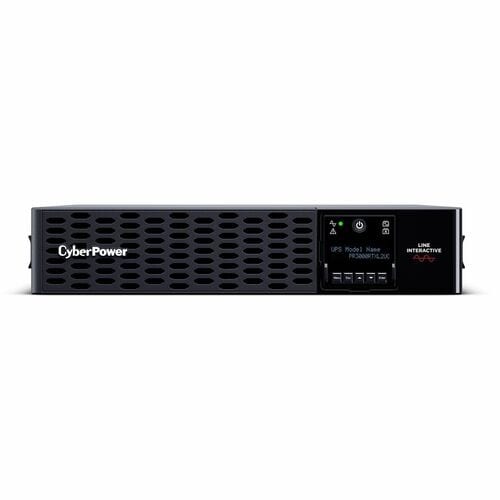

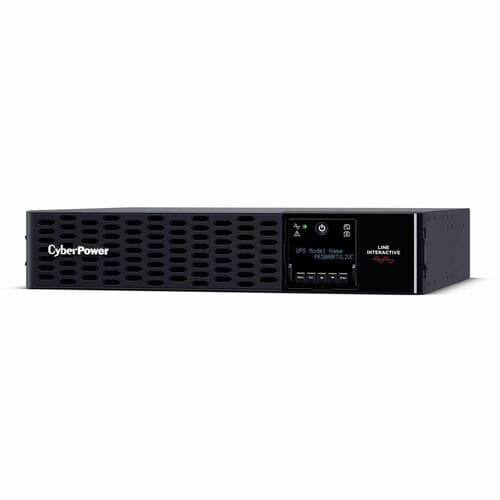

The PR3000RTXL2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

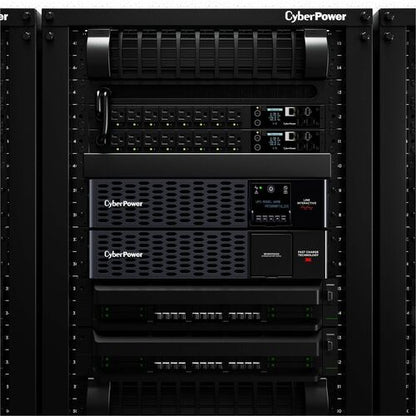

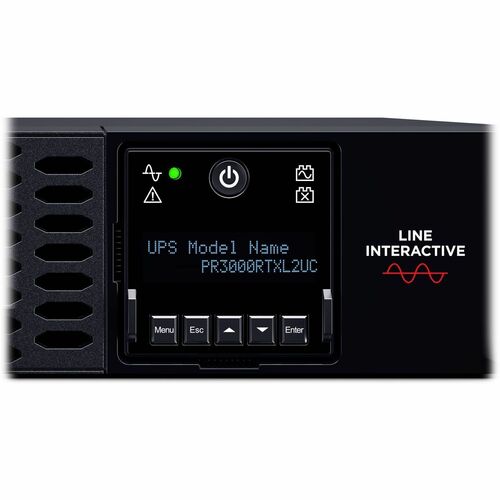

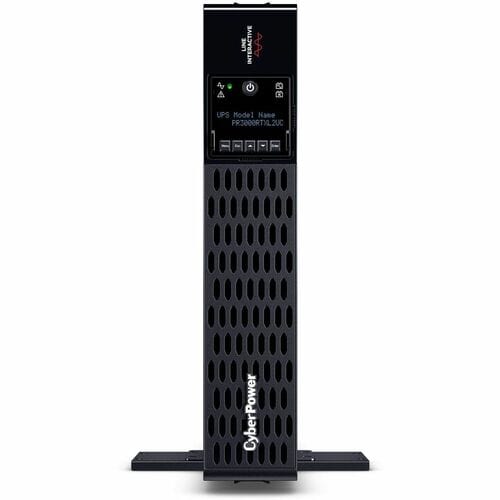

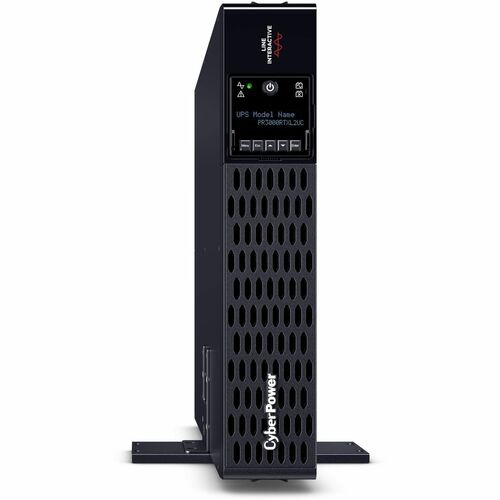

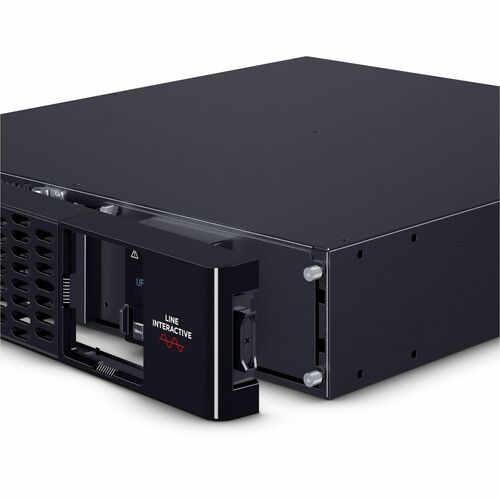

The Smart App Sinewave PR3000RTXL2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

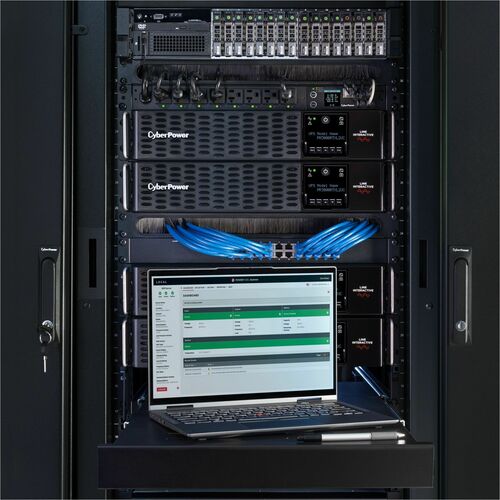

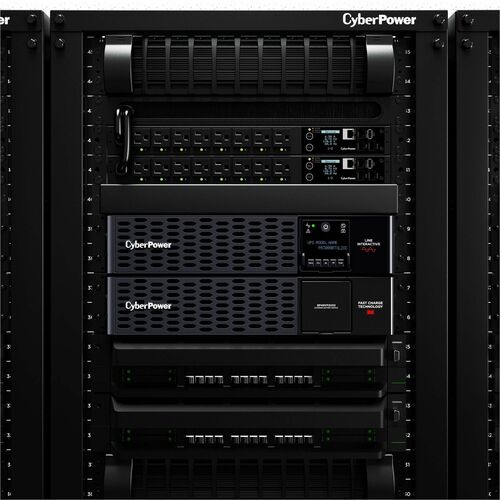

This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UCN.
- Experience higher efficiency with lower energy cost
- 3 kVA load capacity - work without any interruption during power outages
- 3 kW load capacity - backup power for your valuable electronics
- Keep your sensitive devices powered with a backup of up to 1.70 minute at full load
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Display & Graphics | |
| Display | LCD |
| Miscellaneous | |
| Certifications & Standards |
|
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |

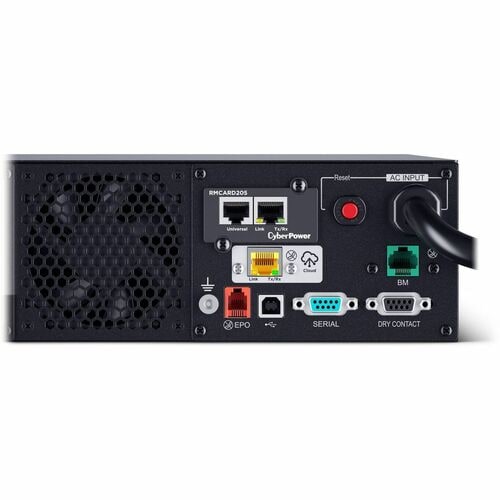

| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 192.50 BTU/h |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9843 ft (3000146.40 mm) |
| Maximum Storage Elevation | 49213 ft (15000122.40 mm) |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PR3000RTXL2UCN |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR3000RTXL2UCN |
| Product Name | New Smart App Sinewave PR3000RTXL2UCN 3000VA Rack/Tower UPS |
| Product Series | New Smart App Sinewave UPS |
| Brand Name | CyberPower |
| Physical Characteristics | |
| Weight (Approximate) | 75.40 lb (34200.86 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |

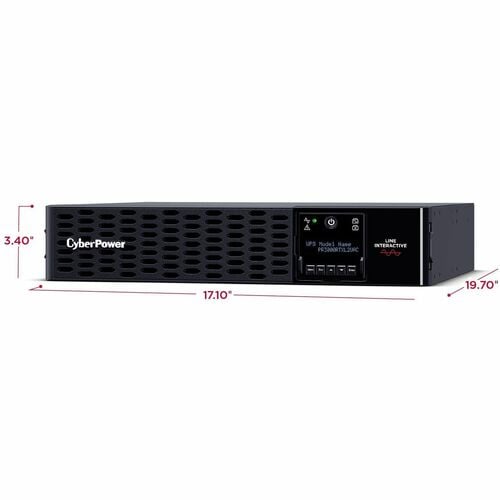

| Height | 3.40" (86.36 mm) |
| Width | 17.10" (434.34 mm) |
| Depth | 19.70" (500.38 mm) |
| Product Color | Black |
| Color Family | Black |
| Management | |
| Network Management | Network Card |
| SNMP/HTTP Remote Monitoring | |
| Relay-MS Card | |
| Dry Contact | |
| Alarm | Battery Mode |
| Overload | |
| Overheat | |
| Over-charge | |
| Low Battery | |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 7 Minute |
| Backup/Run Time (Full Load) | 1.70 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| 100 V AC | |
| 110 V AC | |
| Surge Energy Rating | 2430 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 75 V AC - 149 V AC |
| 70 V AC - 155 V AC | |
| 100 V AC - 120 V AC | |
| Output Frequency | 50 Hz |
| 60 Hz | |
| Input Frequency | 47 Hz |
| 63 Hz | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Output Power Factor | 1 |
| Technical Information | |
| Application/Usage | Network |
| Telecommunication | |
| Storage Device | |
| Corporate | |
| Equipment | |
| VoIP Phone System | |
| Network Device | |
| Server | |
| Features | Audible Alarm |
| Overload Protection | Yes |
| Surge Suppression | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA L5-30R |
| NEMA 5-20R | |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |

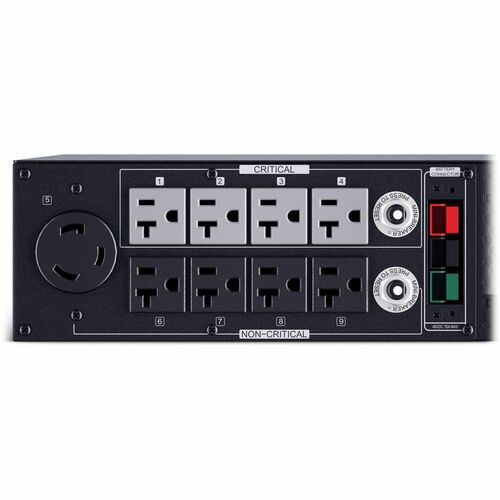

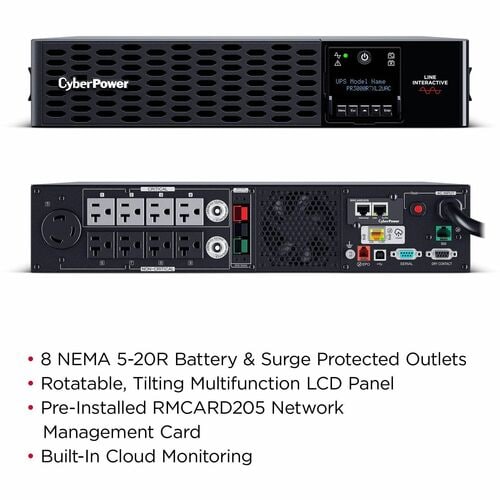

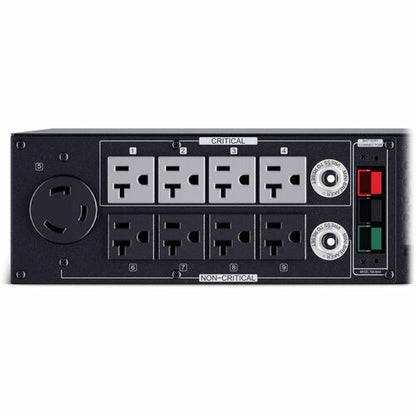

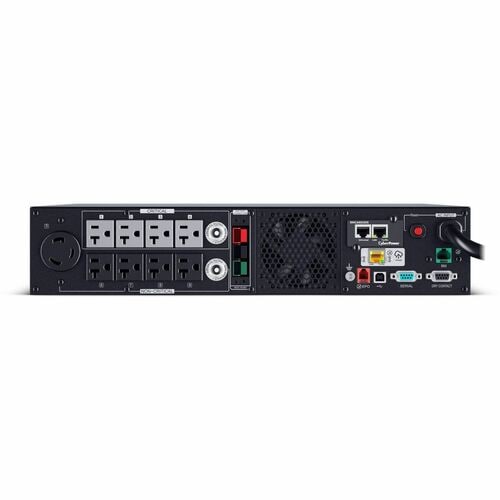

| Number of Battery & Surge Outlets | 9 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 13 ms |

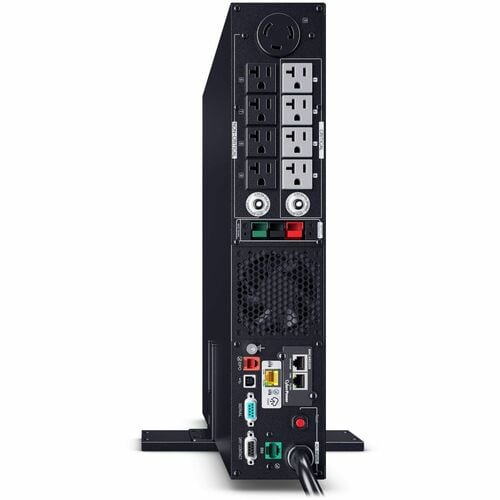

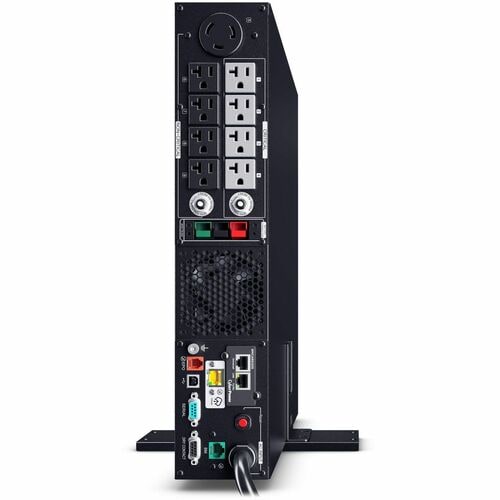

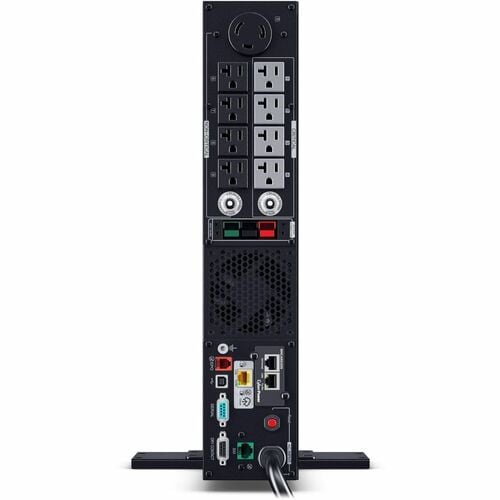

| Receptacle Detail | 1 x NEMA L5-30R |
| 8 x NEMA 5-20R |
