About the product

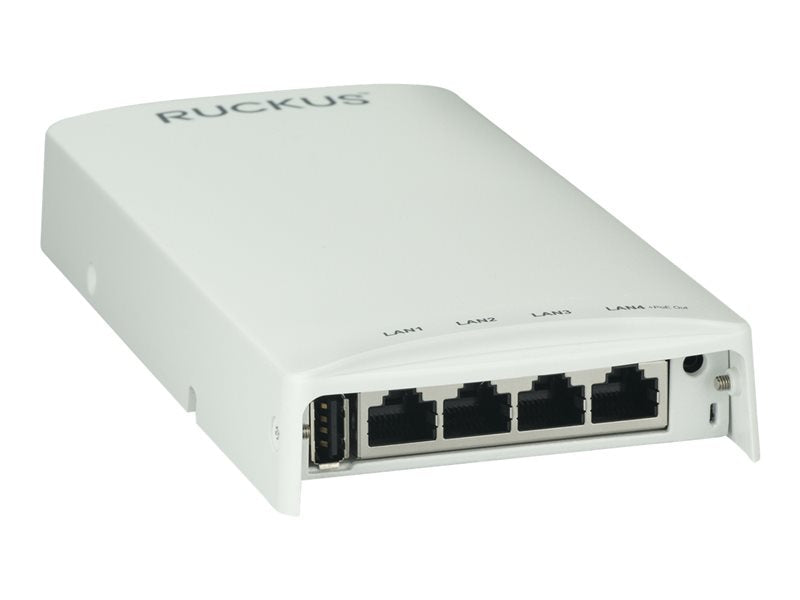

In hotels, apartment buildings, and other multi-dwelling structures, wireless connectivity can carry a hefty price tag. You need to connect a wide range of wired devices - IPTV set-top boxes, IP phones, networked minibars - IoT devices like smart locks and sensors - while delivering a great wireless experience for guests. The Ruckus H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with Ruckus patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee and Bluetooth Low Energy (BLE), as well as other protocols via optional USB modules. Put it all in a sleek low-profile design that can be discretely installed over a standard electrical outlet. Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
Technical Specifications
| Primary Information | |
| Product Description: | Ruckus H550 - wireless access point - Bluetooth, ZigBee, Wi-Fi 6 |
| Device Type: | Wireless access point |
| Form Factor: | External |
| Localization: | Worldwide (excluding China) |
| Data Link Protocol: | Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Performance: | Max transmit power on 2.4 GHz: 19 dBm ¦ Max transmit power on 5 GHz: 22 dBm |
| Capacity: | Maximum number of clients: 512 ¦ BSSIDs per radio: 8 |
| Power Over Ethernet (PoE) Supported: | UPOE / PoH |
| Dimensions (WxDxH): | 3.5 in x 7 in x 1.2 in |
| Weight: | 9.81 oz |
| Manufacturer Warranty: | Limited lifetime warranty |
| General | |
| Device Type: | Wireless access point |
| Built-in Devices: | 4-port switch |
| Width: | 3.5 in |
| Depth: | 7 in |
| Height: | 1.2 in |
| Weight: | 9.81 oz |
| Localization: | Worldwide (excluding China) |
| Networking | |
| Form Factor: | External |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 1.8 Gbps |
| Data Link Protocol: | Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Network / Transport Protocol: | L2TP, IPv4, IPv6 |
| Routing Protocol: | GRE |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Performance: | Max transmit power on 2.4 GHz: 19 dBm ¦ Max transmit power on 5 GHz: 22 dBm |
| Capacity: | Maximum number of clients: 512 ¦ BSSIDs per radio: 8 |
| Features: | Load balancing, wall mountable, Wireless Intrusion Detection System (WIDS), Access Control List (ACL) support, Quality of Service (QoS), Multiple SSID support, Low Density Parity Check (LDPC), Space Time Blocking Code (STBC), Wireless Intrusion Prevention System (WIPS), Captive Portal, 802.1x authentication, BeamFlex+ Smart Antenna Technology, beamforming technology, rate limit, Hotspot Access Point Capability, Airtime Fairness, 2x2 MU-MIMO technology, port-based VLAN, ChannelFly, SmartMesh, 2x2 SU-MIMO technology, Polarization Diversity with Maximal Ratio Combining (PD-MRC), multicast mode, Airtime-based WLAN Prioritization, HotSpot 2.0, WISPr authentication, 2x2:2 streams, IPv4 and IPv6 dual stack, SoftGRE tunneling, WMM Power Save, SmartCast, SmartRoam, Spectrum Analysis, SpeedFlex, SmartZone, background scan based, adaptive band balancing, VLAN pooling, application recognition and control, device fingerprinting |
| Encryption Algorithm: | AES, TKIP, WPA2, WPA-PSK, WPA3-Enterprise, WPA3-Personal, Opportunistic Wireless Encryption (OWE) |
| Authentication Method: | RADIUS |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Antenna | |
| Gain Level: | 1 dBi |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible: | Yes |
| Communications Technology: | Bluetooth Low Energy (LE), Zigbee |
| Expansion / Connectivity | |
| Interfaces: | 1 x 1000Base-T (PoE input) - RJ-45 ¦ 1 x 1000Base-T (PoE output) - RJ-45 ¦ 3 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A |
| Miscellaneous | |
| Compliant Standards: | EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, RoHS, EN 60950-1, WEEE, EN 60601-1-2, EN 62311, EN 50121-4, EN 50121-1, EN 61373, ISTA 2A |
