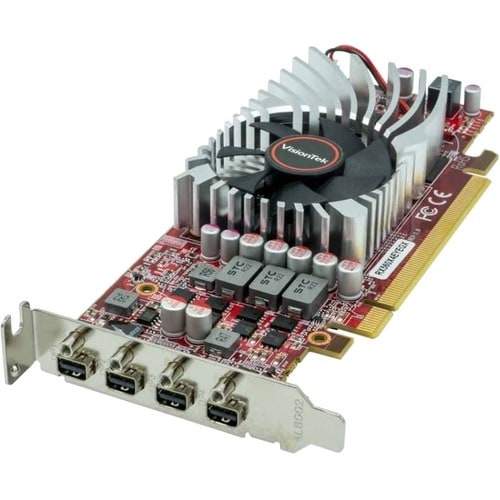

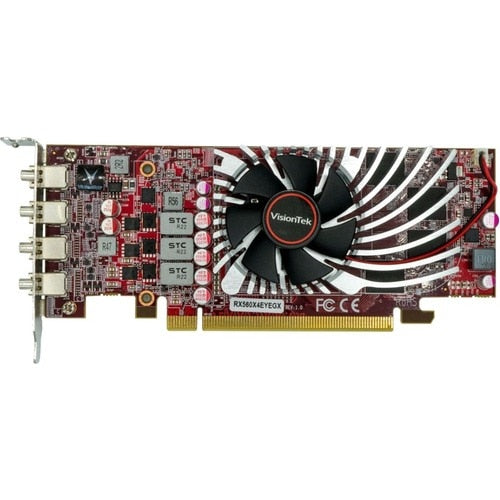

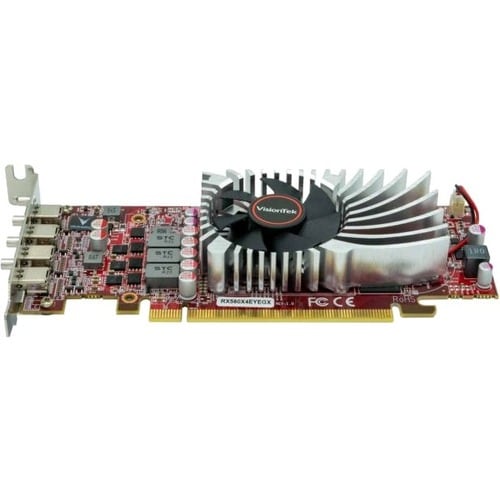

RADEON RX560 SFF 4GB GDDR5 4M 4X MINIDP

Versatile

Whether you want to power a convenience store display, a multi-monitor display wall in a public venue, feed four individual monitors to separate rooms in your business office environment, the RX560 4M is ready to present your desired message or content from a single PC.

No Additional Power Supply Needed

Thanks to an energy efficient design, the RX560 4M requires only 75 watts of power so it can be run off the system power bus. With most systems featuring a factory-installed 350 watt or higher power supply, you don't have to purchase and install a larger power supply.

High Speed Memory for High Performance

While consumer grade cards use common DDR3 memory, the RX560 4M uses 4GB of higher bandwidth GDDR5 memory to deliver lag-free content with the highest resolution possible.

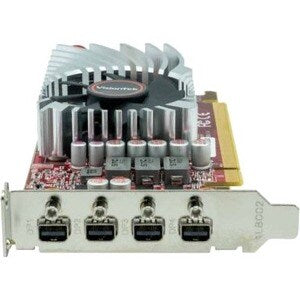

Secure Cable Connections

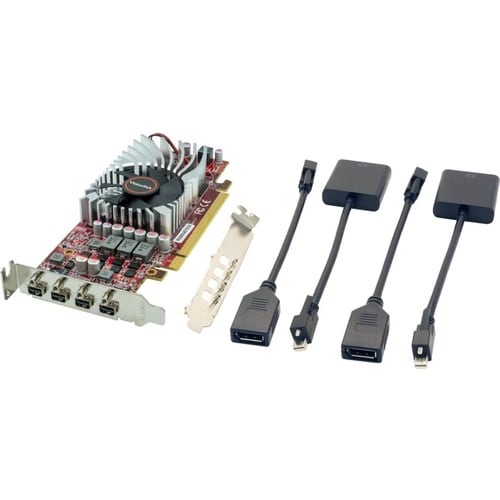

The RX560 4M features a unique bracket that utilizes the included mini DP to DVI screw attaching cables and mini DP to DP adapters to prevent accidental cable disconnection.

Small Form Factor - Low Profile Design

Short/Small Form Factor (SFF) design fits in today's Low-Profile desktops and workstations via the short bracket mounted on card. The card is convertible to standard ATX design with the included tall bracket for standard chassis as well.

Four Independent Surround Sound Audio Channels

By incorporating Discrete Digital Multi-Point Audio technology into its chipset, the RX560 4M is able to deliver HD 7.1 surround sound independently to four displays via the four interfaces on the card. Gone is the need for multiple PCs and cards to provide audio to multiple displays. And, you don't need a 3.5mm mini-DIN cable to connect to the motherboard. This attention to detail to support business application use via the mini DisplayPort interface is unmatched by any other graphics card manufacturer.

Key Features

• AMD Eyefinity technology multi-display support for up to four displays
• AMD Stream technology
• Designed for DirectCompute 11 and OpenCL
• Accelerated Video Transcoding (AVT)
• Compliant with DirectX® 12 and earlier revisions
• Supports DirectX 12 and OpenGL
• AMD Avivo™ HD video and display technology
• Advanced dynamic power management with AMD PowerPlay™ technology

• Features DirectX 12 API for vibrancy and clarity
• The cutting-edge AMD Radeon™ lets you experience video games with realism
• Built-in low-power fan keeps the board cool and ensures a long-lasting usability
• PCI Express 3.0 x16 interface is hot-swappable and easy to use
• CrossFireX™ multi-GPU technology lets you integrate 2 or more discrete GPUs or even up to 4 and delivers supreme performance
