About the product
VisionTek Radeon RX 550 2GB GDDR5 4M (4x mDP) gives you the screen space you need to stay on the cutting edge.
- Graphics Engine: Radeon™ RX550
- Video Memory: 4GB GDDR5
- Memory Interface: 128-bit
- DirectX Support: 12
- CrossFireX Support: Yes
- Bus Standard: PCI Express 3.0 x8
- Core Speed: 1175MHz
- Memory Speed: 1500MHz x4

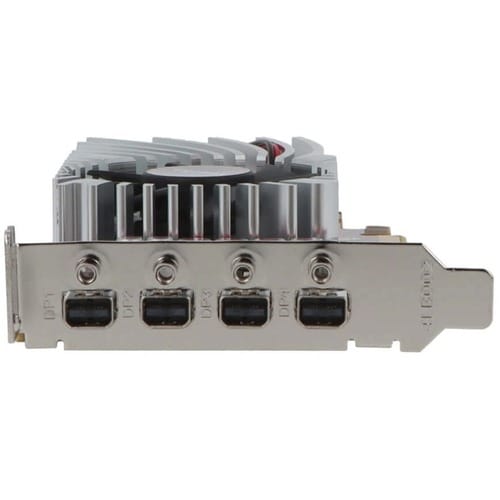

- Ports: Four Mini DisplayPort
- Number of Monitors Supported: Four

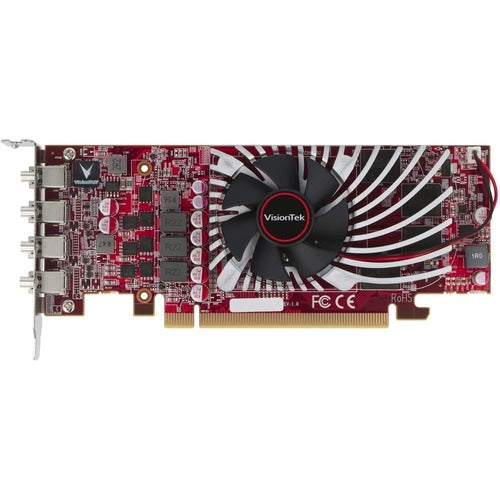

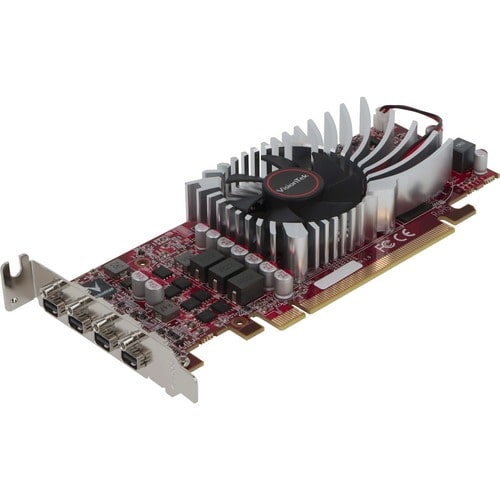

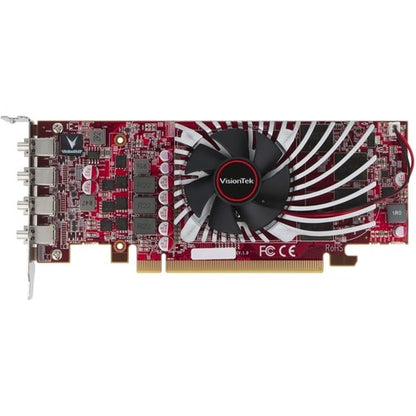

Radeon™ RX 550 4M 2GB GDDR5 Graphics Card (4x mDP)
Applications
The VisionTek RX 550 4M Graphics Card gives you the power and performance you need to take business to the next level. From showcasing your company with a Reception Video Wall, to your restaurant installing Live Action Menus or you the Professional looking to stay on the cutting edge and keeping all of your information in front of you, we have you covered.
Single Slot

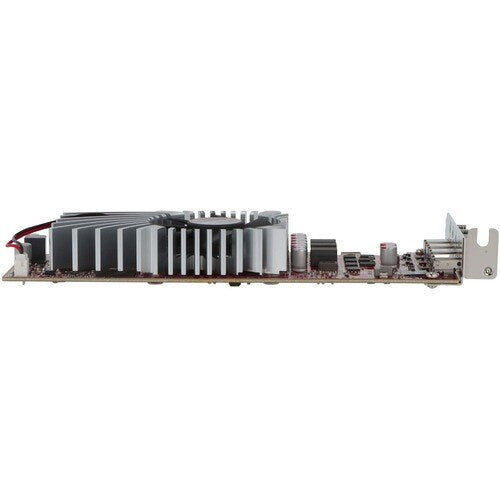

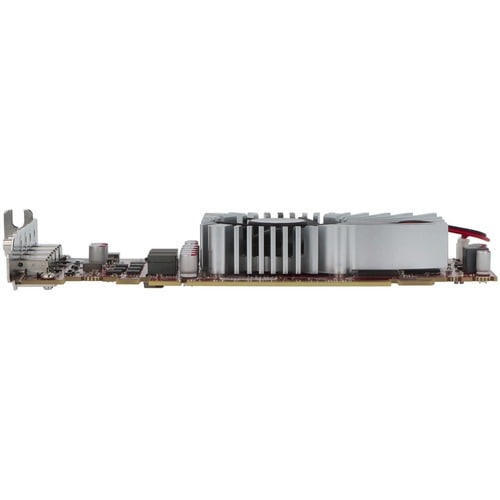

The RX 550 4M fits a full height or small form factor system an featuring 4 mini DisplayPort ports in a single slot.
High Speed Memory
While consumer grade cards use common DDR3 memory, the RX 550 4M uses 4GB of higher bandwidth GDDR5 memory to deliver lag-free content with the highest resolution possible.
Low Power
Thanks to an energy efficient design, the RX 550 4M requires only 50 watts of power so it can be run off the system power bus. With most systems featuring a factory-installed 350 watt or higher power supply, you don't have to purchase and install a larger power supply.
HD Audio
By incorporating Discrete Digital Multi-Point Audio technology into its chipset, the RX 550 4M is able to deliver HD 7.1 surround sound independently to four displays via the four interfaces on the card.
Multi Monitor

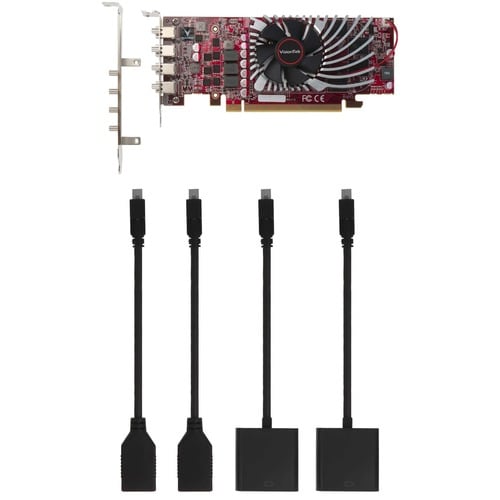

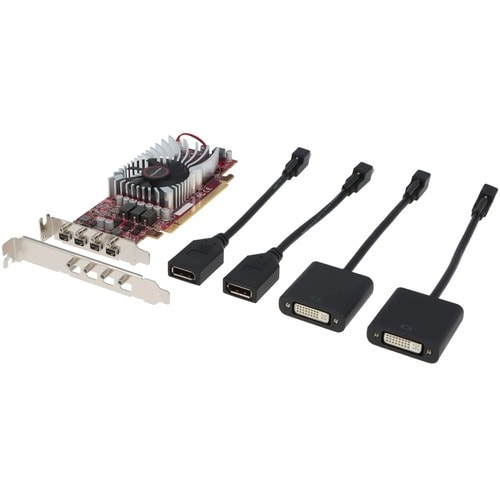

The RX 550 4M 4GB GDDR5 graphics card supports up to four displays with 4K resolutions with direct DisplayPort connections. For other display connections, you may need to purchase the appropriate active adapters.
- AMD Radeon™ delivers supreme video graphics with stunning visual

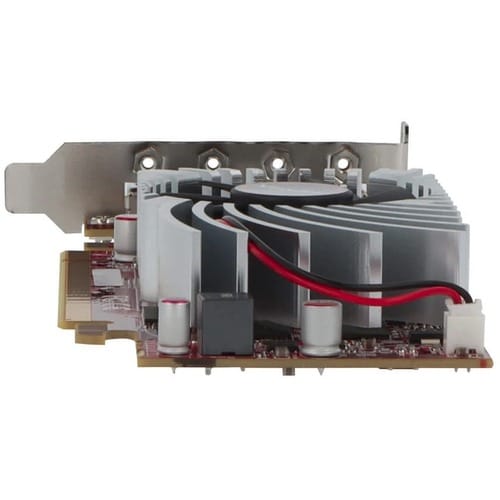

- Loaded with a power-efficient fan to dissipate heat and as a result, you get enduring usability
- PCI Express 3.0 x8 interface is hot-swappable and easy to use
- CrossFireX™ multi-GPU technology provides up to 4 compatible GPUs connection and brings high resolution effects for the graphically demanding games
- OpenCL 2.0 API for shared virtual memory for both the host and the device
Technical Specifications
| Power Description | |
| Power Supply Wattage | 350 W |
| Interfaces/Ports | |
| Host Interface | PCI Express 3.0 x8 |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort Outputs | 4 |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Country of Origin | Taiwan |
| Memory | |
| Standard Memory | 4 GB |
| Memory Speed | 1500 MHz |
| Memory Technology | GDDR5 |
| Bus Width | 128 bit |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | RX 550 |
| Chipset Line | Radeon |
| Chipset Series | RX 500 |
| GPU Clock | 1.07 GHz |
| General Information | |
| Product Type | Graphic Card |
| Manufacturer Part Number | 901507 |
| Manufacturer Website Address | http://www.visiontek.com |
| Manufacturer | VisionTek Products, LLC |
| Product Name | Radeon RX 550 SFF 4GB GDDR5 4M Graphics Card |
| Brand Name | VisionTek |
| Technical Information | |
| API Supported | OpenCL 2.0 |
| OpenGL 4.5 | |
| DirectX 12 | |
| Multi-GPU Technology | CrossFireX |
| Number of Monitors Supported | 4 |
| Maximum Digital Display Resolution | 3840 x 2160 |
| Physical Characteristics | |
| Weight (Approximate) | 5.50 oz (155.92 g) |
| Form Factor | Plug-in Card |
| Length | 7.25" (184.15 mm) |
| Cooler Type | Fan Cooler |
| Height | 1" (25.40 mm) |
| Width | 3.25" (82.55 mm) |
| Card Height | Full-height |
| Slot Space Required | Single |
