Visiontek

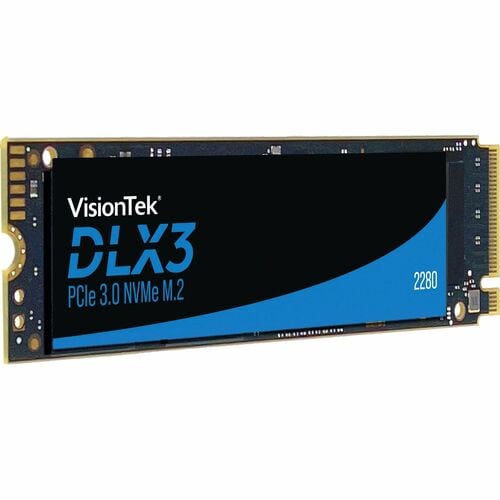

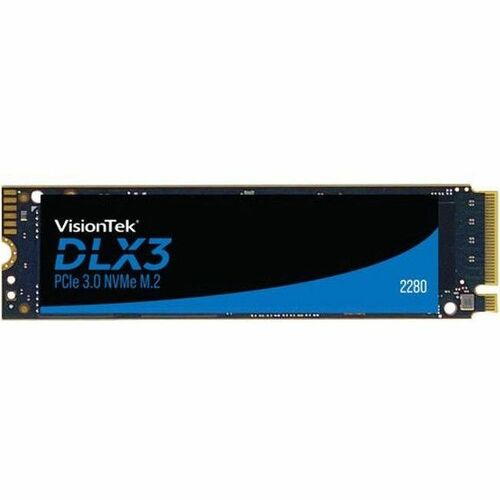

256GB M.2 2280 NVME DLX3 PCIE G3 X4
256GB M.2 2280 NVME DLX3 PCIE G3 X4
VPN:901554 SKU:RSC662792 UPC:810078051527
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details

Recently Viewed
256GB M.2 2280 NVME DLX3 PCIE G3 X4
Product information summary

About the product
The VisionTek DLX3 M.2 NVMe SSD is designed to bring ultra-fast, reliable storage to PC users. With the shift from the hard disk drive to the solid state drive the VisionTek DLX3 M.2's provide a drop-in replacement option for the hard disk drive (HDD) for M.2 NVMe compatible systems. It delivers superior reliability, durability, performance and power efficiency - keeping your system working reliably in the toughest of conditions.
Conforming to the industry standard NVMe connector specification, these SSDs integrate easily into compatible infrastructures. The VisionTek DLX3 M.2's provide high bandwidth and IOPS while efficiently managing write amplification. Employing M.2 NVMe SSDs in a compatible system enables faster boot times, quicker application load times, lower power consumption, and enhanced reliability.
Speed / Performance
Start your system in seconds, load files almost instantly, and accelerate the most demanding applications with VisionTek solid state drives. With the advancements in SSD technology, you can open a program and have it load immediately. Unlike a mechanical hard drive, an SSD has no moving parts ensuring faster performance, longer device life and more secure data.
Easy to Install
A solid state hard drive is easy to install, in just a few minutes time you can upgrade your internal system storage. No need to pay someone else, the installation of an SSD is quick and easy! Consult your system manufacturers documentation for system specific installation instructions.
- The high-read speed of 3100 MB/s maximizes system performance and saves time while you are doing complex tasks
- With the high-write speed of 1400 MB/s, get a quick response when updating or transferring files
- Provides sufficient storage capacity of 256 GB for your computer
- With PCI Express NVMe 3.0 x4 interface get superb reliability and high-speed data transfer
Technical Specifications
Network & Communication | |
Wireless LAN | No |
Technical Information | |
Storage Capacity | 256 GB |
Warranty | |
Additional Warranty Information | |
Interfaces/Ports | |
Drive Interface | PCI Express NVMe |
Drive Interface Standard | PCI Express NVMe 3.0 x4 |
Miscellaneous | |
Device Supported | Desktop PC |
Country of Origin | Mexico |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Drive Performance | |
Maximum Read Transfer Rate | 3100 MB/s |
Maximum Write Transfer Rate | 1400 MB/s |
Random 4KB Read | 100000IOPS |
Random 4KB Write | 275000IOPS |
Endurance (TBW) | 125 TB |
Physical Characteristics | |
Weight (Approximate) | 0.25 oz (7 g) |
Drive Type | Internal |
Form Factor | M.2 2280 |
Length | 3.15" (80 mm) |
Width | 0.87" (22 mm) |
General Information | |
Product Type | Solid State Drive |
Manufacturer Part Number | 901554 |
Manufacturer Website Address | http://www.visiontek.com |
Manufacturer | VisionTek Products, LLC |
Product Name | DLX3 2280 M.2 PCIe 3.0 x4 SSD (NVMe) |
Product Series | DLX3 |
Brand Name | VisionTek |
