512GB M.2 2280 NVME DLX4 PCIE G4 X4
512GB M.2 2280 NVME DLX4 PCIE G4 X4
VPN:901564 SKU:RSC978331 UPC:810078051626
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details
Recently Viewed
512GB M.2 2280 NVME DLX4 PCIE G4 X4
Product information summary

About the product

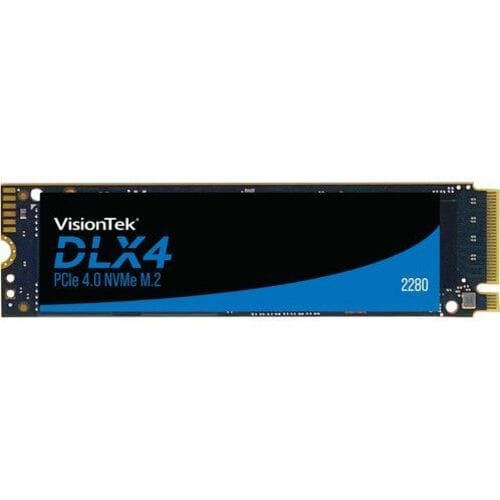

The VisionTek DLX4 M.2 NVMe SSD is designed to bring ultra-fast, reliable storage to PC users. With the shift from the hard disk drive to the solid state drive the VisionTek DLX4 M.2's provide a drop-in replacement option for the hard disk drive (HDD) for M.2 NVMe compatible systems. It delivers superior reliability, durability, performance and power efficiency - keeping your system working reliably in the toughest of conditions.
Conforming to the industry standard NVMe connector specification, these SSDs integrate easily into compatible infrastructures. The VisionTek DLX4 Pro M.2's provide high bandwidth and IOPS while efficiently managing write amplification. Employing M.2 NVMe SSDs in a compatible system enables faster boot times, quicker application load times, lower power consumption, and enhanced reliability.
Speed / Performance
Start your system in seconds, load files almost instantly, and accelerate the most demanding applications with VisionTek solid state drives. With the advancements in SSD technology, you can open a program and have it load immediately. Unlike a mechanical hard drive, an SSD has no moving parts ensuring faster performance, longer device life and more secure data.
Easy to Install
A solid state hard drive is easy to install, in just a few minutes time you can upgrade your internal system storage. No need to pay someone else, the installation of an SSD is quick and easy! Consult your system manufacturers documentation for system specific installation instructions.
- The high-read speed of 4725 MB/s maximizes system performance and saves time while you are doing complex tasks
- With the high-write speed of 2525 MB/s, get a quick response when updating or transferring files
- Provides sufficient storage capacity of 512 GB for your computer
- With PCI Express NVMe 4.0 x4 interface get superb reliability and high-speed data transfer
- With 256-bit AES encryption protect all your valuable data and keep your personal files safe & secure
Technical Specifications
Network & Communication | |
Wireless LAN | No |
Interfaces/Ports | |
Drive Interface | PCI Express NVMe |
Drive Interface Standard | PCI Express NVMe 4.0 x4 |
Technical Information | |
Storage Capacity | 512 GB |
Encryption Standard | 256-bit AES |
Miscellaneous | |
Device Supported | Desktop PC |
Country of Origin | Mexico |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Drive Performance | |
Maximum Read Transfer Rate | 4725 MB/s |
Maximum Write Transfer Rate | 2525 MB/s |
Random 4KB Read | 195000IOPS |
Random 4KB Write | 289000IOPS |
Endurance (TBW) | 250 TB |
Physical Characteristics | |
Weight (Approximate) | 0.25 oz (7 g) |
Drive Type | Internal |
Form Factor | M.2 2280 |
Length | 3.15" (80 mm) |
Width | 0.87" (22 mm) |
General Information | |
Product Type | Solid State Drive |
Manufacturer Part Number | 901564 |
Manufacturer Website Address | http://www.visiontek.com |
Manufacturer | VisionTek Products, LLC |
Product Name | DLX4 2280 M.2 PCIe 4.0 x4 SSD (NVMe) |
Product Series | DLX4 |
Brand Name | VisionTek |
