About the product
Q670E ATX motherboard, LGA1700 Socket for 13th/12th Gen Intel CPU, 125W TDP, 4*U-DIMM, 3*Lan, 2*PCIe x16 slots, 2*PCI, VGA, HDMI, DP++, 2*M.2 slot, 6*COM, 7*SATA, USB 3.2 Gen 2, USB Type C
- Supports up to 125-watt Intel® 13th/12th Gen processors
- 2x PCIe® x16 slots support dual graphic cards
- Four U-DIMM slots for up to 128 GB 4400 MHz DDR5

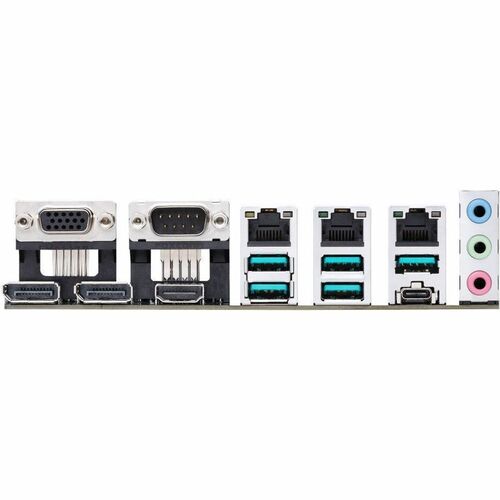

- Supports VGA, HDMI®, and DisplayPort™
- Seven-year longevity supply program
- Advanced I/O and connectivity features
- Wide temperature range endurance: 0-60° C

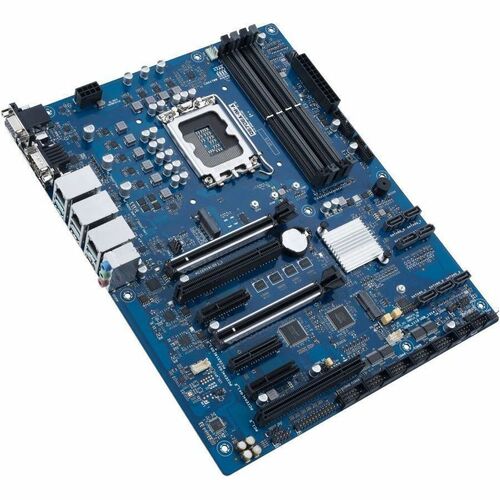

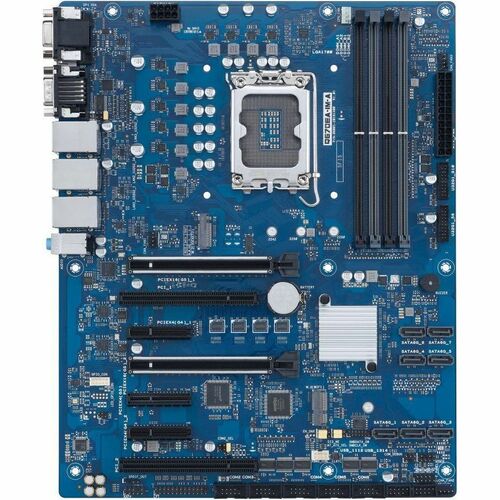

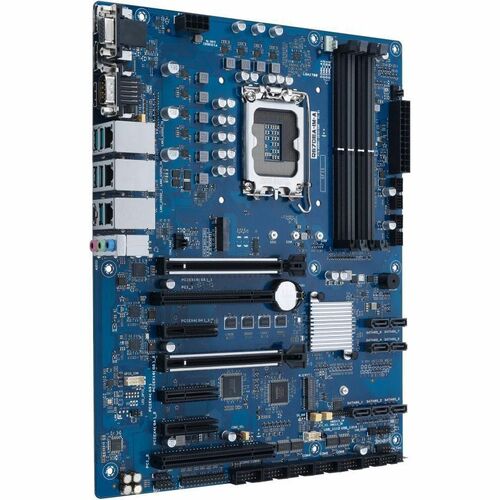

The ASUS Q670EA-IM-A is an ATX industrial motherboard featuring rich I/O capabilities and advanced connectivity. It offers multiple display outputs, legacy options for industrial applications, COM ports and three Intel LAN ports. And there is rich expandability with a PCIe slot, PCI slot, M.2 E key, and M.2 M key. This makes the ASUS Q670EA-IM-A an ideal choice for a wide range of embedded applications.
As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DDR5 SDRAM slot for convenient installation of memory
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
Technical Specifications
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | ATX |
| Video | |
| Onboard Video | CPU Dependent Video |
| I/O Expansions | |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 4 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 7 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| DisplayPort | Yes |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 4400 MHz |
| General Information | |
| Product Type | Industrial Motherboard |
| Manufacturer Part Number | 90ME06J0M0UCY0 |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | Q670EA-IM-A |
| Product Name | Q670EA-IM-A Industrial Motherboard |
| Brand Name | Asus |
| Processor & Chipset | |
| Processor Supported | Core i3 |
| Pentium | |
| Celeron | |
| Core i5 | |
| Core i7 | |
| Core | |
| Core i9 | |
| Processor Socket | Socket LGA-1700 |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670E |
| Processor Generation Supported | 12th Gen |
| 13th Gen | |
| 14th Gen |
