About the product

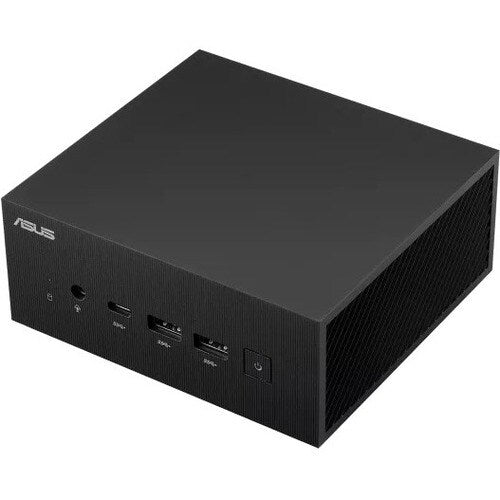

Ultra-compact mini PC with AMD Ryzen™ 5000H series processors and AMD Radeon ™ Graphics, supports Quad-4K displays and 8K resolution, 2x PCIe® Gen3 x4 M.2 NVMe® SSD, 2.5 Gb LAN, WiFi 6E
- Powered by the latest AMD Ryzen™ 5000H Series Processor with Radeon™ graphics
- Quad-4K displays support and 8K UHD support**

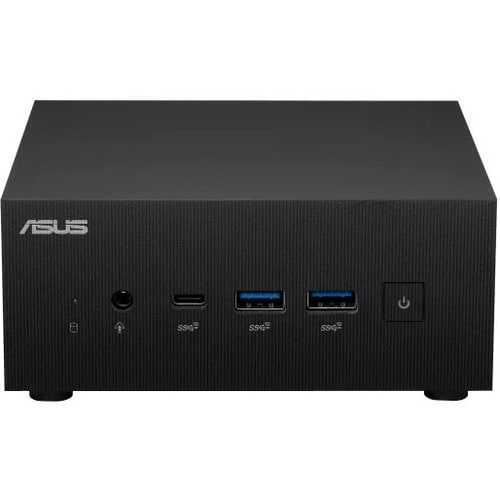

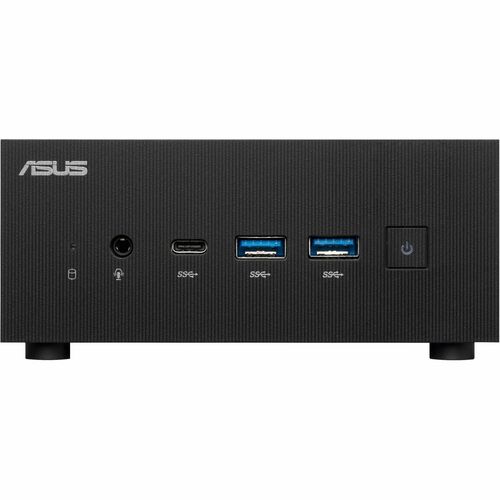

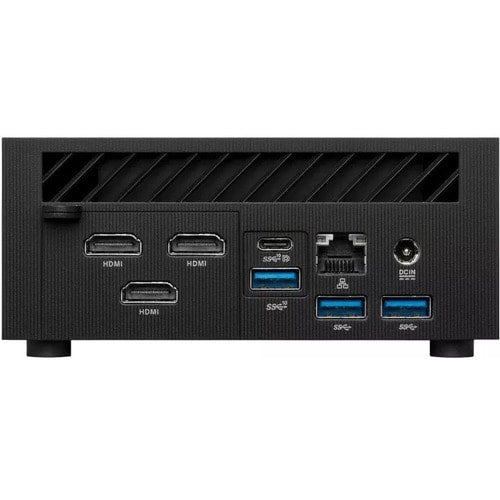

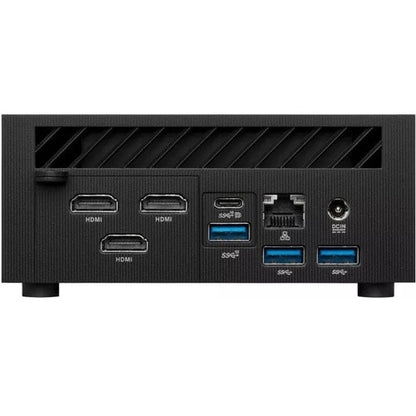

- Support 7 USB ports, including 2 x Type C ports, and on-board dual HDMI ports
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Military-grade durability: Adheres to the MIL-810H military standards for outstanding quality and reliability
- Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Multi-storage design, support up to up to 2x M.2 SSD and 1x HDD
- Integrated Wi-Fi 6E and Bluetooth for easy cordless connections

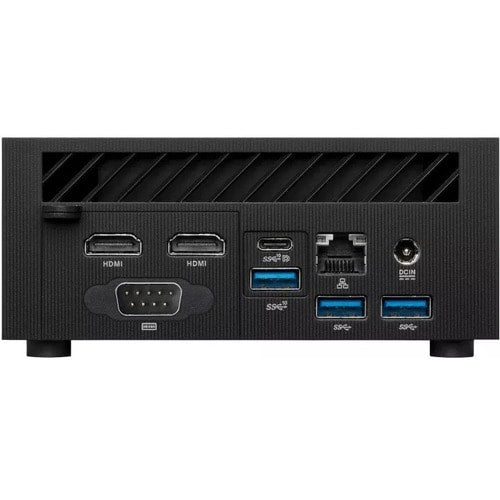

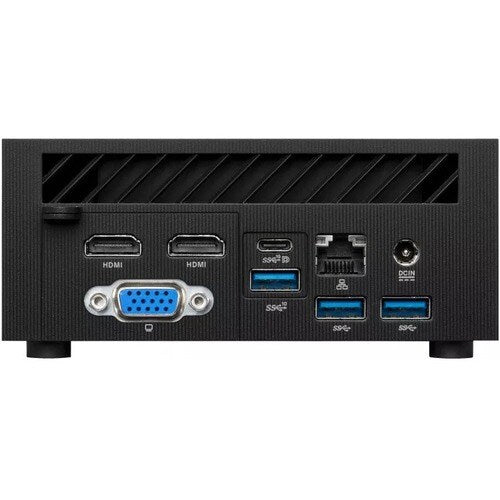

- Configurable Port supports DP1.4/VGA/2.5G LAN/COM/HDMI options
- 24/7 reliability - Extensively tested to ensure long-term dependability
ASUS ExpertCenter PN52 is powered by the latest AMD Ryzen™ 5000H series processor for smooth and powerful multitasking. In PCMark 10 and Cinebench benchmark testing, the Ryzen 5000H delivered a 17.4% boost in overall performance, and up to 23.4% improvement in singlethread computing performance compared to the previous generation processor.
Graphics Performance
ASUS ExpertCenter PN52 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 15% in 3DMark Fire Strike to 23.6% in the 3DMark Night Raid performance benchmarks.
4K Resolution & Quad Display Support

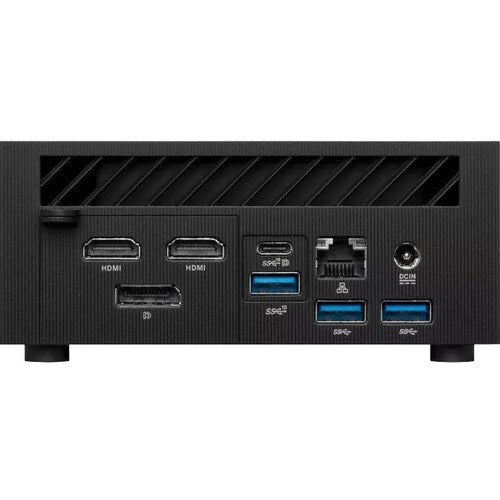

ASUS ExpertCenter PN52 can support up to four 4K displays via two HDMI® ports, DisplayPort™ over USB-C® or other user-configurable ports, without any limitation on the combination used.
Ultra-realistic 8K Visuals
ASUS ExpertCenter PN52 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that's 4X greater than 4K, or 16X that of traditional FHD output.
USB Power Delivery Input
ASUS ExpertCenter PN52 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.
Easy Upgrades
An easy-access underside panel allows users replace and upgrade memory, storage and the wireless card. All that's required is a screwdriver.
- Provides 7 USB ports for responsive and expanded device connections
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Serial ATA/600 interface provides quick data transfer and greater throughput
Technical Specifications
| Chipset | |
| Chipset Manufacturer | AMD |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Controllers | |
| Controller Type | NVMe |
| Serial ATA/600 | |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Operating System | |
| Operating System Supported | Windows 11 Home |
| Windows 11 Pro | |
| Display & Graphics | |
| Graphics Controller Model | Radeon Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Types | HDD |
| SSD | |
| Miscellaneous | |

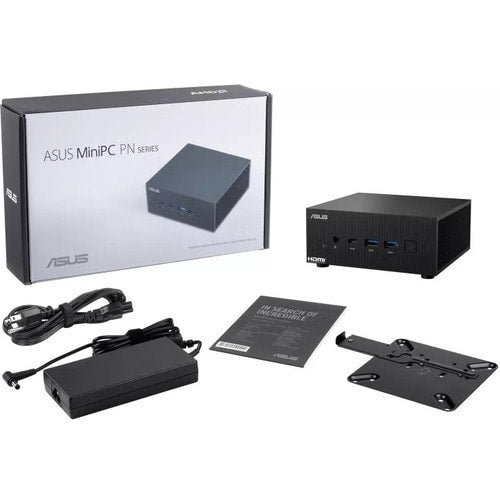

| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5.2 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 2.28" (58 mm) |
| Width | 4.72" (120 mm) |
| Depth | 5.12" (130 mm) |
| Product Color | Eco Black |
| Color Family | Black |
| Processor | |
| Processor Speed | 3.20 GHz |
| Processor Type | Ryzen 5 |
| Processor Model | 5600H |
| 64-bit Processing | Yes |
| Number of Processors Supported | 1 |
| Maximum Turbo Speed | 4.10 GHz |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | 90MR00R2M00130 |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | PN52-BB5000X1TD-NL |
| Product Name | ExpertCenter PN52-BB5000X1TD-NL Barebone System |
| Product Line | ExpertCenter |
| Product Series | PN52 |
| Brand Name | Asus |
| Interfaces/Ports | |
| Number of SATA Interfaces | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 7 |
| USB Type-C Detail | 1 x USB 3.2 Gen2 TypeC (w/ DP output & PowerDelivery input), 1 x USB 3.2 Gen1 Type C |
| HDMI (Rear) | Yes |
| USB Type-C (Front) | Yes |
| USB Type-C (Rear) | Yes |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 1 |
