Desktop Computers

Expected delivery 3 to 7 business days (exceptions applied)

Asus

PN64-BB7000X1TDR-NL I7-13700H 3.7GHZ 5.0GHZ VESA MOUNT DUAL NCNR

PN64-BB7000X1TDR-NL I7-13700H 3.7GHZ 5.0GHZ VESA MOUNT DUAL NCNR

Regular price $920.11 CAD
Regular price $1,030.53 CAD Sale price $920.11 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.

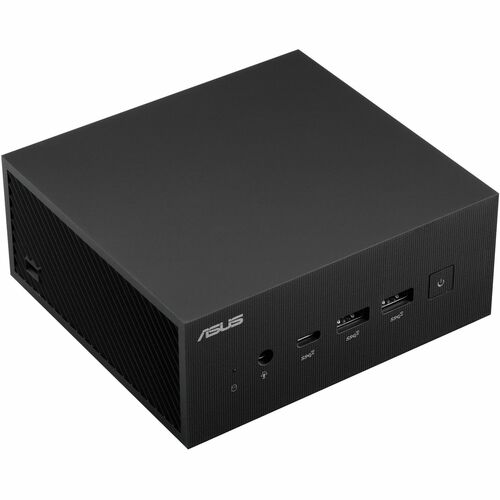

Asus ExpertCenter PN64-BB7000X1TDR-NL Barebone System - Mini PC - Core i7 13th Gen i7-13700H 3.70 GHz - Intel Chip - 64 GB DDR5 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - Serial ATA/600, NVMe Controller - Iris Xe Graphics Graphic(s) - IEEE 802.11ax - Network (RJ-45) - 1 M.2 Interface(s) - 1 SATA Interface(s) - 2.5 Gigabit Ethernet - Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise, Windows 10 Pro Supported Operating System

VPN:90MR00U2-M005S0SKU:AY7196CM UPC:197105318465

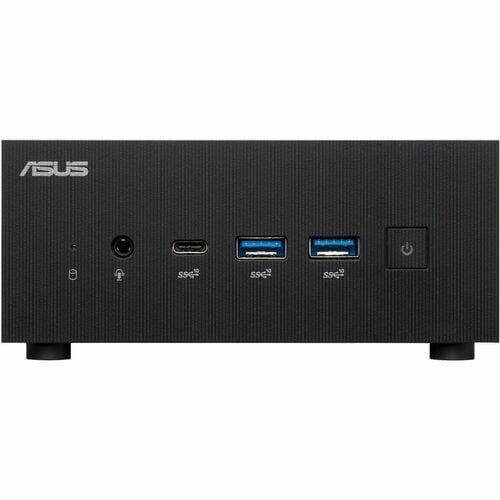

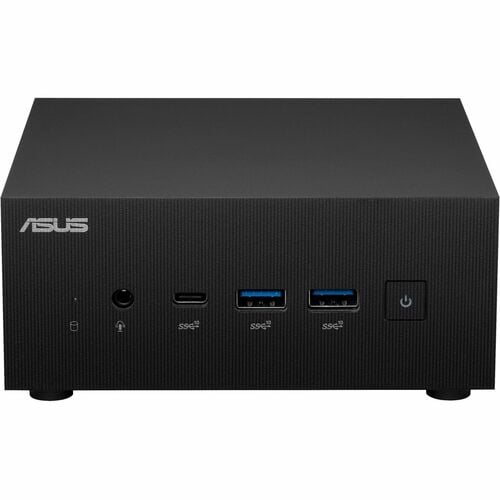

  • Provides 5 USB ports for responsive and expanded device connections
  • DDR5 SDRAM slot for convenient installation of memory
  • Serial ATA/600 interface provides quick data transfer and greater throughput

Volume discount available - Ask for quote..

View full details

Recently Viewed

PN64-BB7000X1TDR-NL I7-13700H 3.7GHZ 5.0GHZ VESA MOUNT DUAL NCNR

Product information summary

PN64-BB7000X1TDR-NL I7-13700H 3.7GHZ 5.0GHZ VESA MOUNT DUAL NCNR

About the product

Ultra-compact mini PC with 13th Gen Intel® Core™ processors and Intel® Iris® Xe Graphics, DDR5 RAM, PCIe® Gen 4 x4 M.2 NVMe® SSD, Intel® 2.5 Gb LAN, WiFi 6E

  • Powered by the latest Intel® 12th & 13th Generation Core™ processors
  • Whole new hybrid architecture design with powerful performance-cores and efficient-cores for improved multitasking, streaming experience and intelligent workload optimization.
  • DDR5-4800 memory support allows your computer to transfer data faster than DDR4
  • Support one PCIe Gen4x4 SSD to deliver greater performance and lower latency

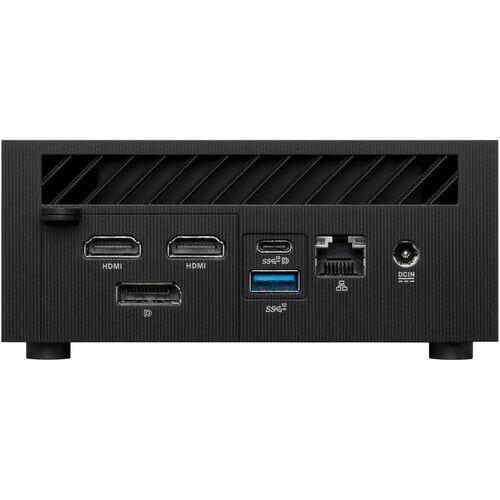

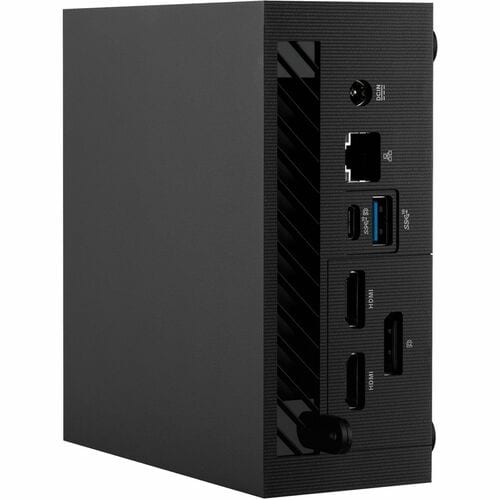

  • 4 display located in the rear I/O panel including dual HDMI 2.1 (Up to 4K@60Hz)
  • Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
  • Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
  • Onboard 2.5GbE LAN delivering faster Ethernet connectivity

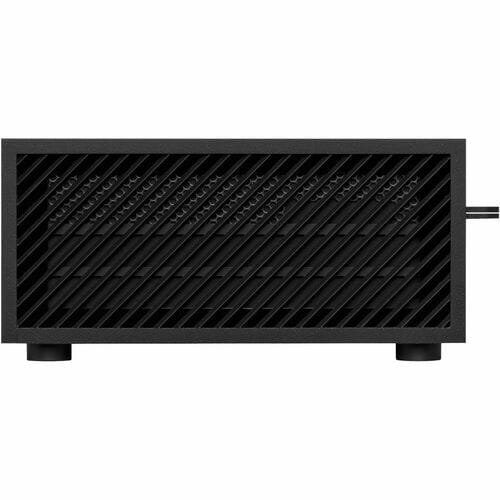

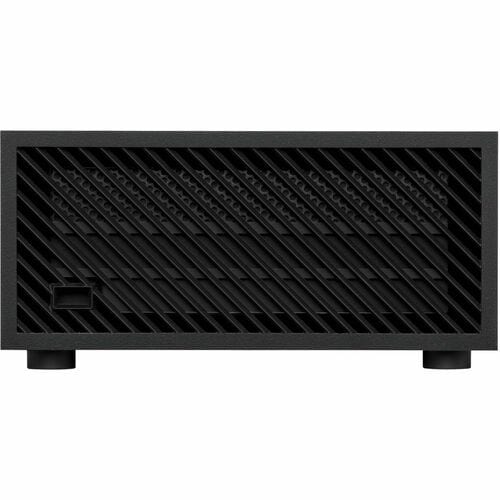

  • Advanced fan control to achieve better heat dissipation
  • 24/7 reliability - Extensively tested to ensure long-term dependability

New Processor Architecture Design

ASUS ExpertCenter PN64 is powered by the latest Intel® 12th & 13th Gen Intel® Core CPU featuring a new hybrid processor design. It includes performance-cores (P-cores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This new core design enables PN64 to process multiple tasks simultaneously in the most efficient way possible.

Superior Computing Performance

ASUS ExpertCenter PN64 is powered by the latest 13th Generation Intel® Processors which deliver superior performance for you to save you time and increase your ability to do the things you want. Comparing to previous generation, PN64 has 23% increase on overall system performance, and over 2 times increase for daily multitask computing. With such great improvement, it helps you process intensive business operations more efficiently.

Faster and better DDR5 RAM

ASUS ExpertCenter PN64 is powered by13th Gen Intel® Core CPU supporting the next gen memory - DDR5. Supporting DDR5 allows you to transfer data faster than DDR4. Comparing to DDR4, DDR5 memory modules bring a higher level of bandwidth and speed, it improves 34% faster on memory read and 37% on write. DDR5 helps you to drive greater performance and productivity.

Ultrafast PCIe® 4.0 SSD

ASUS ExpertCenter PN64 supports one PCIe® Gen 4 X4 SSD to deliver low-latency data transfers at speeds of up to 8 GB/s, that's twice the data transfer speeds of PCIe 3.0.

Superfast 2.5 Gbps Ethernet

ASUS ExpertCenter PN64 features next-generation 2.5GBASE-T technology for superfast 2.5 Gbps networking speeds, enabling it to make light work of the most data-intensive tasks.

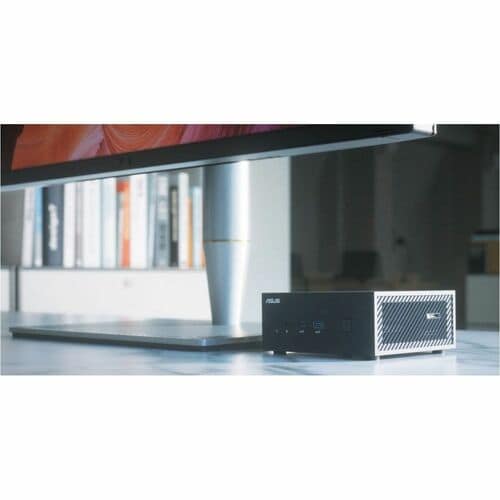

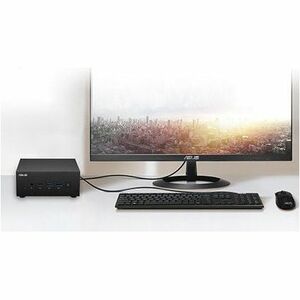

Modern, Space-saving Design

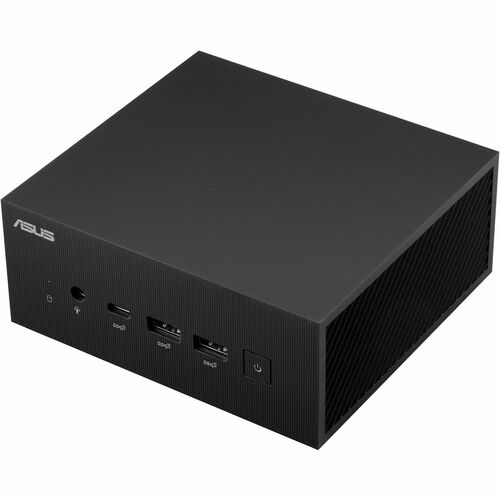

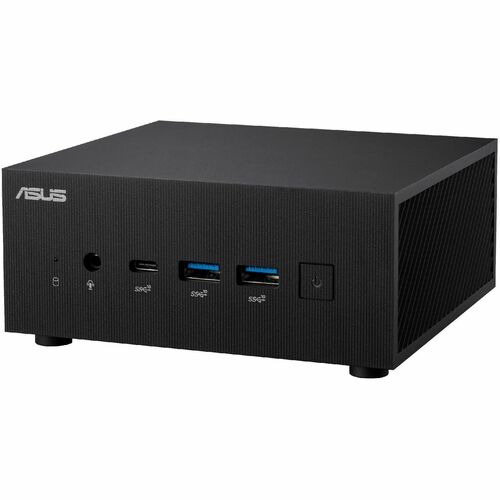

Compact and stylish, ASUS ExpertCenter PN64 has a contemporary look that suits any home or office

Ultra-realistic 8K Visuals

ASUS ExpertCenter PN64 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that's 4X greater than 4K, or 16X that of traditional FHD output.

  • Provides 5 USB ports for responsive and expanded device connections
  • DDR5 SDRAM slot for convenient installation of memory
  • Serial ATA/600 interface provides quick data transfer and greater throughput

Technical Specifications

Chipset
Chipset ManufacturerIntel
Power Description
Thermal Design Power35 W
Controllers
Controller TypeSerial ATA/600
NVMe
I/O Expansions
Number of Total Expansion Bays1
Number of M.2 Interfaces1
Display & Graphics
Graphics Controller ModelIris Xe Graphics
Graphics Memory TechnologyDDR5 SDRAM
Graphics Memory AccessibilityShared
Memory
Maximum Memory Supported64 GB
Memory TechnologyDDR5 SDRAM
Memory StandardDDR5-4800/PC5-38400
Miscellaneous
Package Contents
  • PN64-BB7000X1TDR-NL Barebone System
  • Power Adapter
Environmentally FriendlyYes
Energy StarYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Network & Communication
BluetoothYes
Wireless LANYes
Wireless LAN StandardIEEE 802.11ax
Ethernet Technology2.5 Gigabit Ethernet
Operating System
Operating System SupportedWindows 11 Pro
Windows 10 Pro
Windows 10 IoT Enterprise
Windows 11 Home
Storage
Supported Storage Drive InterfacesPCI Express NVMe 4.0 x4
Serial ATA III
Supported Storage Drive TypesHDD
SSD
Processor
Processor Speed3.70 GHz
Processor TypeCore i7
Processor Modeli7-13700H
64-bit ProcessingYes
Maximum Turbo Speed5 GHz
Processor Generation13th Gen
Physical Characteristics
Weight (Approximate)1.65 lb (750 g)
Form FactorMini PC
Height2.28" (58 mm)
Width4.72" (120 mm)
Depth5.12" (130 mm)
Product ColorEco Black
Color FamilyBlack
General Information
Product TypeBarebone System
Manufacturer Part Number90MR00U2-M005S0
Manufacturer Website Addresshttp://www.asus.com
ManufacturerASUS Computer International
Product ModelPN64-BB7000X1TDR-NL
Product NamePN64-BB7000X1TDR-NL Barebone System
Product LineExpertCenter
Product SeriesPN64
Brand NameAsus
Interfaces/Ports
Number of SATA Interfaces1
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Total Number of USB Ports5
USB Type-C Detail1 x USB 3.2 Gen2 TypeC (support DP1.4, PD), 1 x USB 3.2 Gen2 Type-C
HDMI (Rear)Yes
USB Type-C (Front)Yes
USB Type-C (Rear)Yes
Number of USB 3.2 Gen 2 Ports3
