About the product

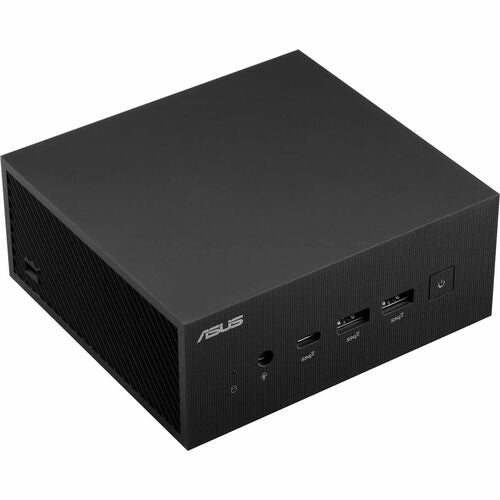

Ultra-compact mini PC with 12th Gen Intel® Core™ processors and Intel® Iris® Xe Graphics, DDR5 RAM, PCIe® Gen 4 x4 M.2 NVMe® SSD, Intel® 2.5 Gb LAN, WiFi 6E
- Powered by the latest Intel® 12th Generation Core™ processors
- Whole new hybrid architecture design with powerful performance-cores and efficient-cores for improved multitasking, streaming experience and intelligent workload optimization.
- DDR5-4800 memory support allows your computer to transfer data faster than DDR4
- Support one PCIe Gen4x4 SSD to deliver greater performance and lower latency

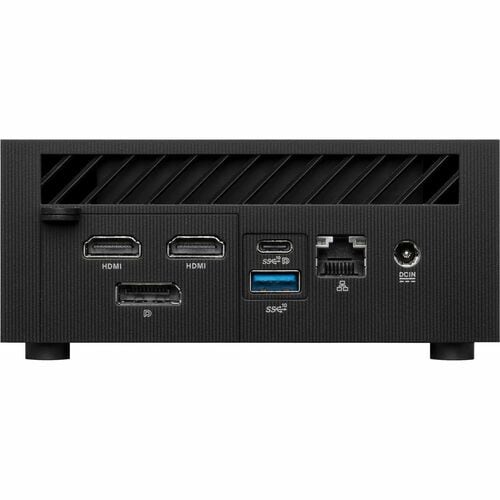

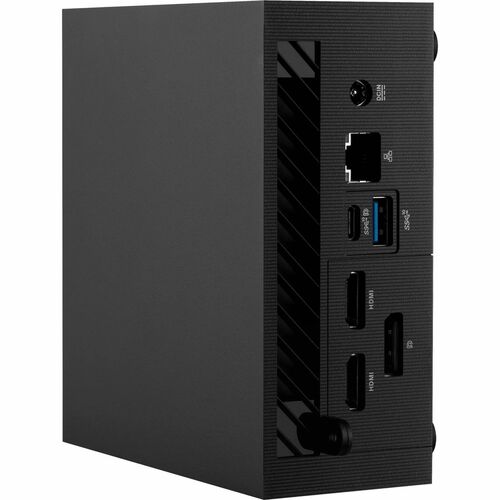

- 4 display located in the rear I/O panel including dual HDMI2.0
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity

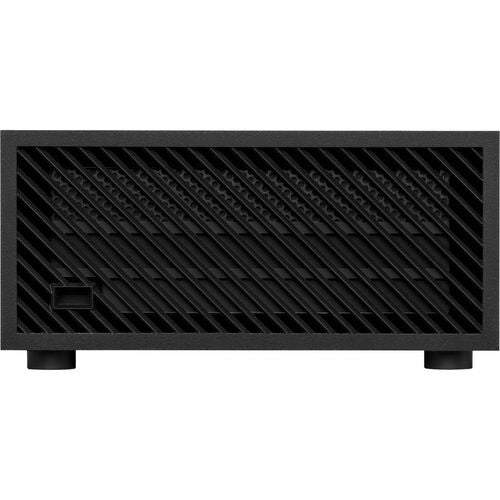

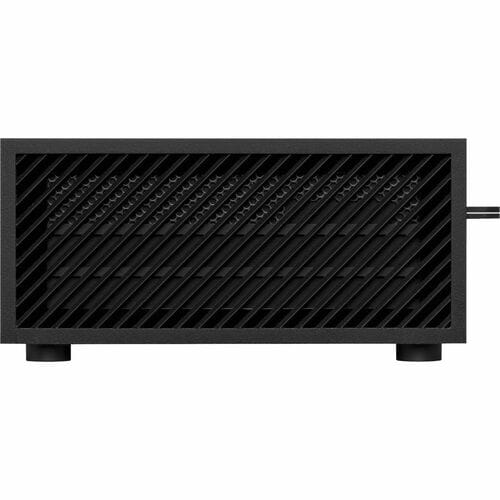

- Advanced fan control to achieve better heat dissipation
- 24/7 reliability - Extensively tested to ensure long-term dependability
New Processor Architecture Design
ASUS ExpertCenter PN64 is powered by the new 12th Gen Intel® Core™ CPU featuring a new hybrid processor design. It includes performance-cores (P-cores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This new core design enables PN64 to process multiple tasks simultaneously in the most efficient way possible.
Superior Computing Performance
ASUS ExpertCenter PN64 delivers superior performance, allowing users to get more done effortlessly, with greater efficiency. Compared to the previous generation PN63-S1 model, PN64 offers a 28% boost on overall system performance, making it perfect for multitasking.
Faster and better DDR5 RAM
ASUS ExpertCenter PN64 is powered by the new 12th Gen Intel® Core™ CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN64 provides excellent performance for daily computing tasks.
Ultrafast PCIe® 4.0 SSD
ASUS ExpertCenter PN64 supports one PCIe® Gen 4 X4 SSD to deliver low-latency data transfers at speeds of up to 8 GB/s, that's twice the data transfer speeds of PCIe 3.0.
Superfast 2.5 Gbps Ethernet
ASUS ExpertCenter PN64 features next-generation 2.5GBASE-T technology for superfast 2.5 Gbps networking speeds, enabling it to make light work of the most data-intensive tasks.

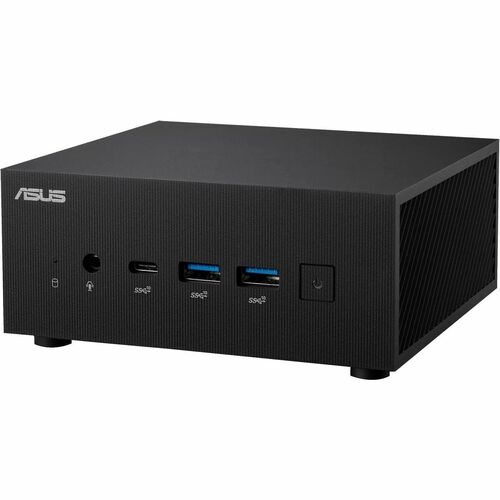

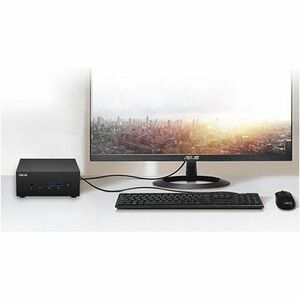

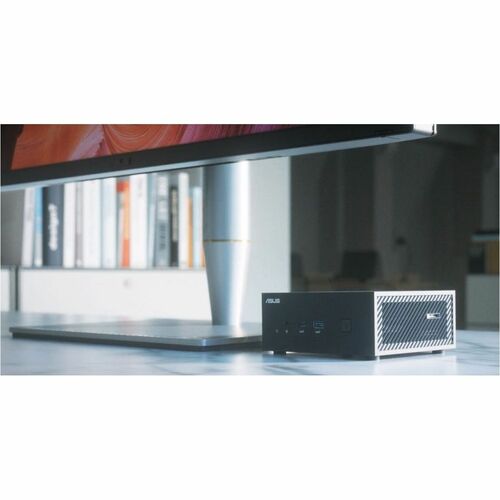

Modern, Space-saving Design
Compact and stylish, ASUS ExpertCenter PN64 has a contemporary look that suits any home or office.

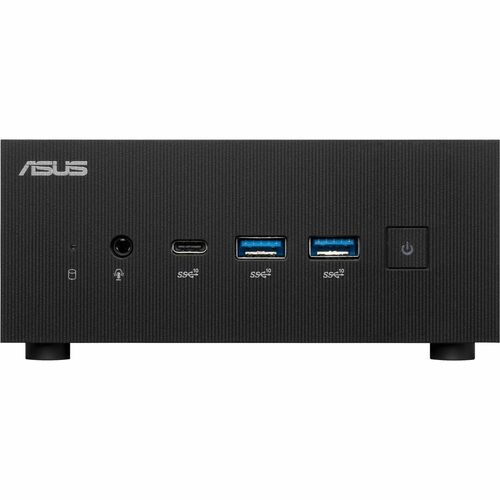

- Connect USB-enabled devices via 5 USB ports
- DDR5 SDRAM slot for convenient installation of memory
- With Serial ATA/600 interface get superb reliability and high-speed data transfer
- Intel Core i3 processor works smartly and well responsive to let you swiftly use multiple applications
Technical Specifications
| Chipset | |
| Chipset Manufacturer | Intel |
| Controllers | |
| Controller Type | Serial ATA/600 |
| I/O Expansions | |
| Number of M.2 Interfaces | 1 |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Display & Graphics | |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Operating System | |
| Operating System Supported | Windows 11 Pro |
| Windows 11 Home | |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Types | SSD |
| HDD | |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Processor | |
| Processor Supported | Core i3 |
| Core i5 | |
| Core i7 | |
| 64-bit Processing | Yes |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5.2 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Physical Characteristics | |
| Weight (Approximate) | 1.65 lb (750 g) |
| Form Factor | Mini PC |
| Height | 2.28" (58 mm) |
| Width | 4.72" (120 mm) |
| Depth | 5.12" (130 mm) |
| Product Color | Eco Black |
| Color Family | Black |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | 90MR00W2M00190 |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | PN64-E1-BB7V000X1TD-NL |
| Product Name | PN64-E1-BB7V000X1TD-NL Barebone System |
| Product Line | ExpertCenter |
| Product Series | PN64 |
| Brand Name | Asus |
| Interfaces/Ports | |
| Number of SATA Interfaces | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 5 |
| USB Type-C Detail | 1 x USB 3.2 Gen2 TypeC (support DP1.4, PD), 1 x USB 3.2 Gen2 Type-C |
| HDMI (Rear) | Yes |
| USB Type-C (Front) | Yes |
| USB Type-C (Rear) | Yes |
| Number of USB 3.2 Gen 2 Ports | 3 |
