About the product
Compact productivity magic

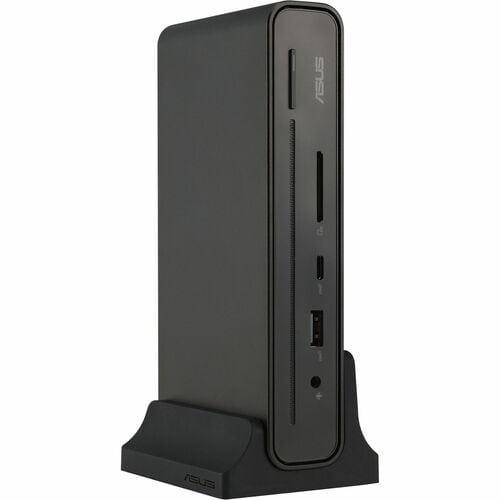

ASUS Triple Display USB-C Dock is a sleek, compact one-stop device that streamlines laptop connectivity. Power your laptop through a single cable, connect to your network and peripherals, and multitask with up to four monitors - including a laptop monitor and three external monitors. It also has an integrated SD card reader for a diverse array of business scenarios. Simply put, ASUS Triple Display USB-C Dock keeps your desk neat, tidy and organized while setting you up for work in the blink of an eye.
Ready for triple 4K displays
Connect up to three displays via HDMI®, DisplayPort™and USB-C®for expanded productivity and comfortable multitasking. ASUS Triple Display USB-C Dock even supports up to three 4K displays for exceptional visuals.
Connectivity | Connect up to 8 devices
ASUS Triple Display USB-C Dock has a multitude of I/O ports: three external screens can be connected via HDMI®, USB-C®and DisplayPort™, two USB 3.2 Gen 1 Type-A ports support a keyboard and mouse, and there's a USB-C®port, a USB Type-A port, an RJ45 network port, an audio jack for earphones, and a SD card reader for data transfers. That's a total of 12 functions.
Fast Transfers | Connect at super speeds
Enjoy 10 Gbps data-transfer speeds via convenient USB-C®and USB-A ports - up to 4x faster than USB 3.0 - so large files and folders can be moved or copied in moments.
High-speed Charging | Charge fast, charge in tandem
ASUS Triple Display USB-C Dock supports USB Power Delivery, providing up to 90 watts to rapidly charge almost any modern USB-C device, including the latest ultraportable notebooks. It also features a traditional USB Type-A port that delivers up to 12 watts, and a USB-C®port that delivers up to 15 watts.
- Up to 15W USB-C®charging output
- Up to 12W USB-A charging output
- Up to 90W USB-C®power delivery
Efficient Control | One-button wake-up and remote management
With ASUS Triple Display USB-C Dock, it takes just one tap to wake your laptop and all connected displays - because the dock's power button precisely mimics that of your laptop. It also enables IT departments to remotely wake laptops that are in standby modes to apply updates and more, helping speed up routine admin and maintenance tasks.
One-button wake up
Press the dock's power button to wake up your laptop and multiple connected monitors during standby mode.
Remote IT management
Enable IT management to update software with Wake-on-LAN (WoL) and PXE.
Clean and Tidy | Reduce desk clutter
ASUS Triple Display USB-C Dock's compact design and multi-modal stand empower you to reduce desktop clutter by corralling multiple cables and connections through one little package - empowering you to get to work in moments.
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Miscellaneous | |
| Package Contents |
|
| Kensington Security Slot | Yes |
| Power Description | |
| Maximum Power Supply Wattage | 150 W |
| Power Source Type | Power Adapter |
| Physical Characteristics | |
| Weight (Approximate) | 514 g |
| Height | 6.30" (160 mm) |
| Width | 3.15" (80 mm) |
| Depth | 1.26" (32 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | 90XB08CNBDS000 |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | DC300 |
| Product Name | DC300 Docking Station |
| Package Type | Retail |
| Brand Name | Asus |
| Technical Information | |
| Cable Length | 2.1 ft |
| Device Supported | Notebook/Monitor/Keyboard/Mouse |
| Connectivity Technology | Wired |
| Features | Power Delivery Pass-through |
| Charging Capability | Yes |
| Memory Card Supported | SD |
| Memory Card Reader | Yes |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Number of Displays Supported | 3 |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K |
| Management Features | PXE Boot |
| Wake-on-Dock Button | |
| Wake-on-LAN | |
| Security Slot Type | Kensington Security Slot |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| HDMI | Yes |
| HDMI Version | 2.0 |
| Number of HDMI Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Number of DisplayPorts | 1 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2 Type-C Upstream port for computer sideport (10Gbps / DP1.4 / output: up to 85W), 1 x USB 3.2 Gen2 Type-C port (10Gbps/PD-in 100W/5V/1.5A) |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 3 |
| Number of USB Type-A Ports | 3 |
| USB Power Delivery | 90W |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| USB Type-A | Yes |
