About the product

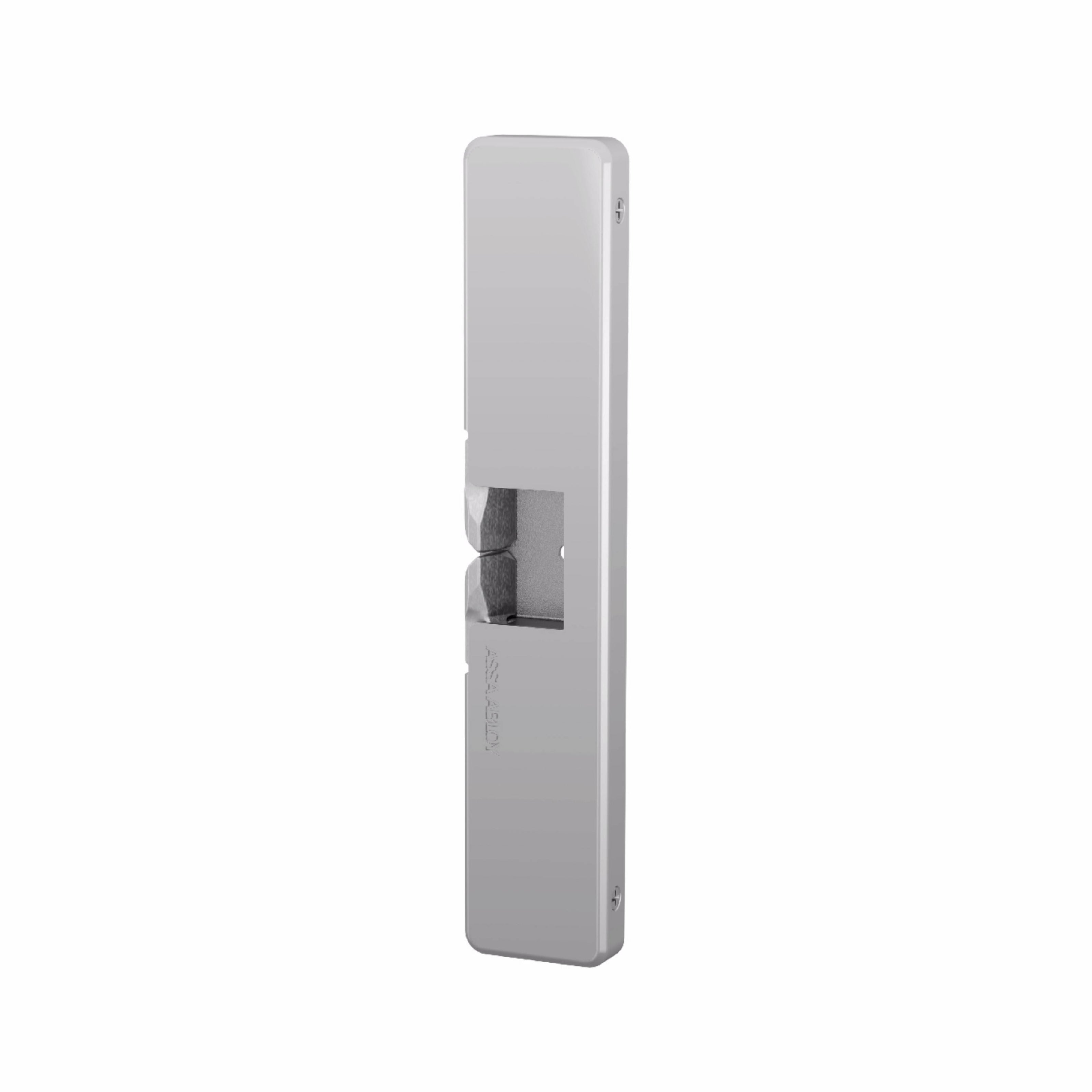

The HES 9400 series is a slim-line, outdoor-rated surface-mounted electric strike designed to accommodate rim exit devices with a 1/2"" Pullman latch. All components are completely encased within its 5/8"" thick stainless steel housing. No cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latch bolt, and install it. The HES 9400 ships with a 1/8"" spacer plate to accommodate varying door gaps. The HES 9400 exceeds Grade 1 standards for strength and performance. It is field selectable for fail secure/fail safe operation and for 12 or 24VDC. The HES 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.
HES 9400-12/24D-630 Surface Mount Electric Strike for 1/2"" Pullman Exit Device:
- Installs in metal and wood frames
- Completely surface-mounted
- One 1/8"" spacer plate included
- Decorative cover for a sleek new look
- Stainless steel construction
- Tamper-resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
- Horizontal adjustment
- Non-handed
- Internally mounted solenoid
- Accommodates up to 1/2"" Pullman latch
- Dual voltage 12 or 24 VDC
Technical Specifications
The HES 9400 series is a slim-line, outdoor-rated surface-mounted electric strike designed to accommodate rim exit devices with a 1/2"" Pullman latch. All components are completely encased within its 5/8"" thick stainless steel housing. No cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latch bolt, and install it. The HES 9400 ships with a 1/8"" spacer plate to accommodate varying door gaps. The HES 9400 exceeds Grade 1 standards for strength and performance. It is field selectable for fail secure/fail safe operation and for 12 or 24VDC. The HES 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.
HES 9400-12/24D-630 Surface Mount Electric Strike for 1/2"" Pullman Exit Device:
- Installs in metal and wood frames
- Completely surface-mounted
- One 1/8"" spacer plate included
- Decorative cover for a sleek new look
- Stainless steel construction
- Tamper-resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
- Horizontal adjustment
- Non-handed
- Internally mounted solenoid
- Accommodates up to 1/2"" Pullman latch
- Dual voltage 12 or 24 VDC
