About the product

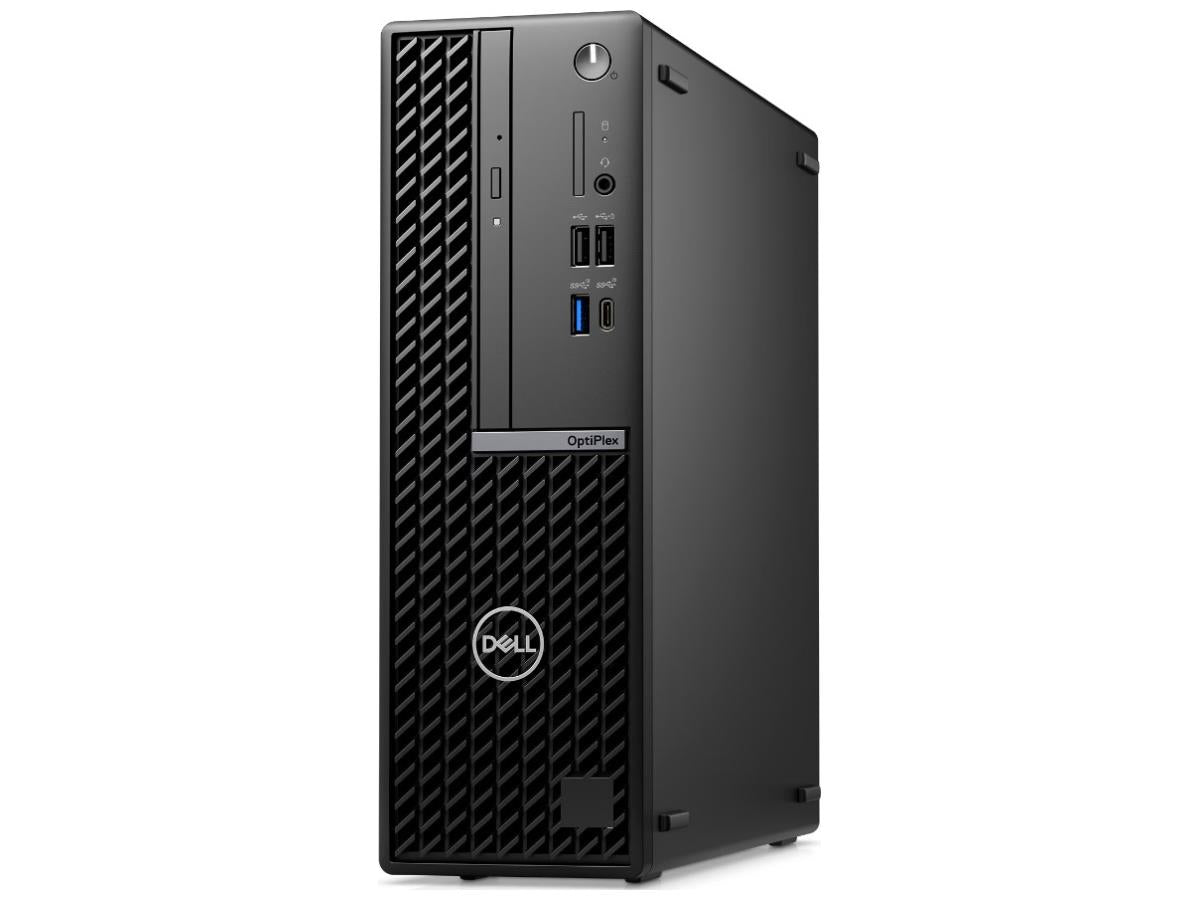

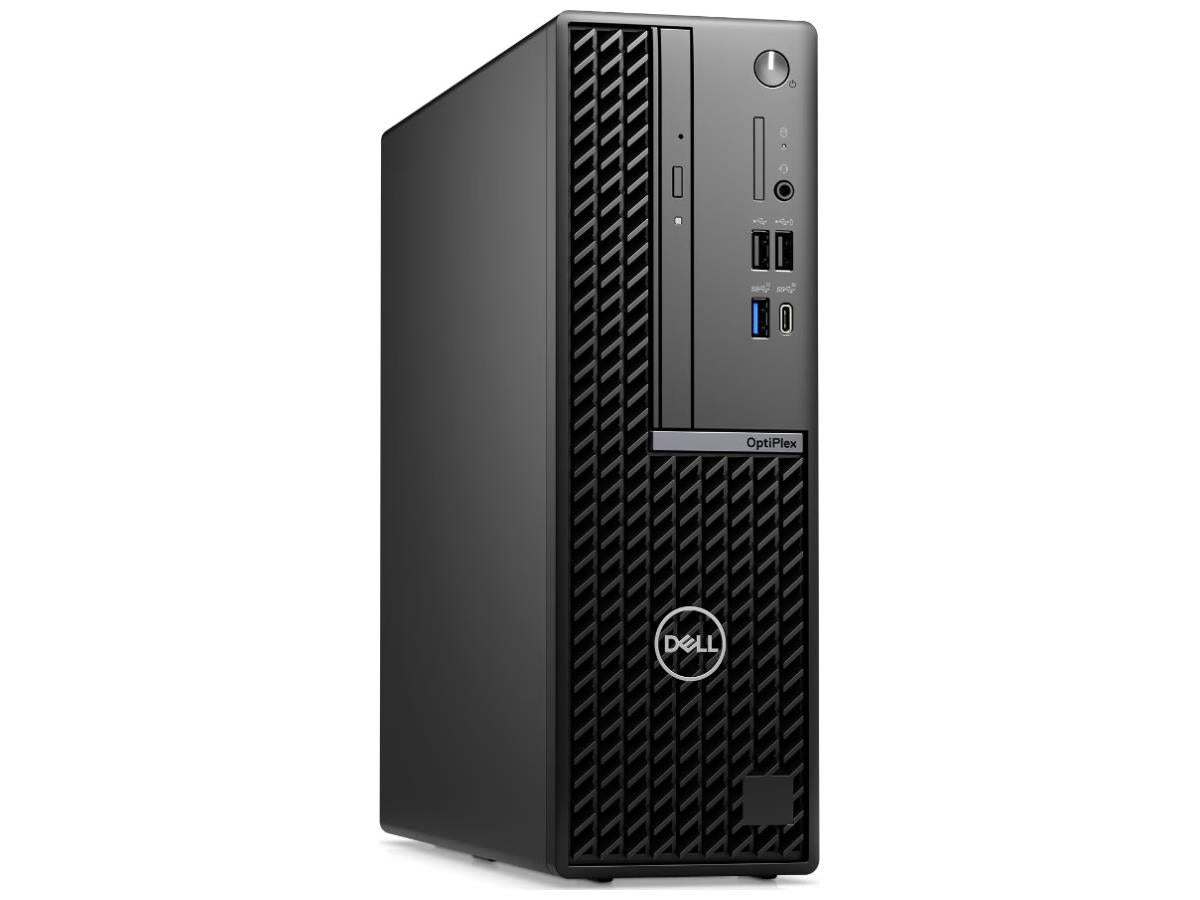

Optiplex Small Form Factor Plus 7020 - Intel - Core I5 -14500 - 14-Core - 5Ghz - Ddr5 - 16Gb Ram- 512Gb Ssd - 8X Dvd+/-Rw 9.5Mm Odd - Intel Uhd Graphics 770 - Power Supply - 260Watt - Gigabit Ethernet -Windows 11 Professional
Technical Specifications
| General | |
| Processor: | Intel Core i5 2.6GHz 4 Smart Cache 14500 Cache Memory 24MB Max Turbo 5GHz |
| RAM: | UDIMM DDR5 Total Installed 16GB Max Supported 128GB |
| Primary Information | |
| System Type: | Personal Computer |
| Model: | OptiPlex Small Form Factor Plus 7020 |
| Cabinet Form Factor: | Small Form Factor |
| Processor / Generation: | Intel 14th Generation |
| Processor / Type: | Core i5 |
| Processor / Manufacturer: | Intel |
| Multi-Core Technology: | 14-Core |
| Processor / Clock Speed: | 2.6 GHz |
| Cache Memory Installed Size: | 24 MB |
| Max Turbo Frequency: | 5 GHz |
| Processor / Number: | 14500 |
| Cache Memory Installed Size: | 24 MB |
| RAM / Installed Qty: | 2 |
| Mainboard / Chipset Type: | Intel Q670 |
| RAM / Technology: | DDR5 |
| RAM / Total Slots Qty: | 2 |
| RAM / Total Installed Size: | 16 GB |
| RAM Form Factor: | UDIMM |
| RAM / Max Supported Size: | 128 GB |
| Hard Drive / Type: | SSD |
| Hard Drive Capacity / HDD: | None GB |
| Hard Drive / Installed Qty: | None |
| Hard Drive / Interface Type: | PCIe NVMe |
| Hard Drive / Spindle Speed: | None RPM |
| SSD Capacity: | 512 GB |
| Optical Storage Type: | 8x DVD+/-RW 9.5mm ODD |
| Audio Output: | Line-out |
| Hard Drive / Capacity (2nd): | None GB |
| Data Link Protocol: | Gigabit Ethernet |
| Video Output Type: | DisplayPort |
| Graphics Controller: | Intel UHD Graphics 770 |
| Max Monitors Supported: | 4 |
| Video Output Interface: | Display Port |
| Input Device Support Type: | Keyboard, Mouse |
| Keyboard Language: | English |
| Keyboard: | Dell Pro Wireless Keyboard and Mouse - KM5221W Black |
| Mouse: | Mouse included with Keyboard |
| Operating System: | Microsoft Windows 11 Pro |
| Power / Device Type: | Power Supply |
| Power / Provided (W): | 260 Watt |
| Interfaces & Connections: | 1 USB 2.0 (480 Mbps) port;1 USB 2.0 (480 Mbps) port with PowerShare;1 USB 3.2 Gen 2 (10 Gbps) port;1 USB 3.2 Gen 2x2 (20 Gbps) Type-C port ;1 Universal audio jack;2 USB 2.0 (480 Mbps) ports with SmartPower On;3 USB 3.2 Gen 1 (5 Gbps) ports;1 USB 3.2 Gen 2 (10 Gbps) port;1 USB 3.2 Gen 2 (10 Gbps) Type-A Port;3 DisplayPort 1.4a Ports;1 Retaskable line-in/line-out audio port;1 RJ-45 Ethernet Port 10/100/1000 Mbps;1 Video Ports |

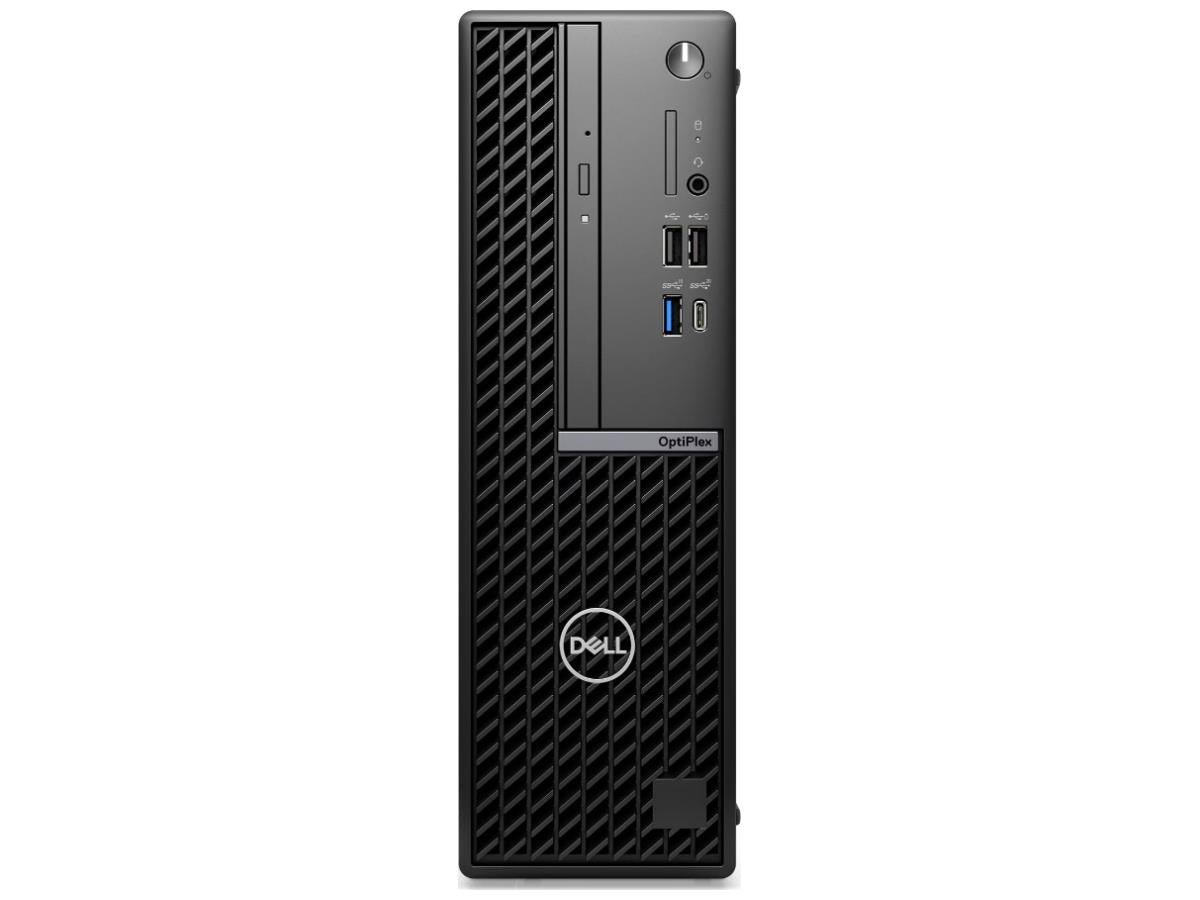

| Front I/O Ports: | 1 USB 2.0 (480 Mbps) port;1 USB 2.0 (480 Mbps) port with PowerShare;1 USB 3.2 Gen 2 (10 Gbps) port;1 USB 3.2 Gen 2x2 (20 Gbps) Type-C port ;1 Universal audio jack |

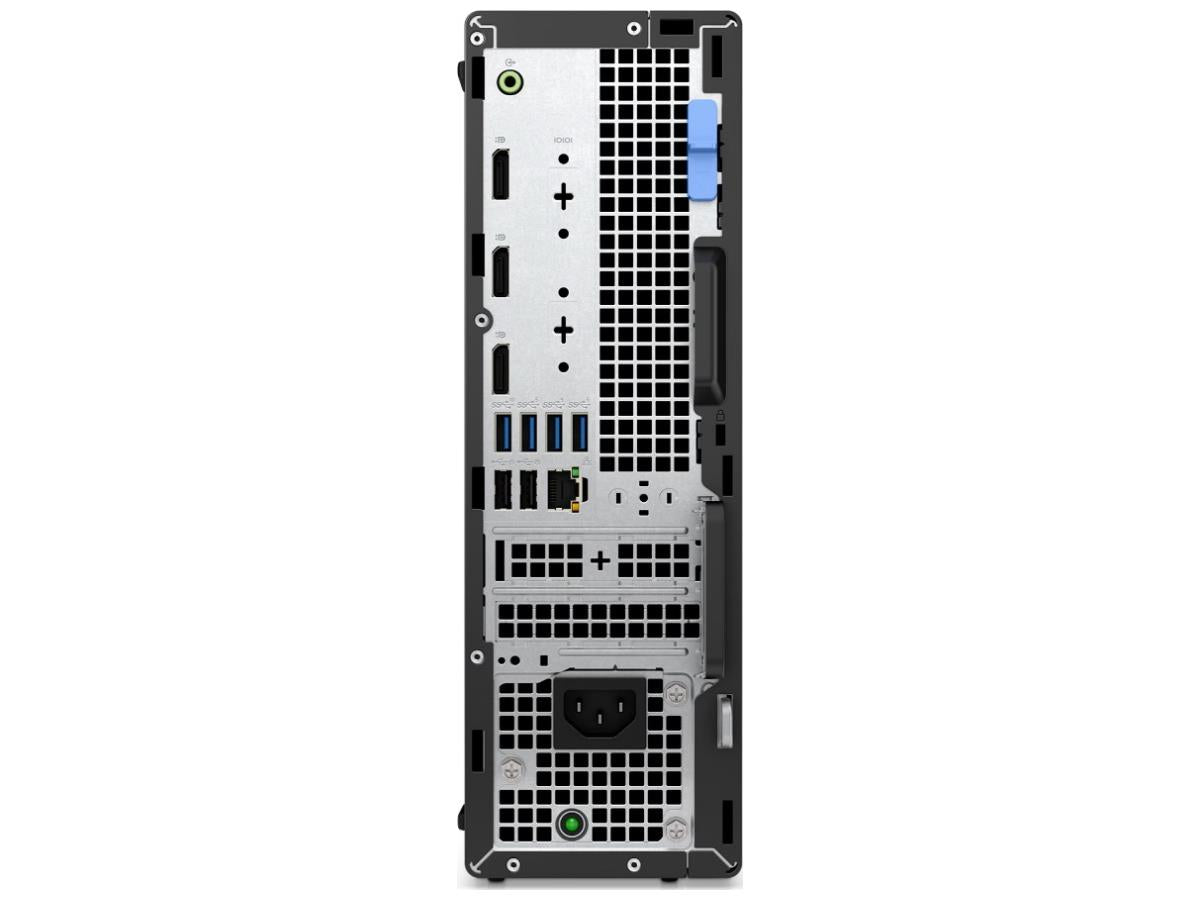

| Rear I/O Ports: | 2 USB 2.0 ;3 USB 3.2 Gen 1 (5 Gbps) Type-A Ports;1 USB 3.2 Gen 2 (10 Gbps) Type-A Port;3 DisplayPort 1.4a Ports;1 Retaskable line-in/line-out audio port;1 RJ-45 Ethernet Port 10/100/1000 Mbps;1 Video Port |
| Width: | 92.6 Mm |
| Depth: | 292.8 Mm |
| Height: | 290 Mm |
| Enclosure Color: | Black |
| Stand: | None |
| Memory | |
| Cache Memory Type: | Smart Cache |
| RAM / Installed Qty: | 2 |
| RAM / Total Slots Qty: | 2 |
| RAM / Technology: | DDR5 |
| RAM / Total Installed Size: | 16 GB |
| RAM Form Factor: | UDIMM |
| RAM / Max Supported Size: | 128 GB |
| Green Product Information | |
| Energy Star Compliant: | Yes |
| Processor | |
| Processor / Generation: | Intel 14th Generation |
| Processor / Type: | Core i5 |
| Processor / Manufacturer: | Intel |
| Multi-Core Technology: | 14-Core |
| Processor / Clock Speed: | 2.6 GHz |
| Max Turbo Frequency: | 5 GHz |
| Processor / Number: | 14500 |
| Cache Memory Type: | Smart Cache |
| Cache Memory Installed Size: | 24 MB |
| Storage | |
| Hard Drive / Type: | SSD |
| Hard Drive Capacity / HDD: | None GB |
| Hard Drive / Installed Qty: | None |
| Hard Drive / Interface Type: | PCIe NVMe |
| Hard Drive / Spindle Speed: | None RPM |
| SSD Capacity: | 512 GB |
| Optical Storage Type: | 8x DVD+/-RW 9.5mm ODD |
| Hard Drive / Capacity (2nd): | None GB |
| Expansion | |
| Interfaces & Connections: | 1 USB 2.0 (480 Mbps) port;1 USB 2.0 (480 Mbps) port with PowerShare;1 USB 3.2 Gen 2 (10 Gbps) port;1 USB 3.2 Gen 2x2 (20 Gbps) Type-C port ;1 Universal audio jack;2 USB 2.0 (480 Mbps) ports with SmartPower On;3 USB 3.2 Gen 1 (5 Gbps) ports;1 USB 3.2 Gen 2 (10 Gbps) port;1 USB 3.2 Gen 2 (10 Gbps) Type-A Port;3 DisplayPort 1.4a Ports;1 Retaskable line-in/line-out audio port;1 RJ-45 Ethernet Port 10/100/1000 Mbps;1 Video Ports |
| Front I/O Ports: | 1 USB 2.0 (480 Mbps) port;1 USB 2.0 (480 Mbps) port with PowerShare;1 USB 3.2 Gen 2 (10 Gbps) port;1 USB 3.2 Gen 2x2 (20 Gbps) Type-C port ;1 Universal audio jack |
| Rear I/O Ports: | 2 USB 2.0 ;3 USB 3.2 Gen 1 (5 Gbps) Type-A Ports;1 USB 3.2 Gen 2 (10 Gbps) Type-A Port;3 DisplayPort 1.4a Ports;1 Retaskable line-in/line-out audio port;1 RJ-45 Ethernet Port 10/100/1000 Mbps;1 Video Port |
