About the product
The 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4"" throw latch. All components are completely encased within its 3/4"" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC. The 9600 was the first surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.

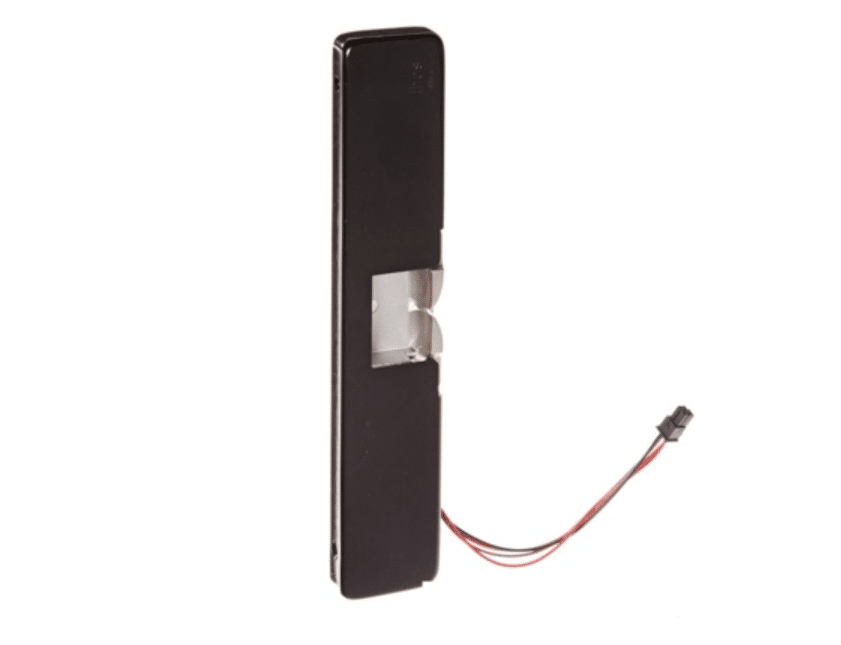

HES 9600 Series Surface Electric Strike For Rim Exit, Bronze Toned Features:
- Installs in metal or wood frames
- Separate base and decorative cover for easy adjustments
- Stainless steel construction
- Static strength to 2,000 lbs.
- Dynamic strength to 120 ft-lbs.
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
- Dual voltage 12 or 24VDC
- Non-handed. Horizontal adjustability
- Five year limited warranty
HES 9600 Series Surface Electric Strike For Rim Exit, Bronze Toned Specifications:
- Listings and Patents
- UL listed to ANSI 250.13 severe windstorm listed
- Florida Building Code Approved (FL#14307)
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 (6th edition) listed
- ANSI/BHMA A156.31 Grade 1
- RoHS compliant
- Patent: 6,392,520
- Frame Application
- Metal
- Wood
- Electrical (continuous duty)
- .45 Amps @ 12 VDC
- .26 Amps @ 24VDC
- PoE friendly
Technical Specifications
The 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4"" throw latch. All components are completely encased within its 3/4"" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC. The 9600 was the first surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.
HES 9600 Series Surface Electric Strike For Rim Exit, Bronze Toned Features:
- Installs in metal or wood frames
- Separate base and decorative cover for easy adjustments
- Stainless steel construction
- Static strength to 2,000 lbs.
- Dynamic strength to 120 ft-lbs.
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
- Dual voltage 12 or 24VDC
- Non-handed. Horizontal adjustability
- Five year limited warranty
HES 9600 Series Surface Electric Strike For Rim Exit, Bronze Toned Specifications:
- Listings and Patents
- UL listed to ANSI 250.13 severe windstorm listed
- Florida Building Code Approved (FL#14307)
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 (6th edition) listed
- ANSI/BHMA A156.31 Grade 1
- RoHS compliant
- Patent: 6,392,520
- Frame Application
- Metal
- Wood
- Electrical (continuous duty)
- .45 Amps @ 12 VDC
- .26 Amps @ 24VDC
- PoE friendly
