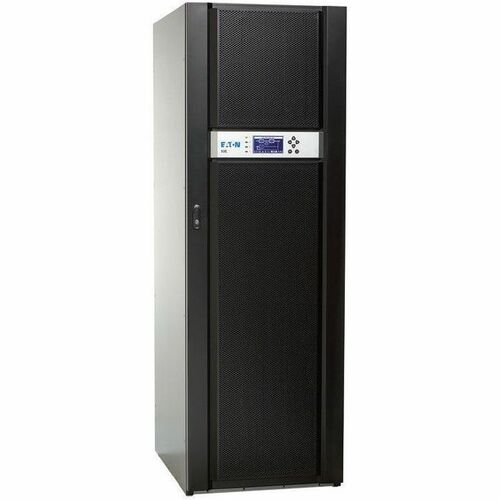

Eaton 93E 40KVA Tower UPS - 10 Minute Stand-by - 120 V AC, 230 V AC In
Eaton 93E 40KVA Tower UPS - 10 Minute Stand-by - 120 V AC, 230 V AC In
VPN:9EG04GG03001003 SKU:RSC758495 UPC:
Please see below description
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details
Recently Viewed
Eaton 93E 40KVA Tower UPS - 10 Minute Stand-by - 120 V AC, 230 V AC In
Product information summary

About the product
The Eaton® 93E UPS gives IT managers an easy way to manage the power in their data center, without having to worry about cost, space or downtime. Developed specifically for IT managers, the 93E confronts typical data center problems head on. It addresses ROI, energy costs, remote management, and efficiency, giving you more time to focus on other important data center issues.
Lower operating costs through energy-efficient performance
- Delivers up to 98 percent efficiency
- Up to 7 percent more efficient than competitive units
- Qualifies for local utility rebates and incentives
Maximum runtime using internal batteries
- Delivers up to 21 minutes of runtime
- Delivers up to 138 minutes of runtime when paired with Extended Battery Cabinets (EBC)
- Allows you to scale up as you grow
- Provides greater runtime at lower costs
Detachable maintenance bypass options guarantee zero downtime
- Allows you to redirect power during UPS maintenance and servicing
- Reduces repair time and costs
Occupy less floor space with a compact footprint
- Up to 35 percent smaller than similar competitive solutions
- Allows dedication of more floor space to revenue-producing equipment
- Industry-leading runtimes mean fewer accessories
Lowest total cost of ownership
The 93E is the clear choice if you're seeking to maximize your return on investment (ROI). Delivering the lowest TCO of any UPS in its class, the 93E offers a unique blend of energy, space and installation savings. The 93E can decrease your TCO by more than $85,000 over its 12-year lifespan when compared to current competitive offerings.
Energy-efficient design
The 93E is capable of achieving up to a 98 percent efficiency rating, making it one of the most energy-efficient UPSs in its class - and it still provides maximum load protection. Unlike most high-efficiency UPSs, the 93E:
- Provides surge suppression for the load
- Detects the location of faults (utility or load) and takes the appropriate action
- Switches to double-conversion operation in less than 4 ms
The 93E will save more than $71,292 in electricity and cooling costs over the life of the product when compared to a 60 kVA UPS operating at 91 percent efficiency.
Technical Specifications
Controls/Indicators | |
Status Indicators | 4 x LEDs for notice and alarm |
Display & Graphics | |
Display | LCD |
Environmental Conditions | |
Maximum Operating Temperature | 86°F (30°C) |
Sound Emission (A-Weighted) | 64 dB(A) |
Interfaces/Ports | |
Serial Port | Yes |
EPO Port | Yes |
Miscellaneous | |
Environmentally Friendly | Yes |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Battery Information | |
Battery Chemistry | Lead Acid |
Battery Capacity | 9000 mAh |
Backup/Run Time (Full Load) | 10 Minute |
Battery Characteristics | Maintenance-free/Sealed |
Replaceable Battery | Yes |
Physical Characteristics | |
Weight (Approximate) | 679.98 kg |
Height | 74.90" (1902.46 mm) |
Width | 23.60" (599.44 mm) |
Depth | 31.50" (800.10 mm) |
Product Color | Black |
General Information | |
Product Type | Double Conversion Online UPS |
Manufacturer Part Number | 9EG04GG03001003 |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Name | 93E 40KVA Tower UPS |
Product Series | 93E |
Brand Name | Eaton |
Power Description | |
Input Voltage | 230 V AC |
120 V AC | |
Output Voltage | 220 V AC |
208 V AC | |
Input Frequency | 60 Hz |
Load Capacity (VA) | 40 kVA |
Load Capacity (Watt) | 32 kW |
Technical Information | |
Application/Usage | Medical Equipment |
Mission Critical Equipment | |
Network | |
Server | |
Switch | |
Telecommunication | |
Banking | |
Data Center | |
Infrastructure | |
Overload Protection | Yes |
Plug/Connector Type | Hard Wire 4-wire |
