About the product

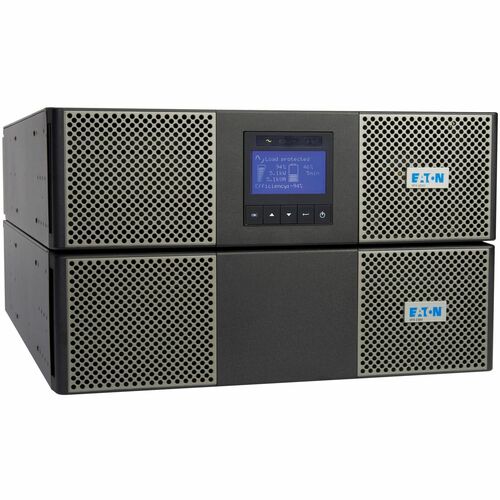

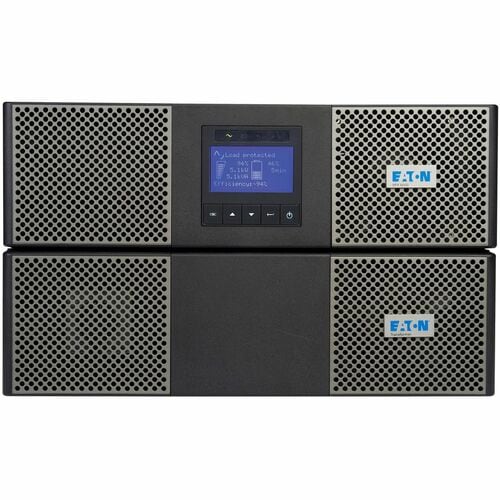

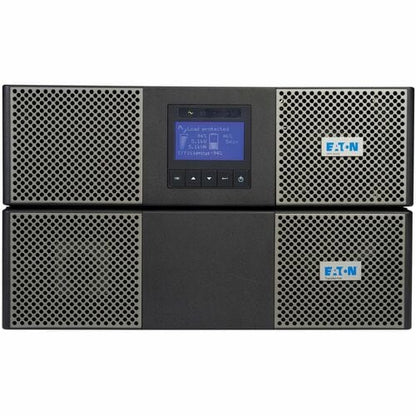

The Eaton 9PX is a proven, best-in-class online double-conversion rackmount/tower UPS. The 9PX UPS features ABM technology, which extends battery service life up to 50 percent, and offers flexibility in battery types with nine models offering lithium-ion batteries. Select 9PX UPS models are bundled with theEaton Gigabit Network card, the first in the industry to comply with both UL and IEC cybersecurity standards. To complete your backup power solution, pair your 9PX with the Brightlayer Data Centers suitefor seamless management of your connected equipment.
Applications: IT, edge networks, medical/healthcare, universities, K-12, industrial automation, harsh electrical environments.
- Prevent critical data loss by staying powered during a blackout with up to 3 kW load capacity
- 3 kVA load capacity provides sufficient backup during power failures
- Up to 7 minute runtime on full load to preserve critical data from power shortage interruptions
Technical Specifications
| Management | |
| Network Management | Network-M3 Card |
| SNMP/Web | |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Energy Star | Yes |

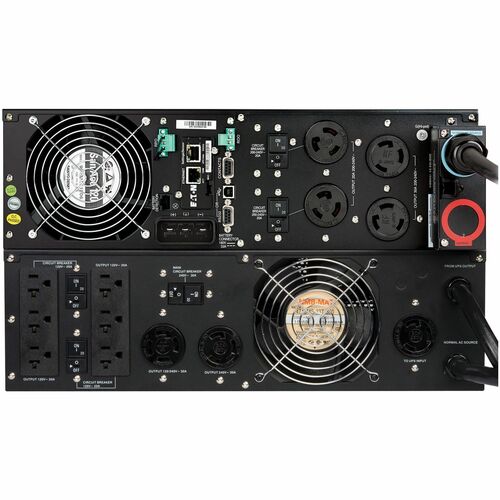

| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Number of USB Ports | 1 |
| Serial Port | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 19 Minute |
| Backup/Run Time (Full Load) | 7 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 203 lb (92079.25 g) |
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| Height | 10.20" (259.08 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 28.40" (721.36 mm) |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | 9PX3K3UNP1 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | 9PX3K3UNP1 |
| Product Name | 9PX3K3UNP1 3000VA Rack/Tower UPS |
| Product Series | 9PX |
| Brand Name | Eaton |
| Technical Information | |
| Application/Usage | Equipment |
| Healthcare | |
| Industrial Automation System | |
| IT | |
| Medical | |
| Network | |
| University | |
| Data Center | |
| Edge Computing | |
| Plug/Connector Type | NEMA L6-30P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA L14-30R |
| NEMA 5-20R | |
| NEMA L6-30R | |
| Receptacle Detail | 1 x NEMA L6-30R |
| 6 x NEMA 5-20R | |
| 1 x NEMA L14-30R | |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 200 V AC |
| 208 V AC | |
| 220 V AC | |
| 230 V AC | |
| 240 V AC | |
| 127 V AC | |
| 100 V AC | |
| 115 V AC | |
| 120 V AC | |
| Waveform Type | True Sine Wave |
| Output Frequency | 60 Hz |
| 50 Hz | |
| Input Frequency | 60 Hz |
| 40 Hz | |
| 70 Hz | |
| 50 Hz | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Output Power Factor | 1 |
