About the product
Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime

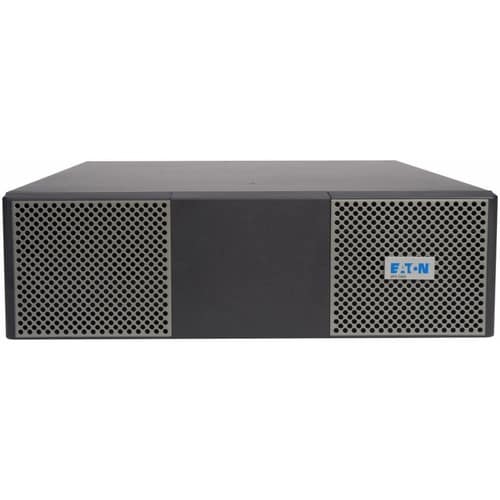

The valve regulated lead acid 9PXEBM360SP offers extended battery runtime when used in conjunction with Eaton's 9PX8KSP and 9PX10KSP split-phase 9PX UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Versatile Installation Options
You can mount the 9PXEBM360SP in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands.
- Connects to expandable Eaton 8kVA to 10kVA 9PX UPS systems to add critical runtime

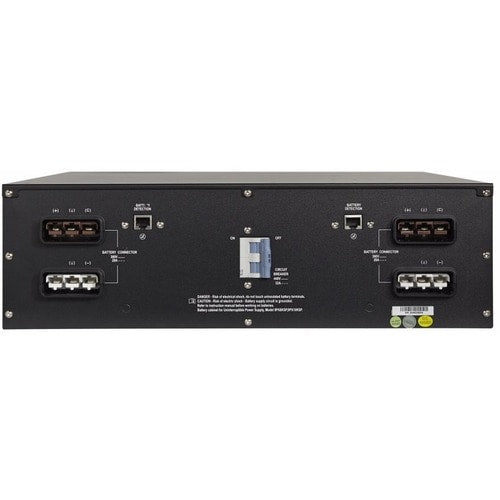

- Includes heavy-gauge battery cabling with high-current 360V DC connectors
- Daisy-chain connector supports additional battery packs for even longer runtime
Technical Specifications
| Miscellaneous | |
| Compatibility | Eaton UPS:
|
| Country of Origin | Philippines |
| Technical Information | |
| Battery Chemistry | Lead Acid |
| Output Voltage | 360 V DC |
| Physical Characteristics | |
| Weight (Approximate) | 162.90 lb (73890.20 g) |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.10" (129.54 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 25.90" (657.86 mm) |
| General Information | |
| Product Type | External Battery Pack |
| Manufacturer Part Number | 9PXEBM360SP |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | 9PX Extended Battery Module (EBM) |
| Product Series | 9PX |
| Brand Name | Eaton |
