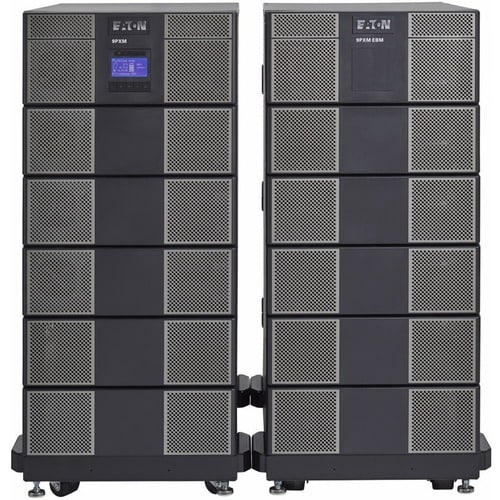

Eaton Power Array Cabinet - 120 V AC, 230 V AC - External

12-Slot Battery Cabinet Gives Your 9PXM UPS System Extended Runtime

This external enclosure connects to a compatible Eaton 9PXM UPS system to provide long-lasting battery backup for colocation and edge data centers, as well as industrial/commercial applications, including retail, financial, government and education. In addition to battery backup and extended runtime, the 9PXM12SEBM-C can also connect in parallel configuration with up to three more cabinets for even longer extended-run operation.

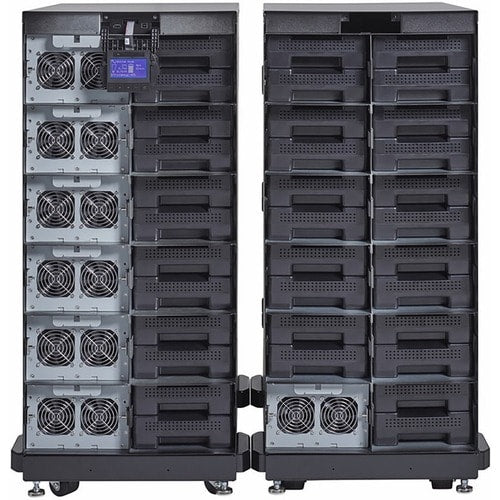

Houses up to 24 Battery Cartridges

The 9PXM12SEBM-C accommodates up to 24 9PXMBAT battery cartridges (two per slot, sold separately). The valve regulated lead acid (VRLA) internal battery cartridges are hot-swappable, allowing you to install them without powering down any connected equipment.
Enhanced Diagnostics and Communication Capabilities

This smart battery enclosure features connected intelligence with 9PXM UPS systems. It automatically detects when new battery cartridges are installed and automatically updates runtime, so you won't have to interact with the 9PXM's LCD panel. A 120V connection is required to power connectivity when the 9PXM12SEBM-C is not on battery power.
Versatile Installation Options

You can install the 9PXM12SEBM-C in 21U of space in an EIA-standard 19-inch rack using the optional rackmount kit (9PXMRK2, sold separately). Leveling feet and a caster tray are included for secure floor installation.
TAA-Compliant for GSA Schedule Purchases

The 9PXM12SEBM-C is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
