About the product

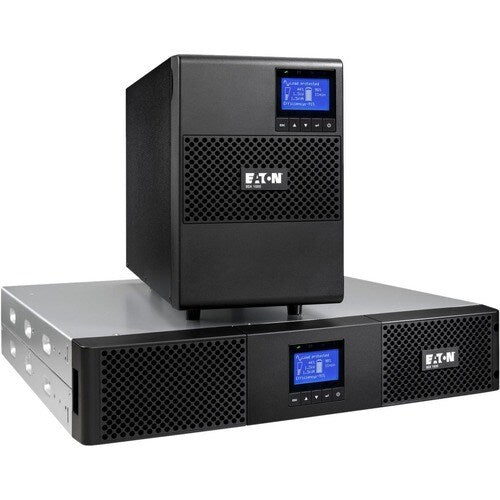

Online double conversion UPS
Successor of Eaton 9130 UPS
Performance and Availability
Successor of Eaton 9130 UPS
Performance and Availability
- Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.
- The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for
- easy replacement of the UPS without powering down critical systems.
- With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.
- Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.
- The new graphical LCD provides clear information on the UPS's status and measurements on a single screen. Enhanced
- configuration capabilities are also available.
- The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton's Intelligent Power® Software.
- Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.
- 9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton's Intelligent Power® Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.
- One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.
- More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.
- 3 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 2.70 kW load capacity
Technical Specifications
| Environmental Conditions | |
| Sound Emission | 45 dB |
| Maximum Operating Temperature | 104°F (40°C) |
| Interfaces/Ports | |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Capacity | 9000 mAh |
| Battery Characteristics | Sealed |
| Physical Characteristics | |
| Weight (Approximate) | 33.40 kg |
| Height | 13.62" (346 mm) |
| Width | 8.43" (214 mm) |
| Depth | 16.22" (412 mm) |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | 9SX3000IM |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | 9SX |
| Product Name | Eaton 9SX 3kVA UPS |
| Brand Name | Eaton |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Voltage Range | 120 V AC - 276 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Technical Information | |
| Application/Usage | Data Storage |
| Industrial Equipment | |
| Telecommunication | |
| Network Equipment | |
| Medical | |
| IT Equipment | |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 8 x IEC 60320 C13 |
| 1 x IEC 60320 C19 |
